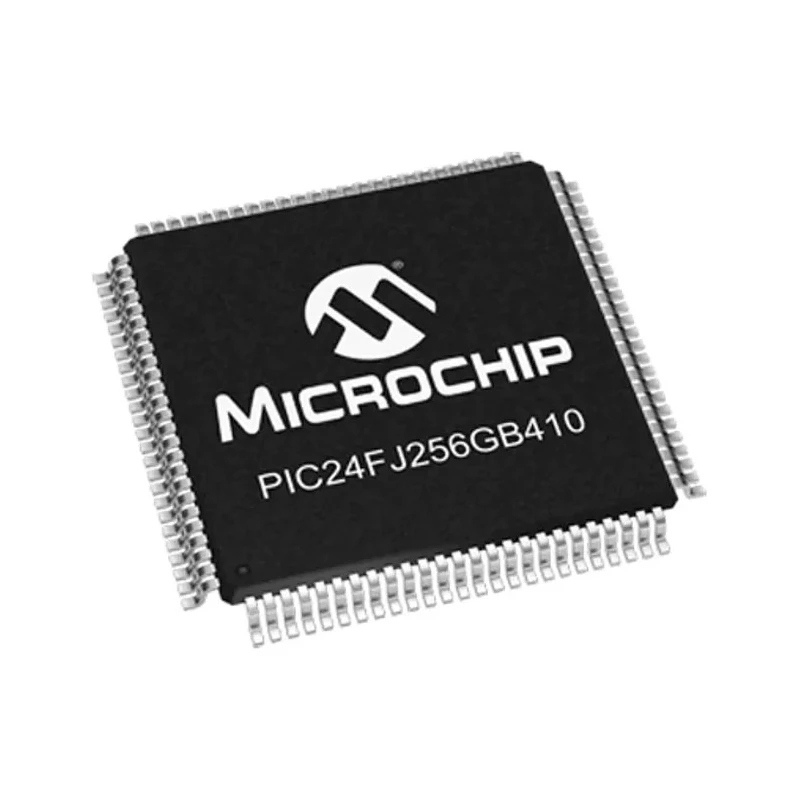

Microchip 16-Bit PIC Microcontroller PIC24FJ, 32 MHz, 256kB FLASH, 100-Pin TQFP

Microchip PIC24FJ256GB410-I/PT is a high-performance 16-bit PIC microcontroller operating at 32 MHz with 256kB FLASH memory and 16kB RAM. It features a modified Harvard architecture designed for efficient instruction execution and peripheral integration suitable for embedded systems.

This microcontroller supports a dual partition flash memory with live update capability allowing simultaneous programming of one partition while executing the other, making it ideal for applications requiring secure data transfer and storage.

Its peripheral set includes a 10-bit DAC, 24 ADC channels (10/12 Bit), three analogue comparators, and a cryptographic engine that supports AES and DES encryption standards. This significantly enhances security and data encryption without CPU overhead.

Designed for low power operation, it includes eXtreme Low Power (XLP) features with multiple power management options and alternate clock modes that reduce consumption in deep sleep to as low as 60 nA.

Other notable peripherals consist of five 16-bit timers/counters, six input captures, six output compare/PWM modules, an LCD display controller, USB On-The-Go interface, and a peripheral pin select for flexible I/O mapping.

Operating voltage ranges from 2.2V to 3.6V, and it performs reliably across temperatures from -40°C to +85°C. Packaged in a 100-pin TQFP for surface mounting, it is suitable for industrial, communication, and consumer electronic applications.

Its cryptographic engine supports standard encryption/decryption modes including ECB, CBC, OFB, CTR, and CFB128, enhancing security for embedded systems requiring data integrity and confidentiality.

This microcontroller is RoHS compliant and offers automotive grade robustness except it is not automotive certified. Operates with a modified Harvard architecture providing up to 16 MIPS at 32 MHz. Includes 256kB of FLASH program memory and 16kB RAM size for efficient processing.

Features an on-chip Cryptographic Engine supporting AES and DES standards. Integrated peripherals include multiple ADC channels and a 10-bit DAC. Operates over a voltage range of 2.2V to 3.6V with extended temperature ranges from -40°C to 85°C.

Equipped with 100-pin TQFP package supporting surface mount technology. Low power consumption with eXtreme Low Power (XLP) features enabling deep sleep currents as low as 60 nA. Supports dual partition flash for holding two independent software applications.

Provides multiple timers, comparators, and DMA channels for versatile embedded control applications. Explore more Microcontrollers and embedded components in the Electronics & Electricals category at EnvMart.
