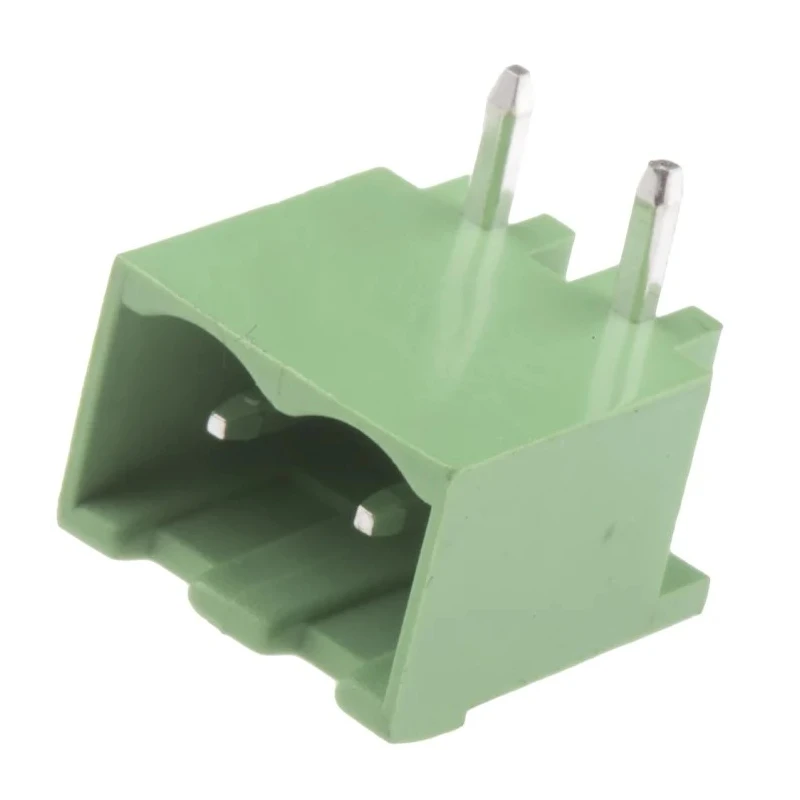

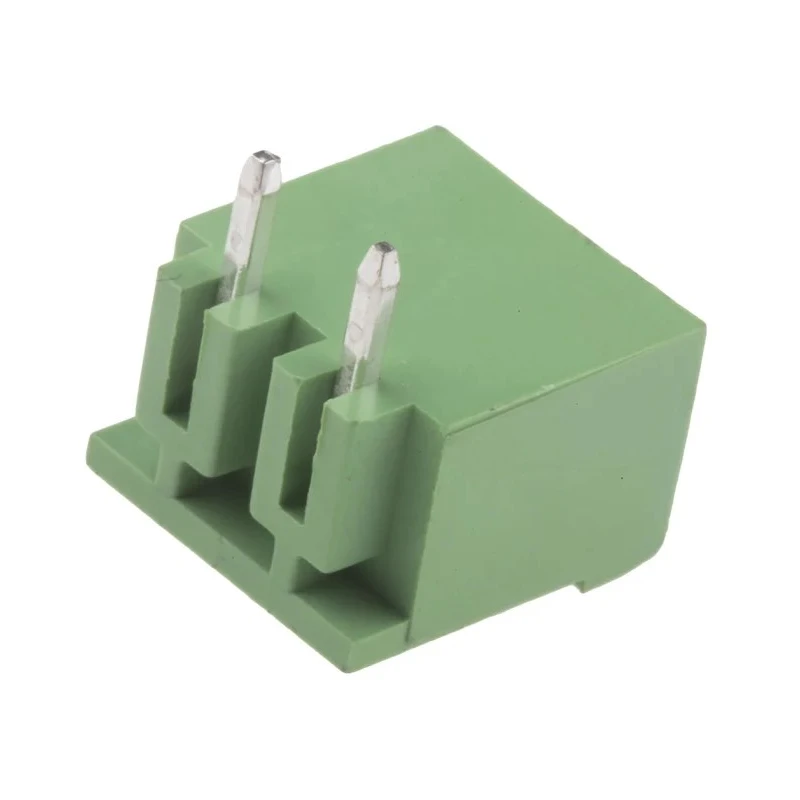

RS PRO Pluggable Terminal Block 2-Contact 5.08 mm Pitch 1 Row 300V 15A CTB9359

The RS PRO CTB9359 Series Pluggable Terminal Block is a 2-contact, 5.08 mm pitch, single row terminal block designed for secure and efficient electrical connections on printed circuit boards (PCBs). Manufactured with a green polyamide housing, it provides durable insulation and mechanical stability ideal for electronic components integration.

This terminal block features a right angle orientation making it practical for space-constrained PCB layouts. It supports a current rating of 15 A and a voltage rating of 300 V, suitable for a broad range of electronic applications including industrial automation, control panels, and electronic instrumentation.

The terminal pins are tin-plated brass, offering excellent conductivity with high resistance to rust and corrosion, thus ensuring long-lasting performance and reliability. It accommodates wire sizes ranging from 0.33 mm² (22 AWG) up to 2 mm² (14 AWG), connected through secure solder termination, making assembly straightforward and robust.

Designed to comply with Restriction of Hazardous Substances (RoHS) standards, this terminal block minimizes environmental impact by limiting hazardous substances content. It also offers good insulation resistance of 1000 MΩ and contact resistance of 20 mΩ, which contribute to low electrical losses and improved safety.

The compact dimensions of 11.4 mm length, 12.1 mm width, and 8.3 mm depth make this a space-efficient solution for electronic component assemblies. Its operating temperature range from -40°C to +105°C allows it to perform reliably in diverse industrial and commercial environments.

Right angle body orientation for efficient PCB mounting. Green polyamide material housing for electrical insulation and durability. Rated for 15 A current and 300 V voltage for versatile applications. Tin-plated brass contacts provide corrosion resistance and electrical conductivity.

Supports wire sizes from 0.33 mm² to 2 mm² (22 to 14 AWG). Solder termination method ensures secure electrical connection. Compliance with RoHS regulations for environmental safety. Insulation resistance of 1000 MΩ and contact resistance of 20 mΩ.

Compact dimensions suitable for space-limited PCB designs. Wide operating temperature range from -40°C to +105°C.

This RS PRO Pluggable Terminal Block is well suited for use in electronics manufacturing, laboratory equipment, industrial automation, HVAC systems, and other applications that require reliable PCB connections. It offers engineers and assemblers a robust, safe, and compliant solution for diverse electrical connectivity needs.
