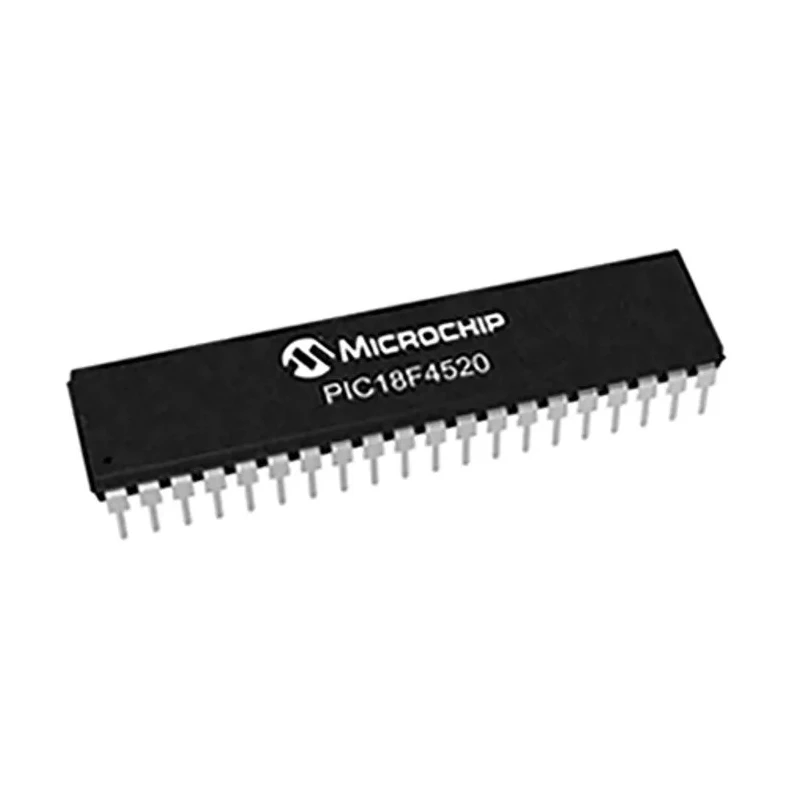

Microchip 8-bit PIC18F4520 Microcontroller 40 MHz 32kB FLASH 40-Pin PDIP PIC18F4520-E/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 53.21mm |
| Model | PIC18F4520-E/P |
| Width | 14.73mm |
| Mount Type | Through Hole |
| Series | PIC18F4520 |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.54kB |
| Interface Type | SPI |
| Standards/Approvals | RoHS |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 22 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 32kB |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum clock frequency of 40 MHz for high-speed processing.
- Features 32kB of flash program memory and 1.54kB of RAM for efficient code execution.
- Includes 22 programmable I/O pins and 13 channels of 10-bit ADCs for versatile interfacing.
- Supports SPI interface and advanced peripherals suitable for industrial and embedded systems.
- Operates reliably in temperatures ranging from -40°C to 125°C, suitable for harsh environments.
- Includes multiple timers, watchdog and brown-out reset features enhancing system stability.
- Packaged in a 40-pin PDIP for through-hole mounting in prototyping and development.
- Energy-efficient nanoWatt technology reduces power consumption for battery-powered devices.
Product Description
Microchip PIC18F4520-E/P is a high-performance 8-bit PIC microcontroller featuring a 40 MHz maximum CPU speed and 32kB of flash memory. This device is designed to meet the demands of embedded applications requiring both processing speed and extensive memory capacity.
The microcontroller has a versatile 40-pin PDIP package with through-hole mount type, making it suitable for prototyping and development environments. It boasts 22 programmable I/O pins and a 13-channel 10-bit ADC to support diverse sensor inputs and control signals.
Operating voltage ranges from 2V to 5.5V with a maximum power dissipation of 1W ensure compatibility with varied power sources while maintaining low power consumption using nanoWatt technology. The device includes multiple timers, comparators, and communication modules such as SPI and EUSART for flexible system integration.
The wide operating temperature range from -40°C to 125°C ensures reliable operation in harsh industrial and automotive conditions. The microcontroller's RISC architecture supports 75 instructions with up to 10 MIPS throughput, enhancing program efficiency and execution speed.
Maximum 40 MHz CPU clock frequency for fast processing. 32kB FLASH memory provides ample code storage. NanoWatt technology for low power consumption applications. 13 channel 10-bit ADC allows precise analog measurements.
Multiple timers and communication peripherals enhance functionality. Robust operating temperature range suits industrial environments. 40-pin PDIP package suitable for through-hole PCB mounting. Comprehensive reset and watchdog features improve system stability.
This Microchip microcontroller is ideal for industrial control, automotive embedded systems, consumer electronics, and other applications demanding reliable, high-speed 8-bit processing with extensive peripheral integration. Explore our semiconductor category for more Microcontroller options at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz, allowing for high-speed processing capabilities.
It features 32kB of FLASH program memory, providing ample storage for code execution.
This microcontroller includes 22 programmable I/O pins for versatile interfacing with various devices.
It operates reliably in temperatures ranging from -40°C to 125°C, making it suitable for harsh environments.
This model supports SPI interface, enhancing its compatibility with various communication protocols.
It has a RAM size of 1.54kB, which aids in efficient code execution.
The PIC18F4520 is packaged in a 40-pin PDIP, suitable for through-hole mounting in prototyping and development.
It includes 13 channels of 10-bit ADCs, allowing for precise analog measurements.
The maximum supply voltage for this microcontroller is 5.5V, ensuring compatibility with various power sources.
The dimensions are 53.21mm in length, 14.73mm in width, and 4.95mm in height.
This model includes 4 timers, which enhance its functionality for various applications.
It complies with RoHS standards, ensuring it meets environmental regulations.
