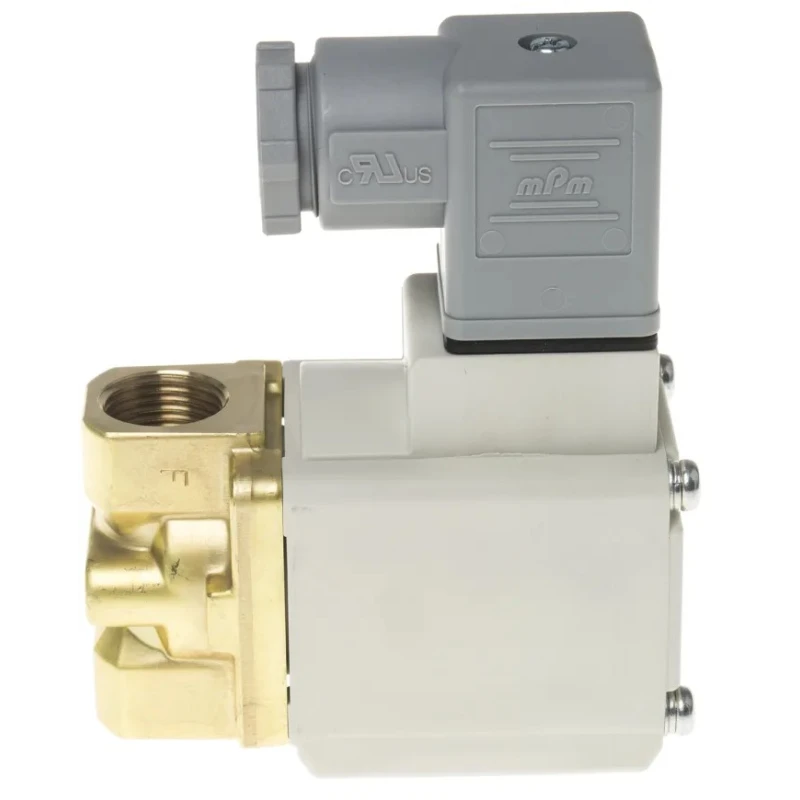

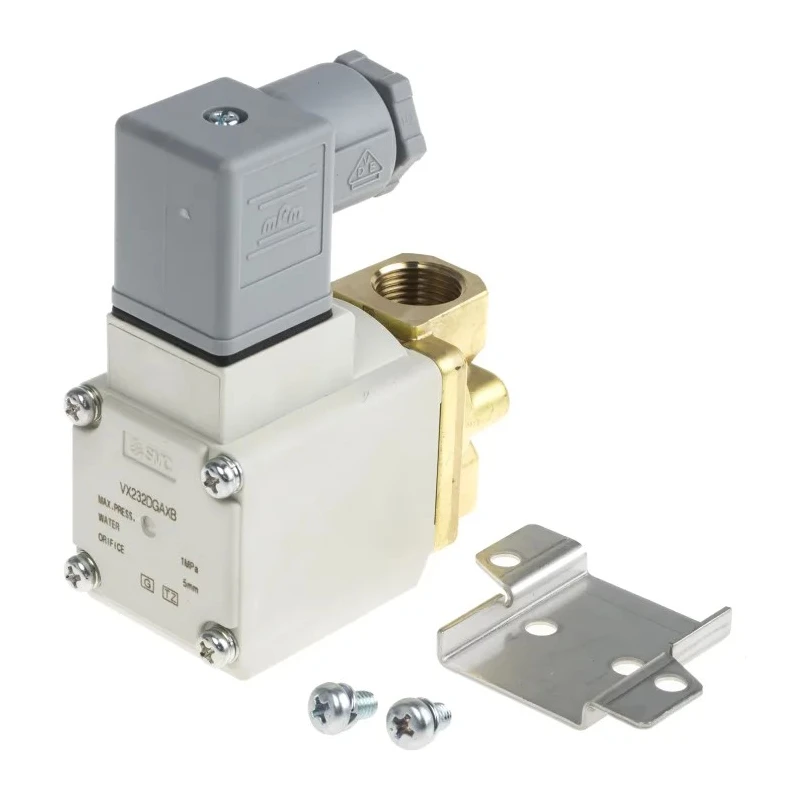

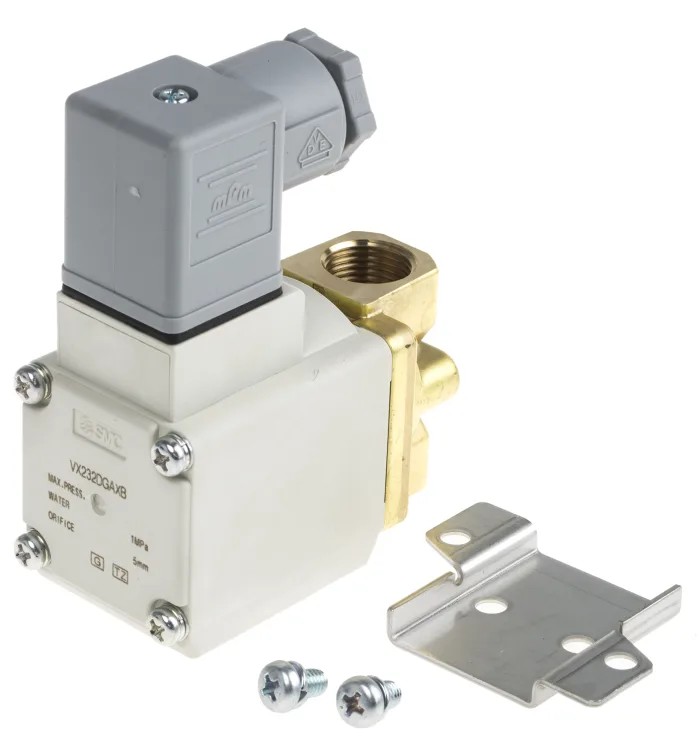

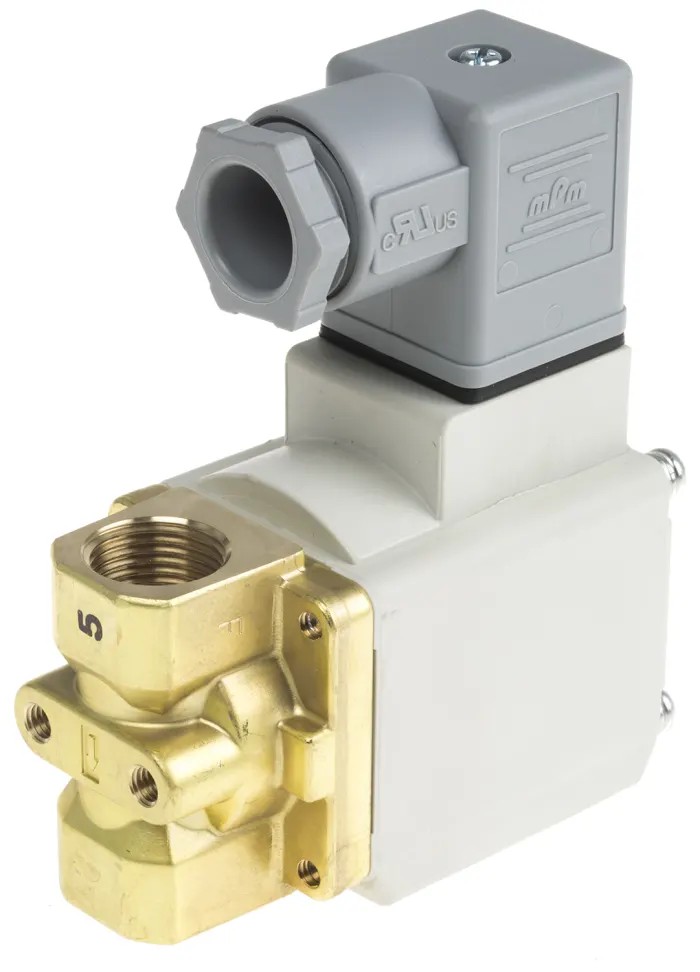

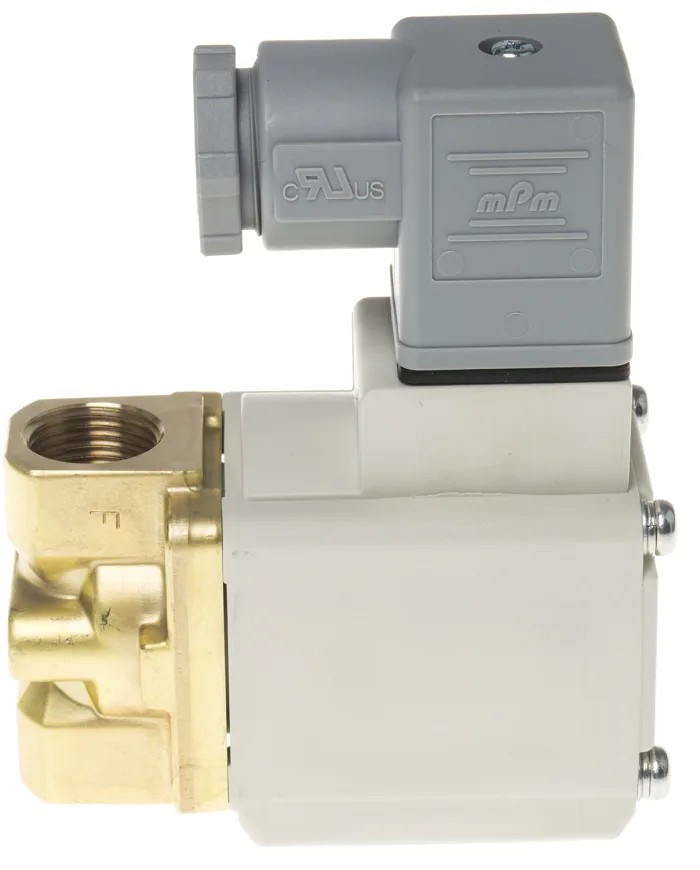

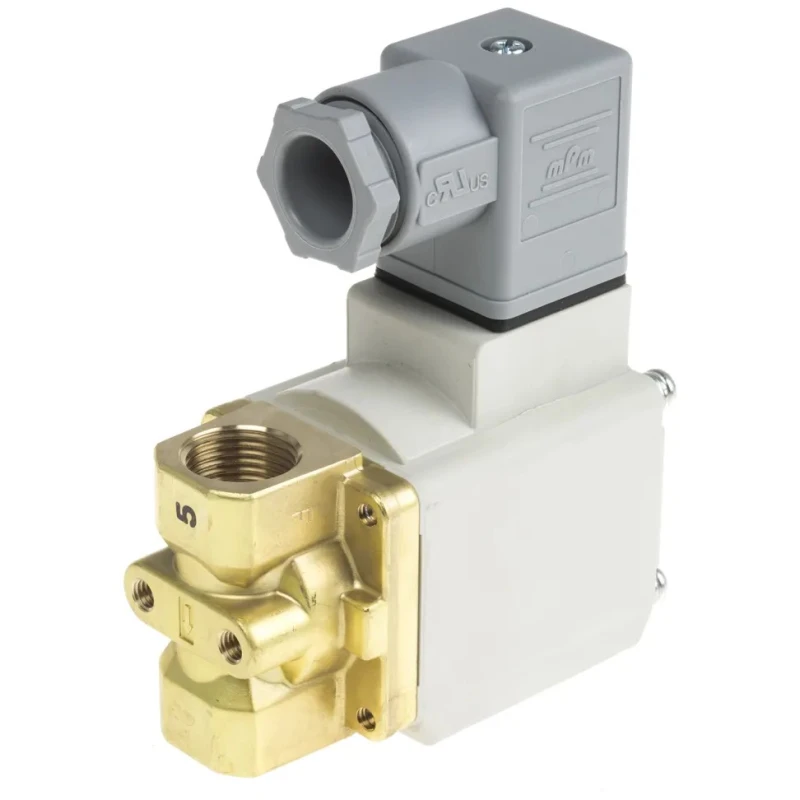

SMC Pneumatic 2/2 Solenoid/Spring Valve 3/8 in Threaded Port NBR Seal Aluminium Body 24V DC 10.5W VX232DGAXB

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic 2/2 Solenoid/Spring Valve 3/8 in Threaded Port NBR Seal Aluminium Body 24V DC 10.5W VX232DGAXB



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	India
Voltage	24V dc
Brand	SMC
Body Material	Aluminium
Maximum Operating Pressure	1 Mpa
Height	84mm
Length	94mm
Model	VX232DGAXB
Width	68mm
Mount Type	Bracket
Series	VX
Number Of Ports	2
Maximum Operating Temperature	60°C
Port Type	Threaded
Number of Positions	2
Port Size	3/8 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-20°C
Actuation Type	Solenoid/Spring
Maximum Flow Rate	3180L/min
Standards/Approvals	CE, cULus, RoHS
Connection Thread Standard	G
Valve Function	2/2
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	10.5W

Key Features

Operates on 24V DC with a solenoid power consumption of 10.5W.
Made with aluminium body and Nitrile Rubber (NBR) seal for corrosion resistance.
Supports maximum operating pressure of 1 MPa and maximum flow rate of 3180 L/min.
Suitable for industrial automation with operation range from -20°C to 60°C ambient temperature.
Equipped with DIN connector electrical interface for easy wiring.
Certified with CE, cULus, and RoHS approvals ensuring safety and compliance.

Product Description

SMC VX232DGAXB Pneumatic 2/2 Solenoid/Spring Valve offers high-quality control for compressed air systems, featuring a 3/8 inch female threaded G port connection. It is engineered with an aluminium body and Nitrile Rubber (NBR) seals to ensure durability and corrosion resistance during extended operation.

This valve operates on a 24V DC power supply with a solenoid coil consuming only 10.5 watts, optimizing energy efficiency in pneumatic applications. It supports a maximum operating pressure of 1 MPa and can handle air flow rates up to 3180 L/min, making it suitable for high-volume air handling needs.

Designed with a bracket mount for simple and secure installation, the valve performs reliably within a temperature range of -20 to 60 degrees Celsius. The electrical connection uses a DIN style connector that simplifies integration into factory automation and control panels.

The VX232DGAXB is ideal for pneumatic actuators, compressed air distribution manifolds, and on/off control in process machinery commonly found in industrial manufacturing, packaging lines, and automated systems. It is compliant with key regulatory standards, holding CE, cULus, and RoHS certifications.

24V DC solenoid coil with 10.5W power consumption. Aluminium construction with NBR seals for durability. Maximum operating pressure of 1 MPa for robust performance. Wide operating temperature range from -20°C to 60°C. 3/8 inch female threaded G port connection.

Bracket mount for secure equipment attachment. DIN connector for electrical interface. Certified with CE, cULus, and RoHS standards.

This valve is a trusted component in pneumatic systems for factory automation, HVAC controls, and industrial fluid power applications. Explore the comprehensive SMC valve range on EnvMart for reliable industrial solutions.
