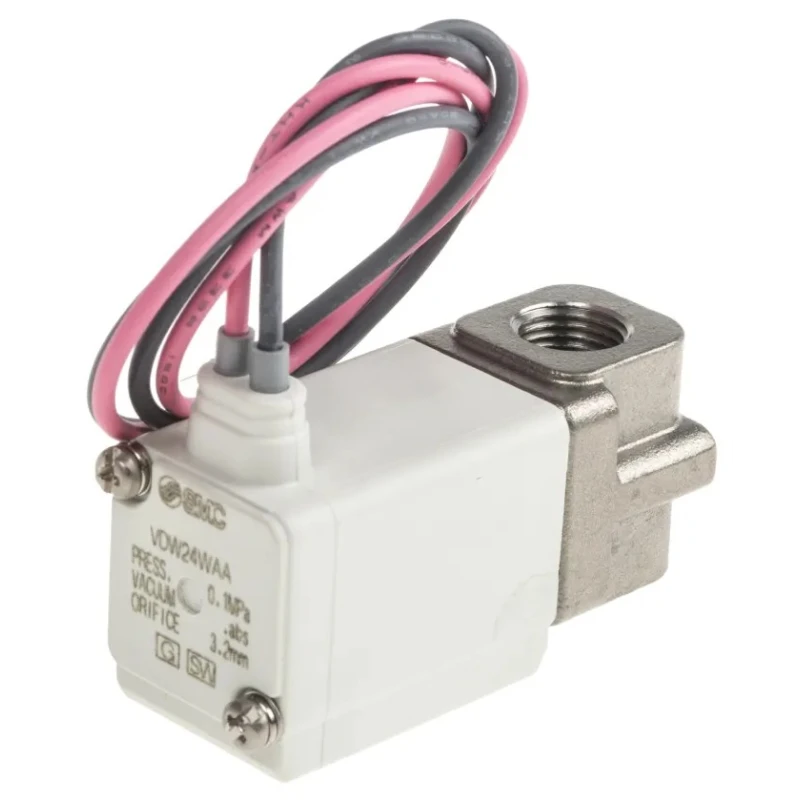

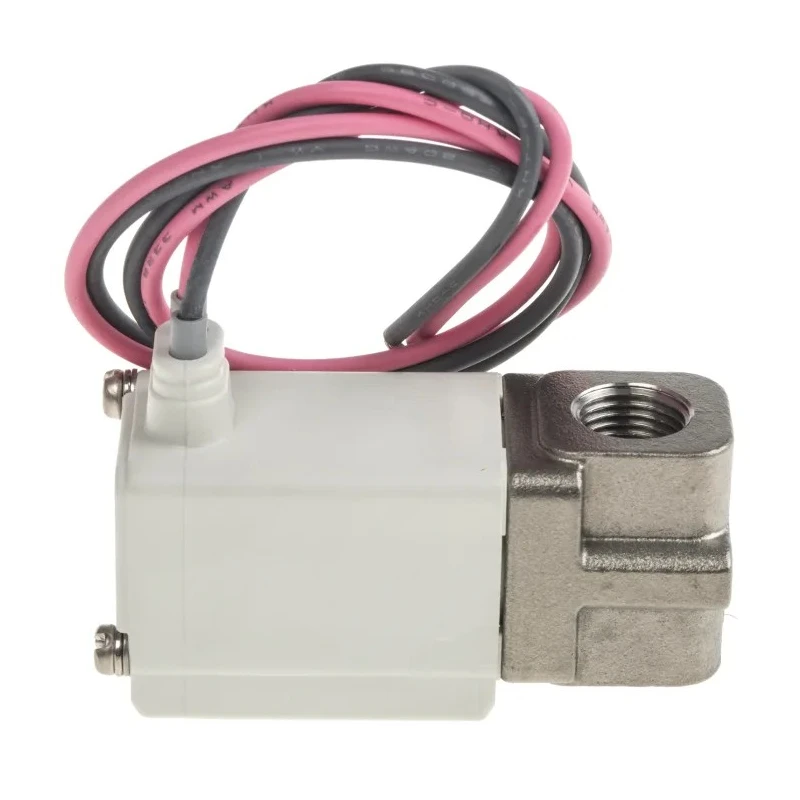

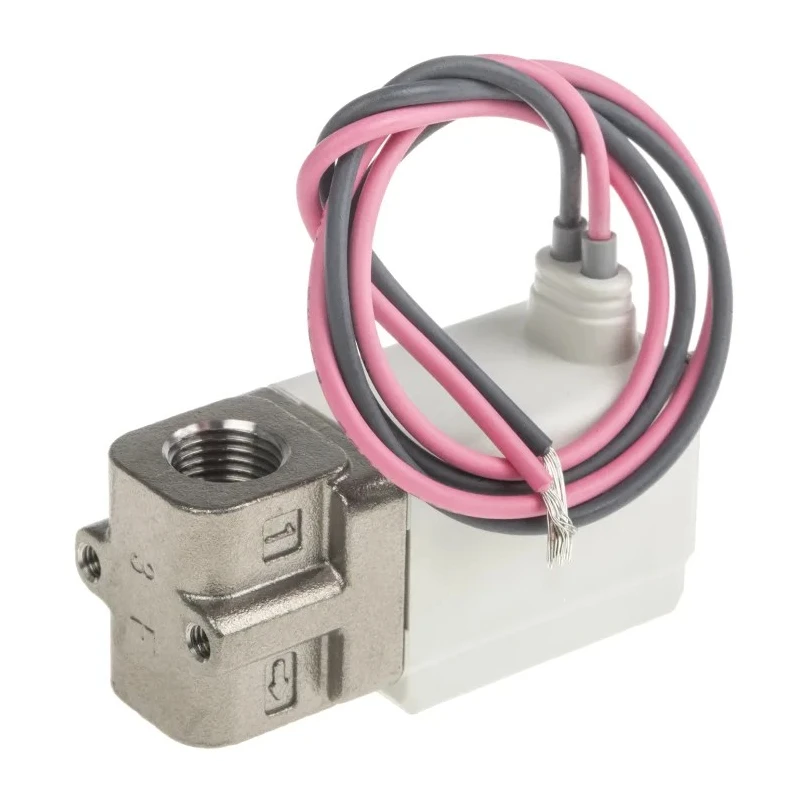

SMC Pneumatic 2/2 Solenoid Spring Valve VDW Series 24V DC 3W VDW24WAA

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic 2/2 Solenoid Spring Valve VDW Series 24V DC 3W VDW24WAA



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Aluminium
Maximum Operating Pressure	1 Mpa
Height	22mm
Length	52mm
Model	VDW24WAA
Width	20mm
Mount Type	Bracket
Series	VDW
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	2
Port Size	1/8 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid/Spring
Standards/Approvals	RoHS, CE
Connection Thread Standard	G
Minimum Pilot Pressure	0.9MPa
Valve Function	2/2
Electrical Connection Type	Grommet
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	3W

Key Features

Compact 2-port direct operated valve for air, water, and vacuum use.
Body made of durable aluminium enhancing longevity.
Single solenoid actuation with spring return function.
Maximum operating pressure of 1 MPa with temperature range -10°C to 50°C.
G nominal threaded port size of 1/8 inch with female port gender.
Nitrile Rubber (NBR) seal material provides reliable sealing.
Bracket mounted with grommet type electrical connection.
RoHS and CE compliant for quality and safety assurance.

Product Description

SMC VDW24WAA Pneumatic Solenoid Valve is a high-quality 2/2 way solenoid valve designed for pneumatic systems requiring reliable control of air, water, or vacuum media. Operating at 24V DC with a power consumption of 3W, this valve offers efficient and compact operation through its direct-operated solenoid and spring return mechanism.

The valve body is constructed from robust aluminium, ensuring high corrosion resistance and durability in industrial environments. The valve features threaded G standard ports sized at 1/8 inch with female connections, suitable for manifold installation or inline usage.

Designed for a maximum operating pressure of 1 MPa and functioning safely in temperature ranges from -10°C to 50°C, the valve seals using high-quality Nitrile Rubber (NBR) to prevent leakage and maintain operational integrity. The electrical connection is provided via a grommet type fitting, and the valve is mounted securely using a bracket.

Its compact size (52mm length, 22mm height, 20mm width) allows for flexible installation in pneumatic and hydraulic applications, including industrial manufacturing, automation systems, HVAC controls, water treatment plants, and laboratory setups.

Compact 2-port direct operated valve for air, water, and vacuum media. Durable aluminium body for enhanced corrosion resistance. Single solenoid with spring return for reliable actuation. Rated 24V DC voltage with 3W power consumption.

Maximum operating pressure 1 MPa with -10°C to 50°C temperature range. Threaded G 1/8 inch female port connections. Nitrile Rubber (NBR) sealing for secure operation. Bracket mount with grommet type electrical connection.

Compact dimensions enable easy integration. Compliance with RoHS and CE standards.

The SMC VDW series is engineered specifically for pneumatic control requiring compactness, reliability, and longevity. It finds extensive use in pneumatic automation, fluid control, and industrial equipment where precise valve function is critical.
