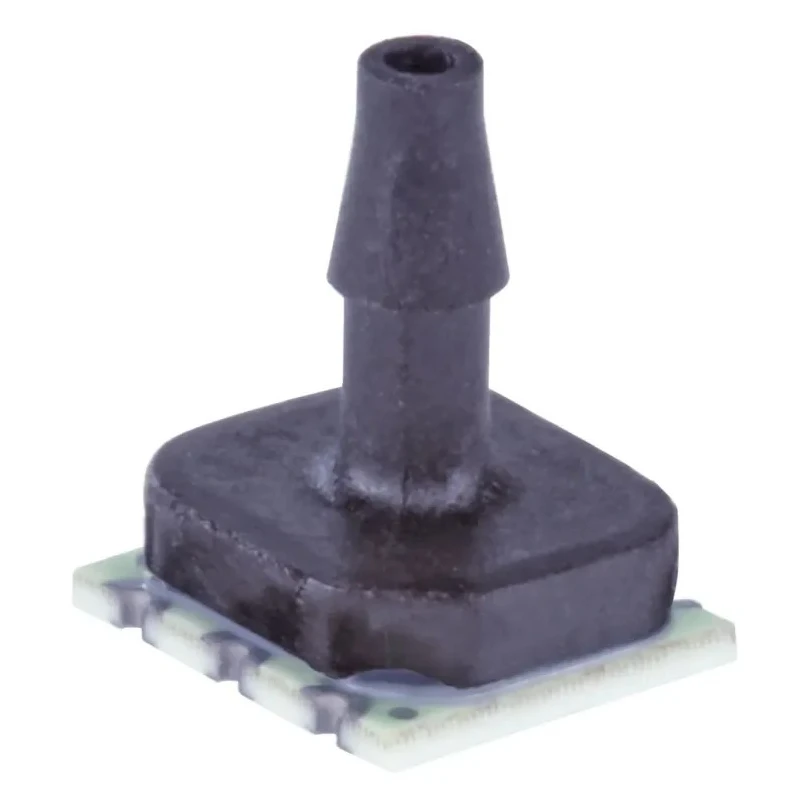

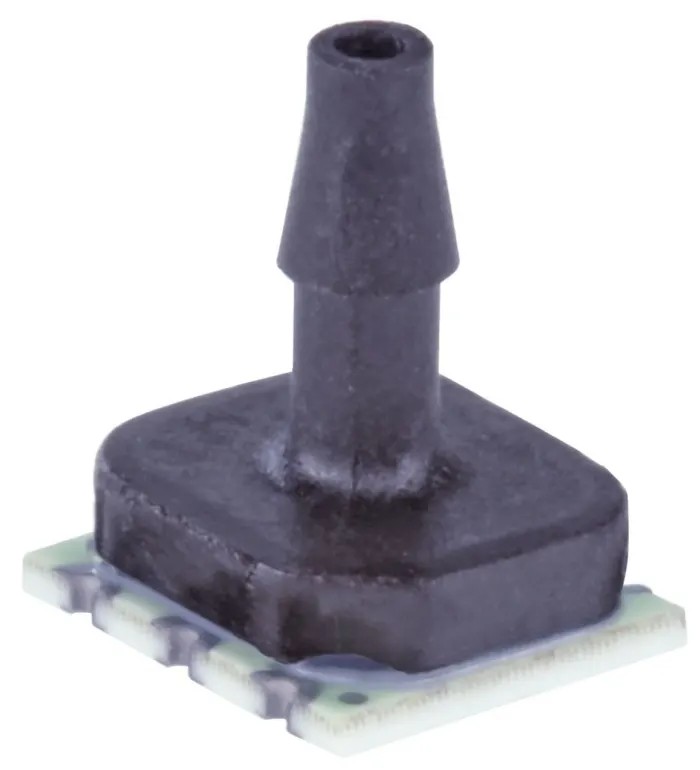

Honeywell Technologies Differential Pressure Sensor 6 Leadless SMT Surface Mount ±0.25% Accuracy ABPLANT015PD2A5
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell Technologies |
| Maximum Operating Pressure | 15 psi |
| Height | 10.63mm |
| Length | 7.3mm |
| Model | ABPLANT015PD2A5 |
| Sensor Type | Gauge Pressure Sensor |
| Mount Type | Surface |
| Series | ABP |
| Maximum Operating Temperature | 85°C |
| Port Type | Single Axial Barbed |
| Package Type | Leadless SMT |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | -15psi |
| Maximum Overload Pressure | 250psi |
Key Features
- Provides ±0.25% accuracy for reliable measurement confidence.
- Operates from low 5 V supply voltage for versatile integration.
- Supports digital outputs with 12-bit resolution including I2C and SPI interfaces.
- Suitable for wet or dry gas media with liquid-media silicone gel protection.
- Operable temperature range from -40°C to 85°C for harsh environments.
- Compact dimensions of 10.63 mm height and 7.3 mm length enables space saving PCB designs.
- Maximum pressure rating of 15 psi with 250 psi overload capacity ensures durability.
- Sleep-mode available for ultra-low power consumption in battery applications.
Product Description
Honeywell Technologies ABPLANT015PD2A5 differential pressure sensor is a surface mount device featuring a leadless 6-pin SMT package. This sensor provides highly accurate gauge and differential pressure measurements with a rated accuracy of ±0.25% BFSL, suitable for industrial and medical applications. It operates at a maximum supply voltage of 5 V and supports both analogue ratiometric and digital output modes, including 12-bit resolution over I2C or SPI interfaces, allowing precise and timely pressure readings up to 2 kHz.
Designed for harsh environments, this pressure sensor operates effectively across a wide temperature range from -40°C to 85°C, with compensated performance over 0°C to 50°C. Its rugged construction supports a maximum operating pressure of 15 psi and can withstand overload pressures up to 250 psi. A silicone-based gel coating protects sensitive electronics from condensation and non-corrosive liquids, enabling reliable performance in wet or dry gas media. The sensor package's compact dimensions (10.63 mm height and 7.3 mm length) fit constrained PCB layouts.
Typical industrial uses include HVAC flow control, valve positioning, medical ventilators, portable oxygen concentrators, and pneumatic regulation systems. The sensor's low power consumption with sleep mode makes it suitable for battery-operated devices. Honeywell Technologies manufactures this product to ISO 9001 standards to ensure consistent quality.
±0.25% BFSL accuracy for dependable pressure measurements. Low voltage 5 V supply operation for system compatibility. High-speed output update rates up to 2 kHz. Liquid-media compatible with silicone gel protection. Wide operating temperature range from -40°C to 85°C.
Compact leadless SMT package for easy surface mounting. Maximum operating pressure of 15 psi with 250 psi overload. Sleep mode for reduced power consumption in battery-powered applications.
This Honeywell differential pressure sensor is ideal for industrial, medical, HVAC, and commercial applications requiring precise pressure monitoring and control. Explore more in the Pressure Sensors category on EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides an accuracy of ±0.25% BFSL for reliable pressure measurements.
The maximum operating pressure is 15 psi, with an overload capacity of up to 250 psi.
This unit operates effectively within a temperature range of -40°C to 85°C.
The sensor has a height of 10.63 mm and a length of 7.3 mm, making it suitable for compact PCB designs.
It supports both analogue ratiometric and digital output modes, including 12-bit resolution over I2C and SPI interfaces.
Yes, it is compatible with wet or dry gas media and features liquid-media silicone gel protection.
It operates at a maximum supply voltage of 5 V, with a minimum supply voltage of -0.3 V.
This sensor features a pin count of 6, suitable for surface mounting.
Yes, it includes a sleep mode for ultra-low power consumption, making it suitable for battery-powered applications.
It is designed as a leadless SMT package, facilitating easy surface mounting on PCBs.
The country of origin for this product is India.
