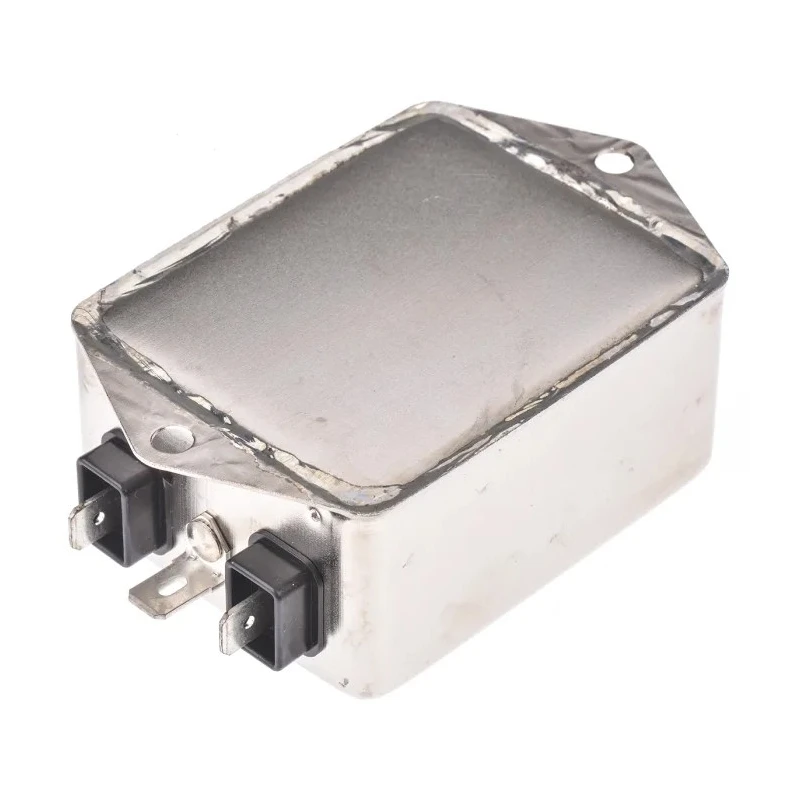

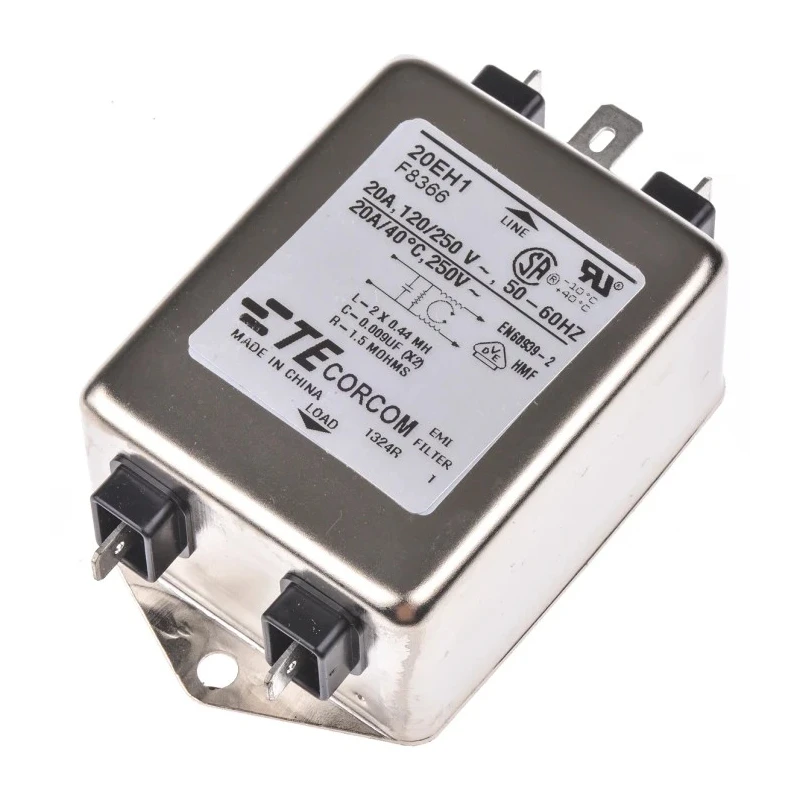

TE Connectivity Chassis Mount EMI Filter Corcom H 20 A 250V AC 50Hz 60Hz Spade 1 Phase 3-1609037-8
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 52.6mm |
| Length | 85mm |
| Depth | 33.3mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Series | Corcom H |
| Maximum Operating Temperature | 40°C |
| Number Of Stages | 1 |
| Capacitance | 9nF |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 20A |
| Number of Phases | 1 |
| Leakage Current | 5μA |
| Maximum Voltage | 250V ac |
| Inductance | 440μH |
| Standards/Approvals | UL1283 |
| Termination Style | Spade |
Key Features
- Designed for medical and industrial equipment EMI/RFI filtering applications.
- Compact chassis mount design for space-saving installation.
- Low leakage current of 5 μA suitable for sensitive electrical equipment.
- Supports operating temperatures ranging from -10°C to 40°C.
- Complies with UL1283 safety standards for electromagnetic interference suppression.
- Capacitance value of 9 nF and inductance of 440 μH provide effective noise attenuation.
- Operates effectively over both 50 Hz and 60 Hz power supply frequencies.
- Ideal for use in diagnostic, dialysis, and medical imaging equipment.
Product Description
TE Connectivity model 3-1609037-8 is a high-quality Corcom H series chassis mount EMI filter designed for effective electromagnetic interference attenuation in industrial, laboratory, and medical applications. Rated for a maximum current of 20 A and a maximum voltage of 250 V AC, this single-phase filter operates across both 50 Hz and 60 Hz power frequencies, making it versatile for diverse global power environments.
The device incorporates a spade termination style to facilitate straightforward installation in machinery and electronic equipment. Its low leakage current of 5 μA ensures minimal interference with sensitive circuits, making it well-suited for critical applications such as diagnostic machines, dialysis apparatus, medical lasers, and imaging scanners like MRT and CAT machines.
The compact and low profile design measures 85 mm in length, 52.6 mm in height, and 33.3 mm in depth, offering space-saving integration in confined chassis spaces. This product complies with UL1283 standards, guaranteeing safety and performance reliability. Its capacitive and inductive elements (9 nF capacitance and 440 μH inductance) provide efficient filtering of unwanted noise and EMI disturbances.
The Corcom H series filters are recognized worldwide and approved by major safety agencies, ensuring dependable EMI/RFI filtering solutions suitable for demanding industrial and medical settings. Manufactured in China, the product balances performance with cost efficiency for commercial use.
Designed for EMI/RFI attenuation in medical and industrial electronic equipment. Compact chassis mount form factor with spade terminals for ease of connection. Leakage current limited to 5 μA for safe use in sensitive applications.
Rated for 20 A maximum current and 250 V AC operation. Effective at both 50 Hz and 60 Hz power frequencies. UL1283 compliant for electromagnetic interference standards. Dimensions: 85 mm length, 52.6 mm height, 33.3 mm depth for tight chassis mounting.
Suitable for diverse medical applications including diagnostic and therapy machines. Reliable Corcom H series product with worldwide approvals. Explore the Electronics Components category on EnvMart for other power line and EMI filtering solutions from leading brands like TE Connectivity.
Explore more products in our EMI Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMI filter is 20 A.
It operates at a maximum voltage of 250 V AC.
The dimensions are 85 mm in length, 52.6 mm in height, and 33.3 mm in depth.
The leakage current is limited to 5 μA.
It can operate within a temperature range of -10°C to 40°C.
The capacitance value is 9 nF.
It provides an inductance of 440 μH.
Yes, it complies with UL1283 safety standards for electromagnetic interference suppression.
This model uses a chassis mount style with spade terminals for installation.
It operates effectively over both 50 Hz and 60 Hz power supply frequencies.
It is suitable for use in medical and industrial equipment, including diagnostic machines and medical imaging equipment.
This EMI filter is manufactured in China.
