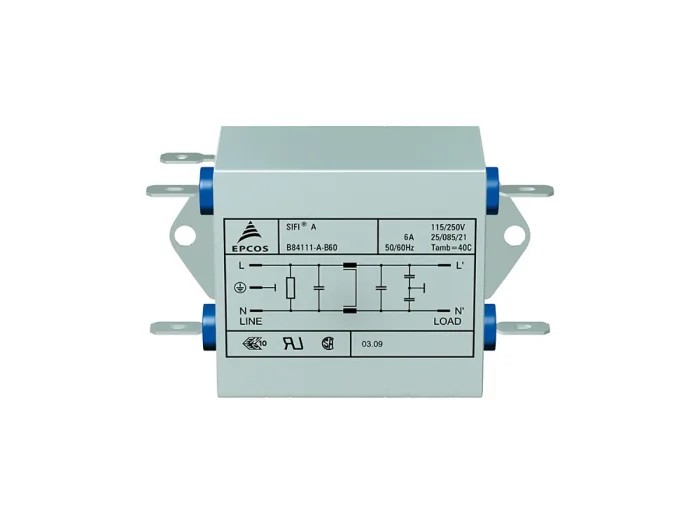

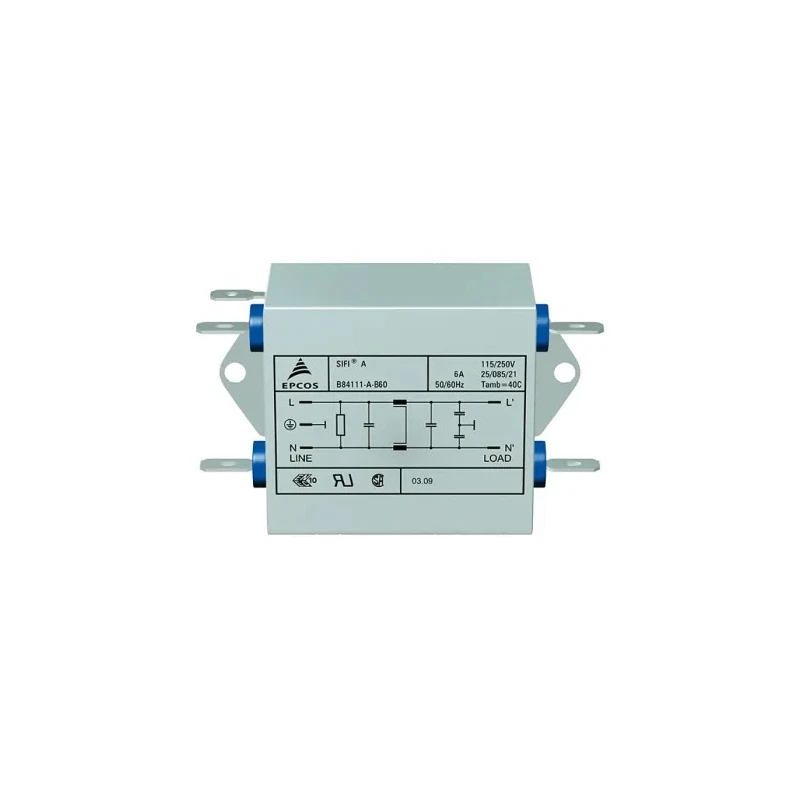

TDK EMC Filter 10 A 250V AC/DC 50Hz 60Hz Tab Termination 1 Phase B84111A0000A110
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TDK |
| Height | 28.6mm |
| Length | 76.5mm |
| Model | B84111A0000A110 |
| Depth | 70mm |
| Operating Frequency | 50, 60Hz |
| Series | B84111A |
| Maximum Operating Temperature | 85°C |
| Capacitance | 4700pF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 10A |
| Number of Phases | 1 |
| Leakage Current | 369μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 0.82mH |
| Standards/Approvals | RoHS, ENEC, UL 1283, UL and cUL, IEC 60939, CSA |
| Termination Style | Tab |
Key Features
- Compact design ensures easy installation in limited spaces.
- Capacitance value is 4700 pF optimizing EMI suppression performance.
- Inductance of 0.82 mH provides effective filtering capability.
- Leakage current is minimized to 369 μA to reduce power loss.
- Operating temperature range from -25°C to 85°C for reliable use in diverse environments.
- Complies with multiple standards like RoHS, ENEC, UL 1283, IEC 60939, and CSA for safety and compatibility.
- Ideal for switch-mode power supplies and industrial electronic applications.
- Useful in telecommunications and data systems requiring electromagnetic interference control.
Product Description
TDK B84111A0000A110 EMC Filter is a high-quality component designed for 10 Ampere maximum current and rated for 250 Volts AC/DC voltage operation at 50 Hz and 60 Hz frequencies. Featuring a tab termination style and single-phase configuration, this filter provides efficient electromagnetic compatibility (EMC) filtering for various electronic and industrial applications.
The filter has a capacitance of 4700 pF and an inductance of 0.82 mH, which effectively reduces noise and interference in sensitive circuits. Its leakage current is optimized to be below 0.5 mA, measured specifically at 369 μA, balancing performance and energy efficiency. The compact dimensions of 76.5 mm length, 28.6 mm height, and 70 mm depth allow for easy integration into equipment with limited space.
Operating temperature ranges from -25°C to 85°C, enabling usage in varied environmental conditions typical in industrial, telecommunications, and switch-mode power supply settings. The component meets rigorous approvals and standards including RoHS compliance, ENEC certification, UL 1283, UL and cUL safety approvals, IEC 60939, and CSA, ensuring international safety and quality compliance.
This EMC filter is perfectly suited for industrial electronics, telecommunications equipment, data systems, and DC applications where electromagnetic interference needs to be controlled to maintain performance and regulatory compliance. Manufactured in Hungary, it reflects reliable production standards.
Compact and easy to install design for space-saving applications. Optimized capacitance and inductance values for effective EMI suppression. Low leakage current enhances efficiency and safety. Wide operating temperature range supports diverse industrial environments.
Conforms to multiple international safety and environmental standards. Suitable for switch-mode power supplies and industrial electronics. Reliable performance in telecommunications and data communication systems. Manufactured to high quality standards in Hungary.
For comprehensive solutions, explore additional power line filter products to match your industrial and electronic system requirements available at EnvMart.
Explore more products in our EMI Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMC filter is 10 Amperes.
This model is rated for operation at 250 Volts AC/DC.
The capacitance value of this filter is 4700 pF, which optimizes its EMI suppression performance.
The inductance value of this EMC filter is 0.82 mH, providing effective filtering capability.
The dimensions of this filter are 76.5 mm in length, 28.6 mm in height, and 70 mm in depth.
It is ideal for switch-mode power supplies, industrial electronics, telecommunications, and data systems requiring electromagnetic interference control.
The leakage current is minimized to 369 μA, which helps reduce power loss.
This filter complies with several standards including RoHS, ENEC, UL 1283, IEC 60939, and CSA.
The termination style of this EMC filter is tab termination, which facilitates easy installation.
It is manufactured in Hungary, reflecting reliable production standards.
This model supports operating frequencies of 50 Hz and 60 Hz.
