Mentor GmbH Vertical 4-Way Straight Rigid LED Light Pipe Clear 1296.4114

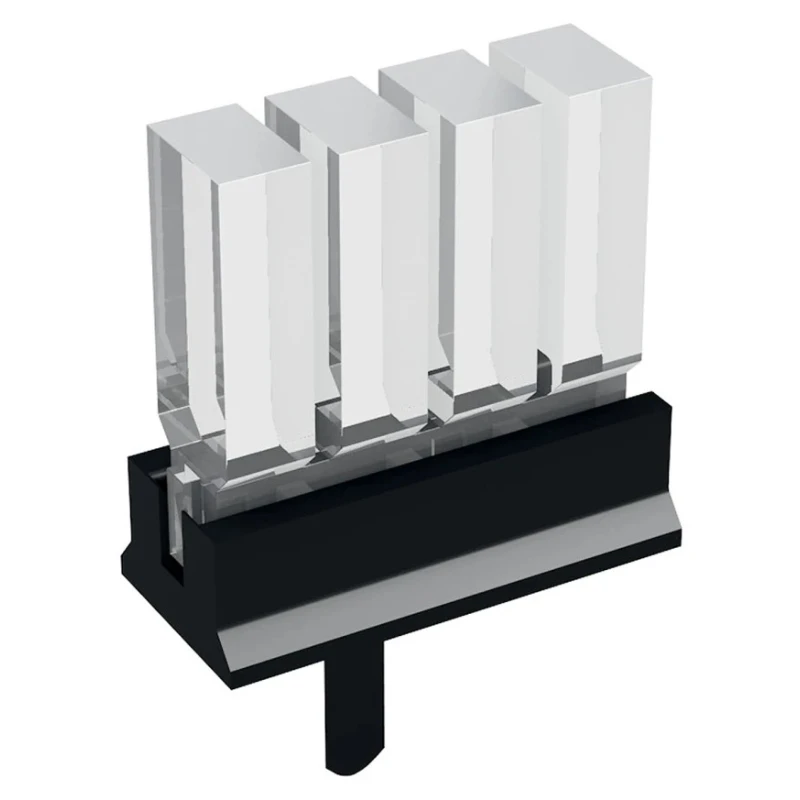

Mentor GmbH 1296.4114 Vertical 4-Way Straight Rigid LED Light Pipe Clear is a high-precision optical component designed to transmit light efficiently from PCB-mounted surface mount device (SMD) LEDs to the user interface. This product is part of the Mentor GmbH family of vertical light guides, composed of four rigid light pipes arranged in a single row with a straight orientation and vertical mounting format. The rectangular clear lenses provide excellent light guidance with minimal luminance loss.

This light pipe assembly is ideally suited for bargraph display applications with a minimum of four displays, ensuring clear and distinct light indication with no light bleed between adjacent elements. Its robust rigid construction and compliance with UL94 flame retardant standards guarantee reliable performance in demanding environments.

The device operates effectively within an ambient temperature range from -40°C up to +85°C, making it suitable for industrial, manufacturing, electronic, and laboratory instrumentation applications. With a compact outside diameter of 2.2 mm and a length of 7.7 mm, the light pipe integrates seamlessly onto printed circuit boards (PCBs) using push-fit lugs that position the inject face close to the LED source.

Designed and manufactured in Germany, this product ensures quality and durability meet international standards. Its design also features considerations for preventing optical radiation mixing when combining different LED colors by incorporating optional light diffusing covers in the range.

Rigid light pipe construction for durability and precise optical performance. Four light pipes arranged vertically to support bargraph displays. Rectangular lens shape optimizes light transmission. Vertical mounting and straight orientation to fit SMD LEDs on PCBs.

UL94 flame retardant compliance ensures safety. Wide ambient temperature range for industrial use. Compact size with a 2.2 mm diameter and 7.7 mm length. Manufactured in Germany for high quality assurance. Prevents light bleed for accurate display appearance.

This Mentor GmbH vertical LED light pipe is widely applicable in industrial controls, measurement devices, electronic instruments, and other areas requiring clear visual indication. Explore more technical components and solutions at EnvMart for your electronic and LED lighting needs.
