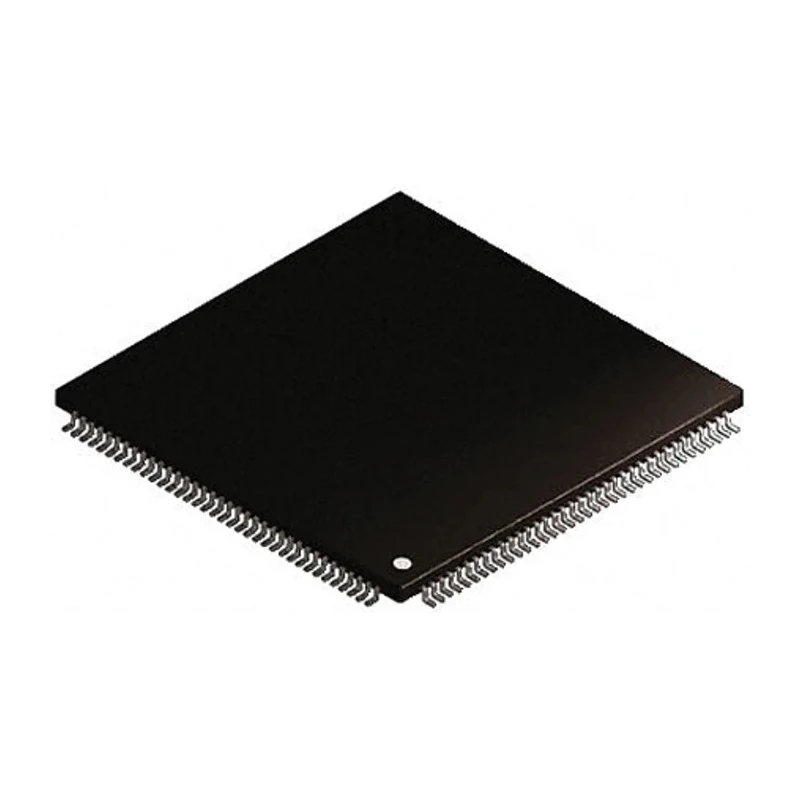

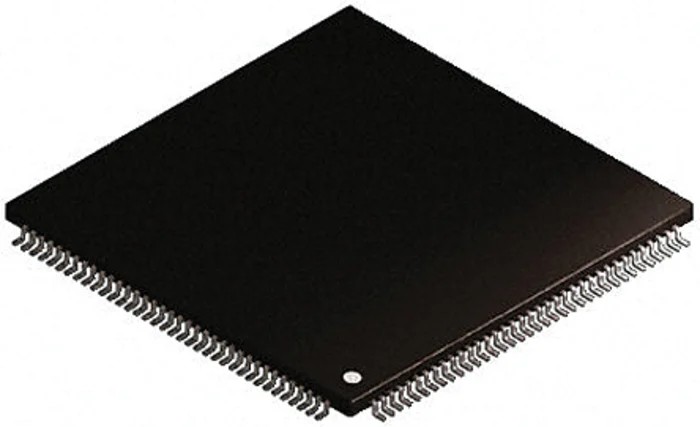

Microchip 32-bit Microcontroller 200 MHz 2MB FLASH 144-Pin LQFP PIC32MZ2048ECM144-I/PL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 20mm |
| Model | PIC32MZ2048ECM144-I/PL |
| Width | 20mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Ram size | 512kB |
| Pin Count | 144 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.3V |
| Program Memory Size | 2MB |
| Maximum Clock Frequency | 200MHz |
| Number of Programmable I/Os | 120 |
| Analogue Comparators | 2 |
| Number of Timers | 13 |
| Instruction Set Architecture | C |
| ADCs | 48 x 10 Bit |
| Program Memory Type | FLASH |
| High-performance 32-bit microcontrollers designed for | High Impact Graphics/User Interfaces, Ethernet/USB/CAN Connectivity, Multitasking Embedded Control, High Performance Audio |
| Audio Master clock | Fractional clock frequencies with USB synchronization |
Key Features
- Operates at maximum frequency of 200 MHz delivering up to 330 DMIPS performance.
- Includes 2MB of FLASH program memory and 512kB RAM to support complex applications.
- Equipped with 48 channels of 10-bit ADCs and 2 analogue comparators for precision analog interfacing.
- Offers 120 programmable I/Os and multiple communication interfaces including USB 2.0, Ethernet, CAN, UART, SPI, and I2C.
- Built on a MIPS32 microAptiv™ core with DSP enhancements for efficient signal processing.
- Operates over a wide temperature range from -40°C to 85°C suitable for automotive and industrial environments.
- Packaged in a 144-pin LQFP surface mount package with dimensions 20mm x 20mm x 1.5mm.
- Complies with automotive standard ISO/TS 16949 for reliable automotive applications.
Product Description
Microchip PIC32MZ2048ECM144-I/PL is a high-performance 32-bit microcontroller operating at 200 MHz with 2MB FLASH memory and 512kB RAM. It utilizes the powerful MIPS32 microAptiv™ core architecture, offering up to 330 DMIPS for demanding embedded applications.
The device boasts a rich set of peripherals including 48 channels of 10-bit ADCs and analogue comparators, supporting precise analog signal measurement and control. Communication interfaces are comprehensive with USB 2.0 compliant OTG controller, 10/100 Ethernet MAC, CAN 2.0B modules, six UARTs supporting LIN and IrDA protocols, four or six SPI modules, and up to five I2C modules with SMBus support.
Built for industrial and automotive environments, it supports an extended temperature range from -40°C to 85°C and meets the ISO/TS 16949 automotive quality standard. The 144-pin LQFP surface mount package measures 20 mm square with a height of 1.5 mm, suitable for space-constrained designs.
Additional features include a cryptographic engine for enhanced security, a random number generator for cryptographic operations, direct memory access (DMA) for efficient data management, and advanced audio synchronization capabilities.
This microcontroller is ideal for embedded systems requiring high impact graphics user interfaces, efficient multitasking control, reliable Ethernet and USB connectivity, and high-performance audio processing. Development is supported via Microchip’s MPLAB® Harmony Integrated Software Framework, expediting design cycles.
Operates at 200 MHz with up to 330 DMIPS processing speed. Features 2MB FLASH memory and 512kB RAM for demanding applications. Offers multiple communications interfaces including USB, Ethernet, CAN, UART, SPI, and I2C. Wide temperature range (-40°C to 85°C) suitable for automotive and industrial.
Complies with ISO/TS 16949 automotive quality standard. Supports cryptographic engine and DMA for enhanced performance and security. Package: 144-pin LQFP, 20x20x1.5 mm. Rich set of peripherals including 48-channel ADC and two comparators.
Designed for high impact graphics, multitasking embedded control, and high-performance audio. Supported by MPLAB Harmony Integrated Software Framework for rapid development.
Explore the Electronics & Electricals category at EnvMart for more Microchip Microcontrollers and semiconductor solutions tailored for industrial, automotive, and embedded system applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of the PIC32MZ2048ECM144-I/PL is 200 MHz.
It includes 2MB of FLASH program memory.
The RAM size of this unit is 512kB.
This model supports multiple communication interfaces, including USB 2.0, Ethernet, CAN, UART, SPI, and I2C.
It operates over a wide temperature range from -40°C to 85°C.
The microcontroller is packaged in a 144-pin LQFP surface mount package, measuring 20mm x 20mm x 1.5mm.
It offers 120 programmable I/Os.
The maximum supply voltage is 3.6V.
It complies with the ISO/TS 16949 automotive quality standard.
This microcontroller is designed for high impact graphics user interfaces, Ethernet/USB/CAN connectivity, multitasking embedded control, and high performance audio.
It features 48 channels of 10-bit ADCs.
It uses the C instruction set architecture.
