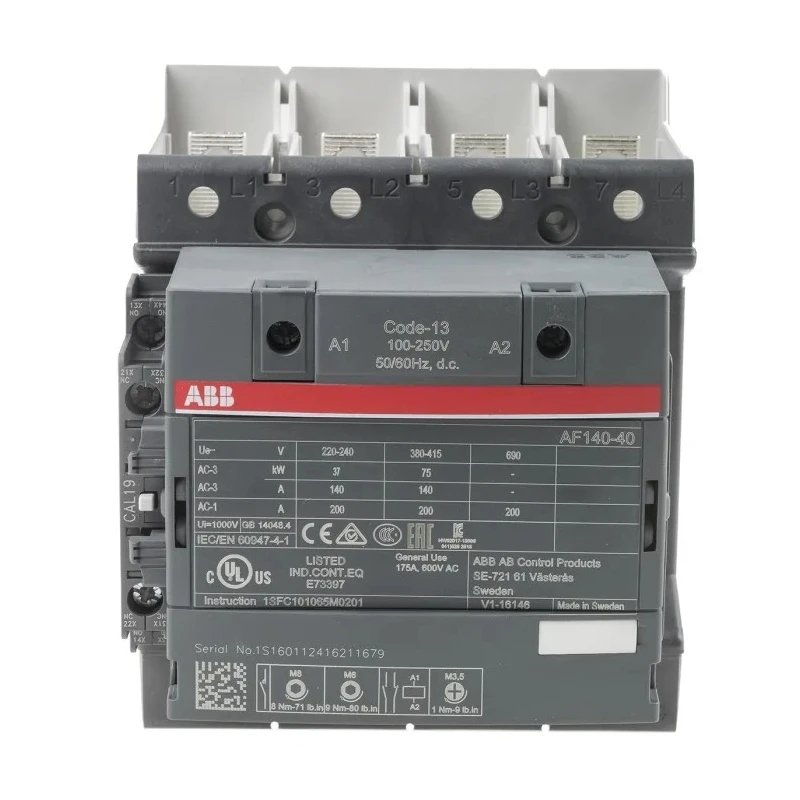

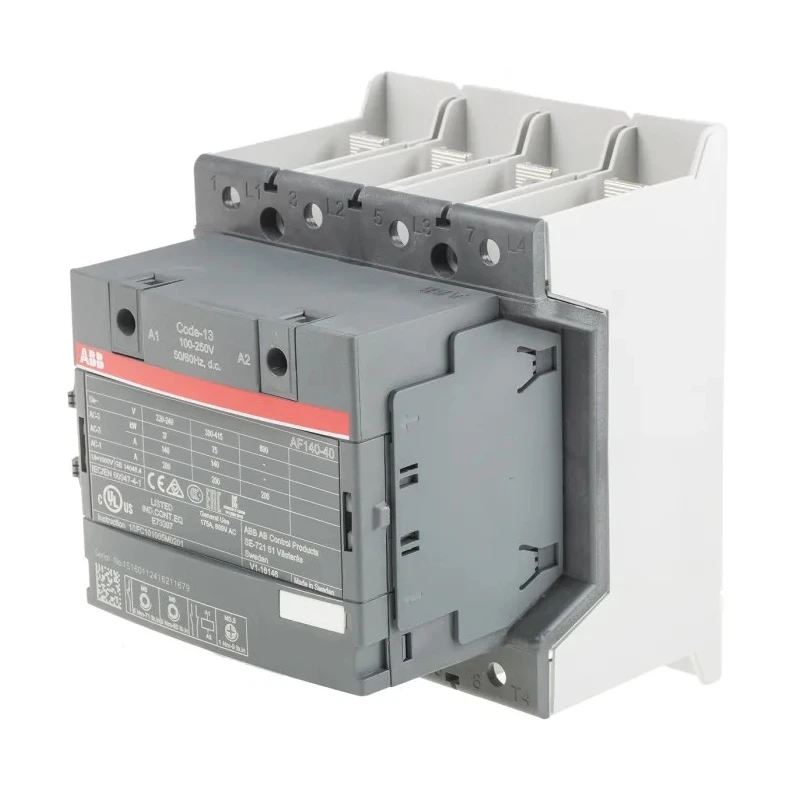

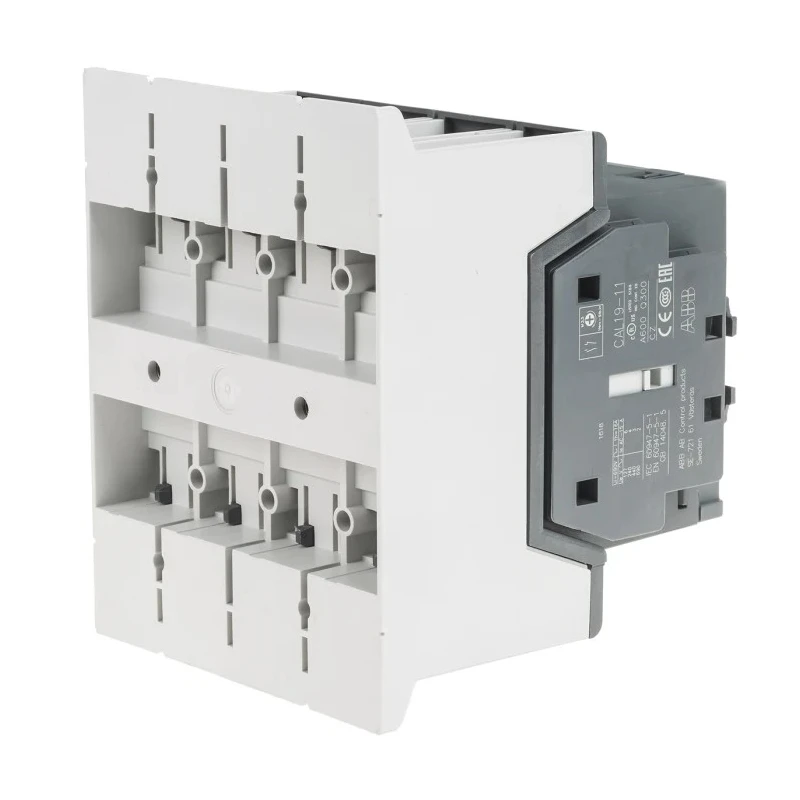

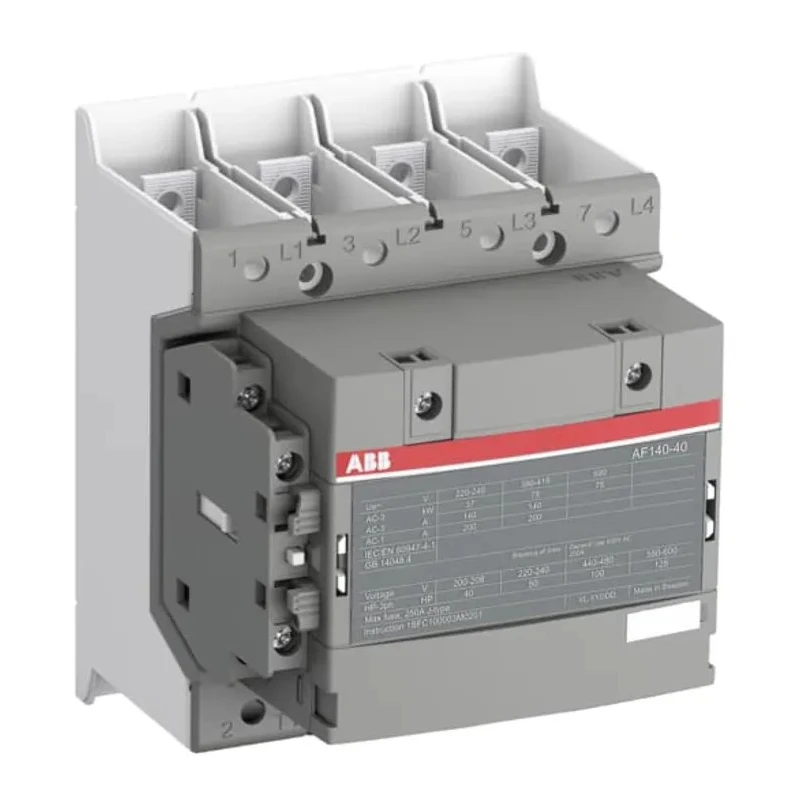

ABB AF116 Contactor, 230V AC Coil, 4-Pole, 200A, 75 kW Power Rating, 4 NO Contacts, 690V AC 1SFL447102R1311 AF140-40-11B-13

ABB AF116 Contactor with model number 1SFL447102R1311 AF140-40-11B-13 is a high-performance 4-pole contactor designed for motor control applications. It operates with a coil voltage of 230V AC and supports contact voltages up to 690V AC, with a contact current rating of 200A and a power rating of 75 kW.

The device features a compact form factor with dimensions measuring 150mm in length, 120mm in width, and 129mm in depth, making it suitable for installations with limited space. The screw mount type facilitates secure attachment onto DIN rails or flat surfaces, ensuring easy integration into control panels.

Its operating temperature range spans from -40°C to 70°C, allowing the contactor to function reliably even in harsh industrial environments. The contactor includes 4 normally open (NO) contacts and 2 auxiliary contacts configured as 1 NO and 1 normally closed (NC) contact. The operational current Ie is rated at 116A with a control circuit voltage of 250V.

ABB designed this contactor with a touch-safe design to enhance electrician safety during installation and maintenance. Its mechanical lifespan reaches up to 5 million cycles, making it a durable solution suited to heavy-duty manufacturing, commercial lighting systems, and various electric motor applications.

The contactor internally isolates surges, eliminating the need for an external surge suppressor, which simplifies protection requirements. Its modular block-type design allows users to add accessories such as auxiliary contact blocks or thermal overload relays, enhancing flexibility and customization for control systems.

Typical industrial applications include electric motors control in manufacturing plants and commercial lighting control systems. With compliance to UL, CCC, CE, EAC, IEC, and RoHS standards, this device ensures safety, reliability, and environmental conformity.

Choose ABB AF116 contactors for efficient, safe, and easy-to-maintain motor control in various industrial settings. Explore other Contactors and control gear products on EnvMart to find compatible accessories and related devices from ABB.

Wide operating temperature range from -40°C to 70°C ensures robust performance. Compact dimensions of 150mm length, 120mm width, and 129mm depth to save installation space. Screw mounting type enables secure fitting on DIN rails or flat surfaces.

Features 2 auxiliary contacts with 1 normally open and 1 normally closed configuration. Rated operational current of 116A supports medium to heavy motor loads. Designed for 60Hz frequency industrial motor control applications.

Mechanical life expectancy up to 5 million operations guarantees longevity. Includes safety features such as touch-safe design to prevent electrical shocks during maintenance. Internal surge isolation removes the need for external surge suppressors.

Modular block-type design allows addition of auxiliary contact blocks and thermal overload relays.
