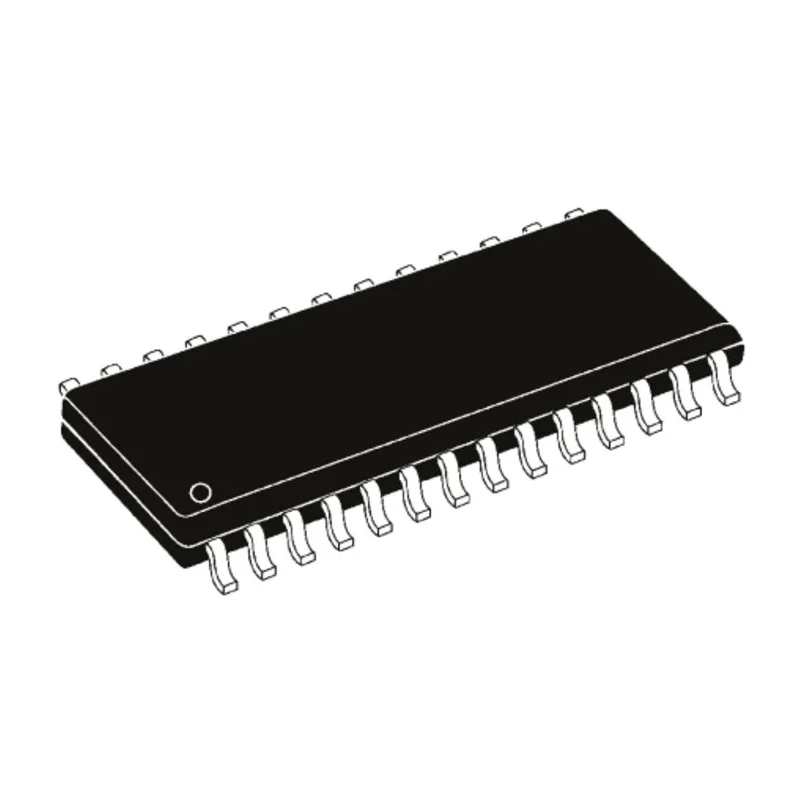

Microchip 8 bit PIC Microcontroller, 32 MHz, 7kB FLASH, 28-Pin SOIC PIC16F1713

Microchip PIC16F1713 microcontroller is a high-performance 8-bit device designed for surface mount applications in an SOIC package. Operating at a maximum clock speed of 32 MHz, it features a flash memory size of 7kB and RAM size of 512 bits, making it suitable for embedded and industrial electronic applications requiring efficient processing and low power consumption.

The device supports a wide supply voltage range from 2.3V to 5.5V, making it adaptable to various power conditions. Its 25 programmable I/Os, 2 analogue comparators, and 17 channels of 10-bit ADC provide comprehensive interfacing options for sensor input and control tasks.

Advanced features include intelligent analog integration with OP amps, DACs, numerically controlled oscillator for fine frequency adjustments, and complementary output generator with features like dead band control and auto-shutdown, facilitating sophisticated output signal management without processor overhead. The configurable logic cell module enables custom combinational and sequential logic within the microcontroller, enhancing design flexibility.

Peripheral Pin Select (PPS) capability allows users to configure peripherals on any pin, simplifying PCB layout and reducing design constraints. The Zero Cross Detect feature aids AC control applications by timing triac switching accurately.

Built to function in harsh environments, the PIC16F1713 supports operating temperatures from -40°C to 85°C and complies with RoHS environmental standards, ensuring safety and sustainability. Its compact 28-pin SOIC form factor measures 17.9x7.5x2.35 mm, ideal for compact embedded systems requiring space efficiency.

This microcontroller is widely used in industrial automation, consumer electronics, sensor interfacing, and control systems, offering versatile performance with intelligent analog and digital integration. It is a reliable choice for designers seeking a balance of speed, low power, and flexible peripheral configuration.

Operates from 2.3V to 5.5V supply voltage for flexible power management. Supports 25 programmable I/O pins for various input and output needs. Includes 2 analogue comparators and multiple ADC inputs for analog data processing.

Features 5 timers and a high-resolution numerically controlled oscillator for precise timing and frequency control. Equipped with configurable logic cell and complementary output generator modules for advanced control logic and waveform synthesis.

Peripheral Pin Select feature enhances design layout freedom by allowing peripheral functions on multiple pins. RoHS compliant, ensuring environmentally safe manufacturing standards. Compact 28-pin SOIC package suitable for space-saving applications in embedded systems.
