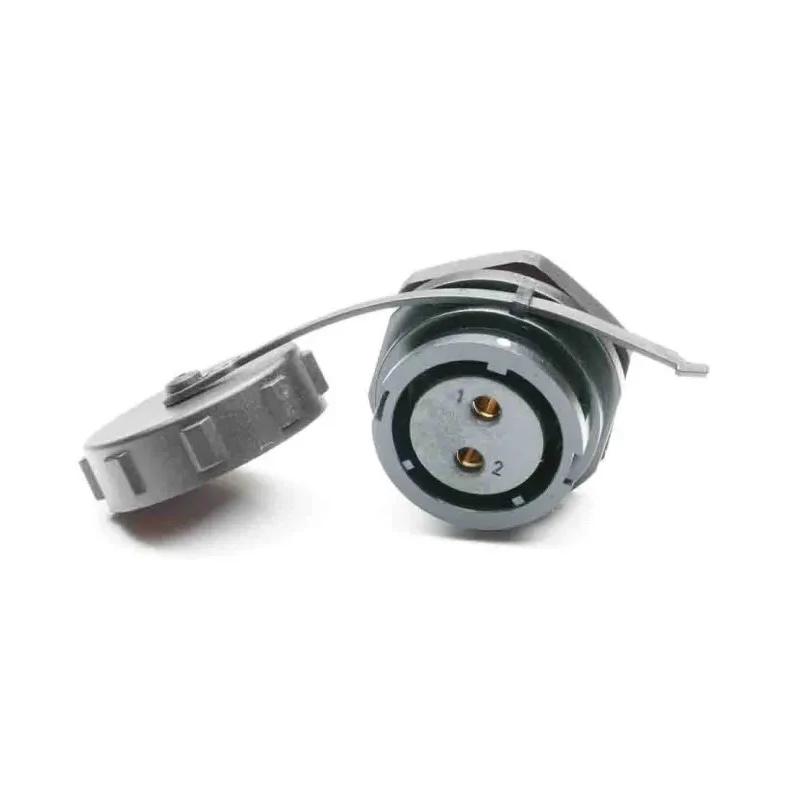

RS PRO Circular Connector, 2 Contacts, Front Mount, Socket Female, IP67 Protection, 30A Current, 500V Voltage, SY21 207-2373
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 30A |
| Model | 207-2373 |
| IP Rating | IP67 |
| Mount Type | Front |
| Housing Material | Polyamide 66, Polycarbonate |
| Contact Material | Brass |
| Series | SY21 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 2 |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Shell Size | 29 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- Rated for 30 amperes current and 500 volts voltage operation.
- Features a bayonet mating type for secure and quick coupling.
- Constructed with polyamide 66 and polycarbonate housing materials for extreme durability.
- Contact parts are made of brass with gold plating for corrosion resistance.
- Operates reliably within temperature range from -40°C to 85°C.
- Shell size of 29 mm with straight orientation for panel mount applications.
- Termination type is solder for reliable electrical connection.
- Meets industry standards without additional certifications and is manufactured in China.
Product Description
RS PRO 207-2373 circular connector is a robust industrial-grade connector designed for panel mount applications requiring high reliability and environmental protection. This front mount socket features 2 female contacts in a standard size with a bayonet mating interface ensuring quick and secure connections in automation, sensing, and industrial controls.
The connector supports up to 30A current and operates at a voltage of 500V, suitable for machinery and equipment requiring durable and efficient electrical connections. Its polyamide 66 and polycarbonate housing materials provide excellent resistance to moisture, UV, chemicals, and mechanical stresses while maintaining IP67 ingress protection rating for harsh environments.
Contact components are crafted from brass with gold plating to resist corrosion and maintain excellent electrical conductivity over the connector’s lifespan. Designed to operate in extreme temperature conditions ranging from -40°C to 85°C, the connector is ideal for demanding industrial and outdoor applications.
The solder termination type facilitates reliable wiring and ensures stable electrical performance. The bayonet coupling mechanism prevents miss-mating, enhancing safety and reducing installation time. The straight orientation and 29 mm shell size enable compatibility with standard panel mounting systems.
Typical applications of this RS PRO industrial circular connector include instrumentation, process control, robotics, assembly lines, factory automation, and other industrial automation environments where rugged, waterproof, and reliable connections are critical.
Rated for 30 amperes current and 500 volts voltage operation. Bayonet mating type ensures secure and easy connection. Durable materials polyamide 66 and polycarbonate protect against harsh conditions. Gold-plated brass contacts provide corrosion resistance and reliable conductivity.
Wide operating temperature range from -40°C to 85°C. IP67 rated for dust and water ingress protection. Solder termination type offers stable electrical connection. Standard size and straight orientation suitable for panel mounting.
Choose RS PRO components for tested quality and reliability in electronic industrial connectivity, available in the Industrial Circular Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 30 amperes and a voltage of 500 volts.
It has an IP67 rating, providing protection against dust and water ingress.
The housing is made from polyamide 66 and polycarbonate, while the contact parts are crafted from brass with gold plating for corrosion resistance.
It operates reliably within a temperature range from -40°C to 85°C.
The connector features a solder termination type for reliable electrical connection.
This model features 2 female contacts.
The shell size of this model is 29 mm.
It uses a bayonet mating type, ensuring secure and quick coupling.
Yes, it is designed for front mount applications, making it suitable for panel mounting.
Typical applications include instrumentation, process control, robotics, assembly lines, and factory automation.
The orientation of this model is straight, which is compatible with standard panel mounting systems.
This connector is manufactured in China.
