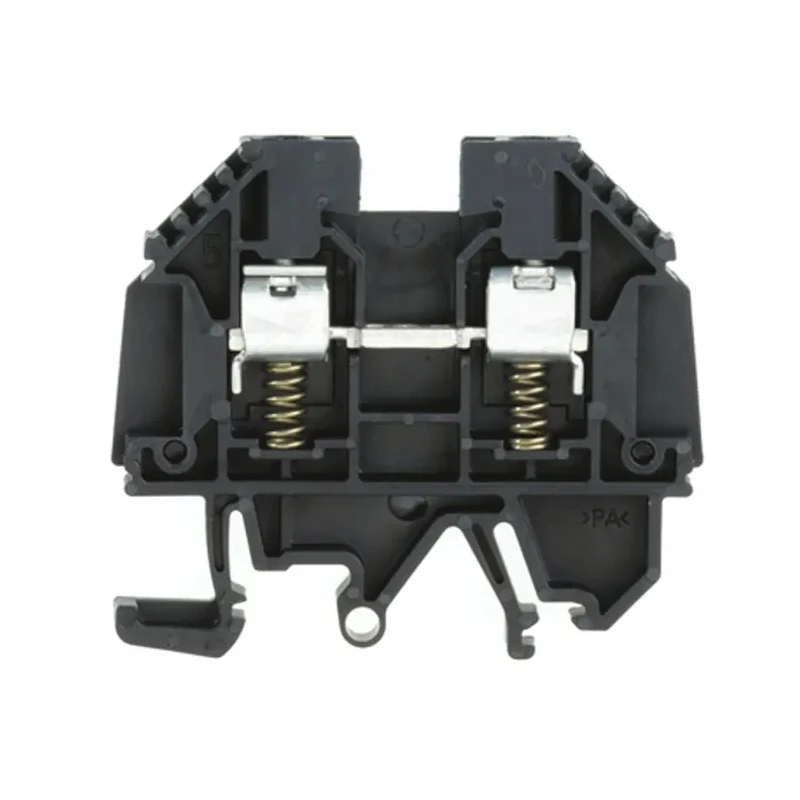

Weidmüller Black W Series 1-Level Feed Through Terminal Block Screw Connection 4mm² 41A 500V 9537510000

Weidmüller 9537510000 is a black feed-through terminal block from the W Series, designed for efficient and secure electrical connections in industrial and commercial environments. It supports a 1-level configuration with screw connection type, suitable for use on standard 'Top Hat' DIN rails.

With a voltage rating of 500V and current capacity of 41A, this terminal block accommodates wire sizes ranging from 26 AWG to 10 AWG with a cable cross-sectional area of 4mm². Its pitch of 6.1mm allows for compact and space-saving wiring assemblies.

Constructed from high-quality nylon 6.6, it boasts a continuous temperature rating of 120°C (with short-term resistance up to 180°C), electrical insulation, and is self-extinguishing to UL94V-0 standards. The material is free from cadmium and halogen substances, ensuring safety and environmental compliance.

The screw termination ensures reliable clamping of conductors, while the snap-on mounting system simplifies installation on symmetric 'Top Hat' DIN rails (BS5584:1978, EN 50022). This terminal block is touch-proof in accordance with BS 3042, enhancing operator safety during use.

Ideal for applications in electronic components, power and connector assemblies across industrial automation, manufacturing, and electrical distribution networks. Its robust design optimizes operational safety and facilitates planning in electrical panel construction.

This terminal block supports wire sizes from 26 AWG up to 10 AWG with a cable cross-sectional area of 4mm². It offers a pitch of 6.1mm suitable for compact DIN rail installations. Rated for a maximum current of 41A and voltage up to 500V ensuring high operational reliability.

Operates effectively within a temperature range from -50°C to 120°C. Constructed from durable nylon 6.6 material with UL94V-0 self-extinguishing rating and free from cadmium and halogen. Features snap-on mounting for easy installation on standard 'Top Hat' DIN rails (BS5584:1978, EN 50022).

Employs screw termination technology for reliable and safe electrical connections. Manufactured in Romania with compliance to safety and quality standards. Explore more electronic components and Terminal Blocks at EnvMart to find high-quality and reliable products for your industrial and commercial needs.
