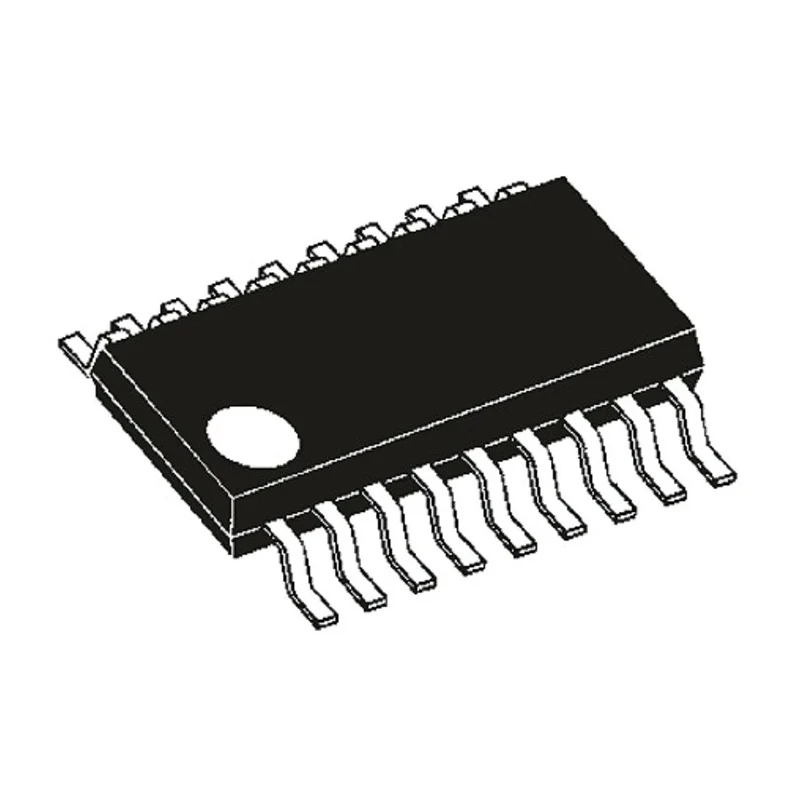

Microchip 8-Bit PIC Microcontroller 20 MHz 1kB FLASH 18-Pin SOIC PIC16F628A-E/SO

Microchip PIC16F628A-E/SO is an 8-bit microcontroller featuring the reliable PIC16F628A series architecture built for embedded system applications requiring moderate processing speed and memory capacity.

Operating at a maximum clock frequency of 20 MHz, this microcontroller delivers efficient performance with an 8-bit RISC architecture optimized for low power consumption. It contains 1kB of Flash program memory and 224 bits of RAM to handle firmware and runtime data efficiently.

The device is housed in an 18-pin SOIC package, suitable for surface mounting onto compact circuitry designs. It supports SPI communication interface, enabling connection with external peripherals and modules effectively.

With 33 configurable programmable input/output pins, it offers flexible interaction with sensors, actuators, and other hardware components. It integrates two analogue comparators and three timers (two 8-bit and one 16-bit) making it adaptable for timing, control, and measurement tasks in industrial, commercial, and consumer electronics.

This microcontroller fits well in applications requiring voltage supply between 2 V to 5.5 V and operates reliably within a temperature range of -40°C to 125°C, making it suitable for rugged environments.

This microcontroller operates up to 20 MHz with an 8-bit PIC core. Featuring 1kB FLASH program memory and 224-bit RAM for intermediate data processing needs. It is packaged in an 18-pin SOIC surface mount form factor for compact PCB integration.

The device supports SPI interface and includes 33 programmable I/O pins. Operating temperature ranges from -40°C to 125°C, suitable for industrial environments. Incorporates two analogue comparators and two 8-bit timers plus one 16-bit timer for timing/control applications.

Program memory type is Flash, ensuring reprogrammable and reliable code storage. Maximum supply voltage rating is 5.5 V with a minimum at 2 V to allow flexible power design. Maximum power dissipation is 800 mW for efficient power management.

Ideal for industrial control systems, automation, consumer electronics, and embedded applications requiring compact, efficient, and reliable microcontrollers. Explore more Microchip Microcontrollers at EnvMart for diverse embedded hardware solutions.
