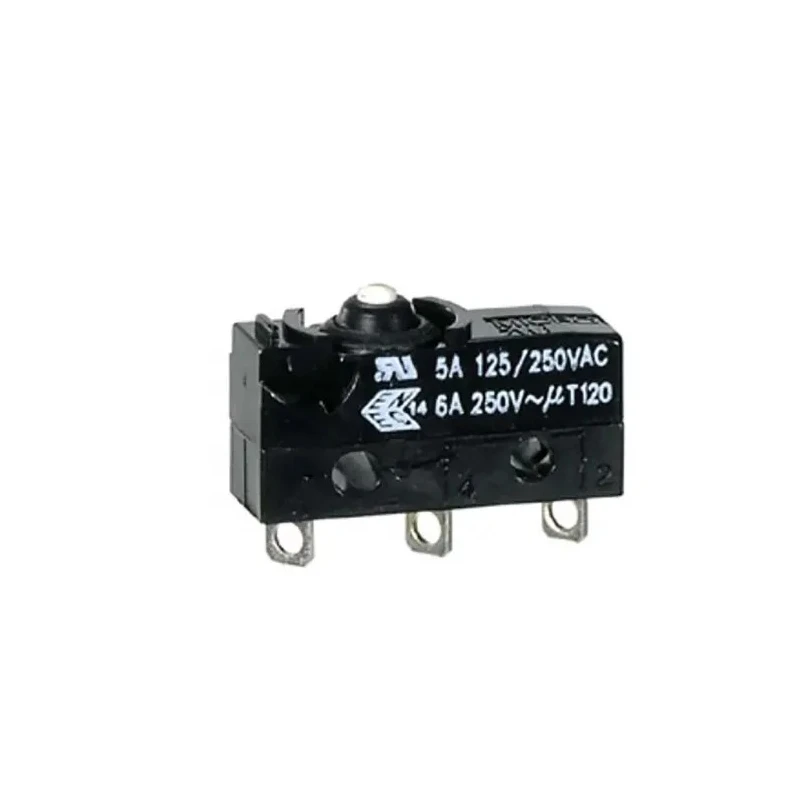

Honeywell Technologies Pin Plunger Micro Switch Solder Terminal 100mA 250V AC SPDT IP00 ZW10E70AD1
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Honeywell |
| Length | 19.8mm |
| Model | ZW10E70AD1 |
| Depth | 9.25mm |
| IP Rating | IP00 |
| Width | 6.4mm |
| Housing Material | Polybutylene Terephthalate |
| Series | ZW |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | 120°C |
| Terminal type | Solder |
| Standards/Approvals | UL, CQC, cUL, ENEC, RoHS |
| Switch Contact Current | 100mA |
| Operating Force | 150g |
| Mechanical Life | 1000000min |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
Key Features
- The pin plunger actuator enables sensitive and precise actuation.
- Solder terminal type supports direct soldering to PCB or wiring.
- Housing is made of durable polybutylene terephthalate providing heat resistance.
- Rated for operation up to 120°C and mechanical life of 1 million cycles.
- Contact current of 100mA suits low-power signal switching applications.
- SPDT contact configuration offers single-pole double-throw switching functionality.
- Compact subminiature design with dimensions of 19.8mm (L) x 6.4mm (W) x 9.25mm (D).
- Compliance with UL, CQC, cUL, ENEC, and RoHS standards ensures safety and material conformity.
Product Description
Honeywell ZW10E70AD1 is a subminiature pin plunger micro switch designed for precise and sensitive control in industrial and automation applications. This switch features a pin plunger actuator allowing direct linear actuation from cams or levers, making it ideal for confined spaces and position detection.
The switch incorporates a solder terminal type for easy assembly onto wiring or PCB tracks, supporting reliable electrical connections.
Constructed with a polybutylene terephthalate housing, this micro switch offers dimensional stability and heat resistance up to 120°C, enhancing durability under demanding conditions.
With a contact current rating of 100mA and contact AC voltage of 250V, it is suitable for low-power signal switching in control panels and electromechanical assemblies. Its SPDT contact configuration provides single-pole double-throw functionality, supporting versatile control signal designs.
Mechanical life is rated for 1 million cycles, promising longevity in repetitive switching operations. This micro switch complies with UL, CQC, cUL, ENEC, and RoHS certifications, indicating adherence to international safety and environmental standards.
Common industrial uses include limit-switch sensing in automated machinery, end-stop detection in small motors and actuators, and compact snap-action inputs for control panels. The pin plunger actuator delivers sensitive actuation with consistent response.
Solder terminals allow straightforward mounting and wiring integration. Durable PBT housing withstands elevated temperatures. Long mechanical life ensures reliable operation over extensive cycles. Conforms to multiple international safety and compliance standards.
Explore more Micro Switch solutions in the Electronics & Electricals category at EnvMart for reliable and precision switching components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this micro switch is 100mA, making it suitable for low-power signal switching applications.
This model can operate at temperatures up to 120°C, providing heat resistance for demanding applications.
The dimensions of this micro switch are 19.8mm in length, 6.4mm in width, and 9.25mm in depth.
It uses a pin plunger actuator, allowing for sensitive and precise actuation from cams or levers.
The micro switch features a single-pole double-throw (SPDT) contact configuration, enabling versatile control signal designs.
The housing is made of polybutylene terephthalate, which provides durability and heat resistance.
The mechanical life of this model is rated for 1 million cycles, ensuring longevity in repetitive switching operations.
It complies with several standards, including UL, CQC, cUL, ENEC, and RoHS, ensuring safety and material conformity.
This model features solder terminals, which support direct soldering to PCB or wiring for easy assembly.
The IP rating of this micro switch is IP00, indicating it is not protected against water or dust ingress.
This micro switch is manufactured in Taiwan.
Common applications include limit-switch sensing in automated machinery, end-stop detection in small motors, and control panels.
