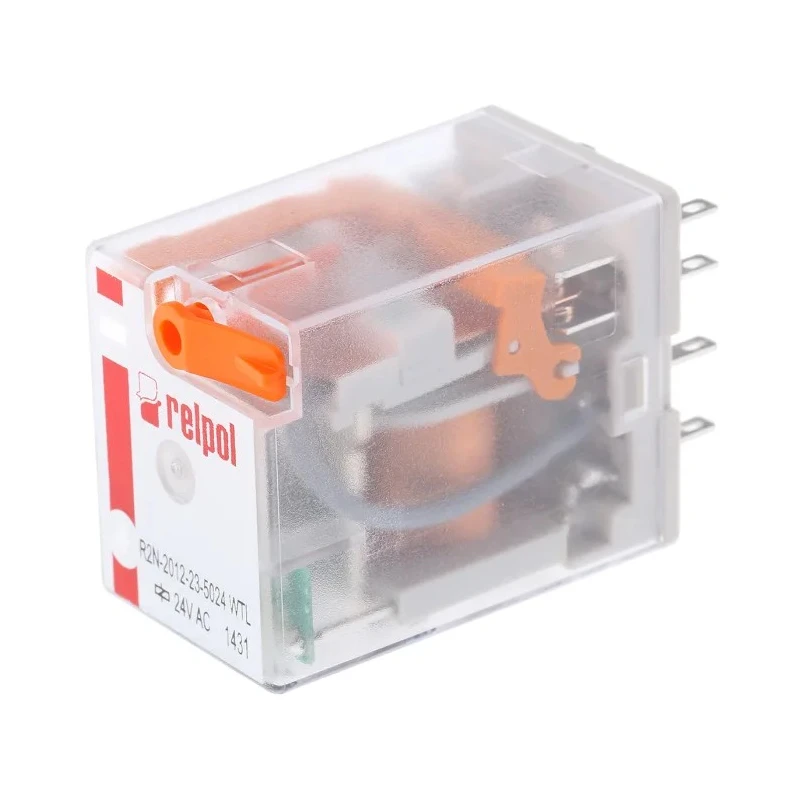

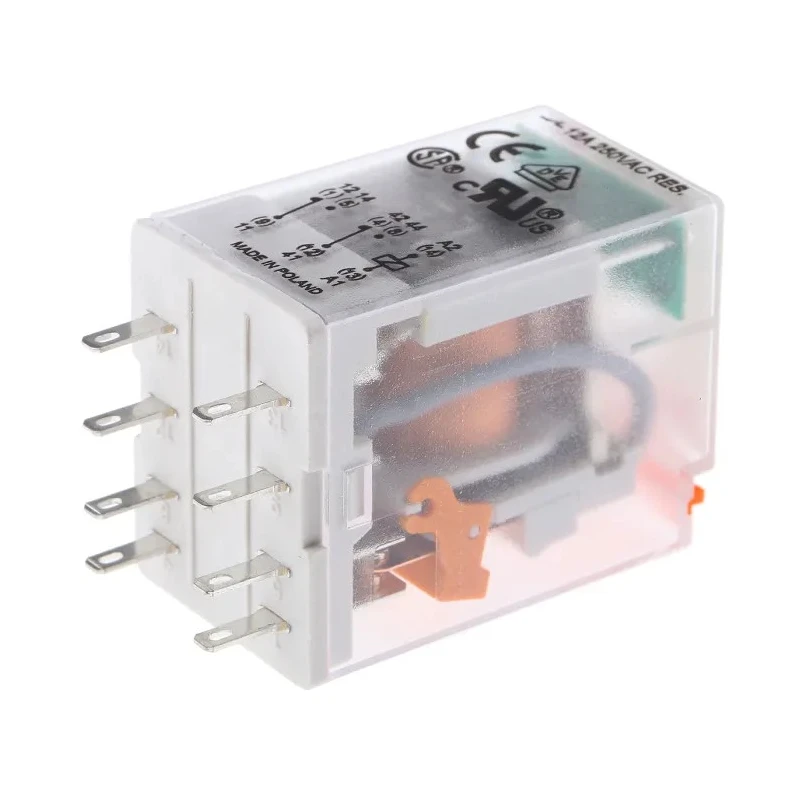

Relpol Surface Power Relay 24V Coil Voltage 12A Switching Current DPDT Contact Configuration R2N-2012-23-5024-WTL

Relpol R2N-2012-23-5024-WTL surface power relay offers robust performance for industrial and electrical automation applications requiring reliable switching with a 24V coil and 12A rated switching current. This DPDT (Double Pole Double Throw) relay supports both AC and DC switching voltages of up to 440V AC and 24V DC respectively, making it versatile for diverse circuit designs.

The relay's construction features a silver alloy contact material which ensures low contact resistance and longevity under repeated switching cycles. Its miniature footprint (27.5mm length, 21.2mm width, 35.6mm height) and plug-in terminal design facilitate easy installation and maintenance in control panels and automation systems.

Certified to CSA, UL, and UR standards, the R2N series relays are designed for industrial use, incorporating cadmium-free contacts and accommodating plug-in sockets with mechanical indicators and lockable front test buttons. The product operates within a temperature range from -40°C to +55°C, suitable for harsh operating environments.

This relay is ideal for applications in industrial automation, manufacturing control systems, HVAC control, power management, and electrical signal conditioning where compact size and reliable switching are critical.

Designed for surface mounting with plug-in terminal type. R2N series miniature industrial relay suitable for general applications. Switching voltages of 24V DC and 440V AC support diverse circuit requirements. Equipped with a silver alloy contact material for reliable conductivity and durability.

Operates reliably within -40°C to +55°C ambient temperature range. Coil resistance rated at 158 ohms with coil power consumption of 1.6W. Compact dimensions: length 27.5mm, width 21.2mm, height 35.6mm. Certified to CSA, UL, and UR standards ensuring quality and safety.

Choose the Relpol R2N-2012-23-5024-WTL for dependable power relay performance in industrial and automation electrical systems. Browse the full category of Power Relays on EnvMart for more specialized electrical components.
