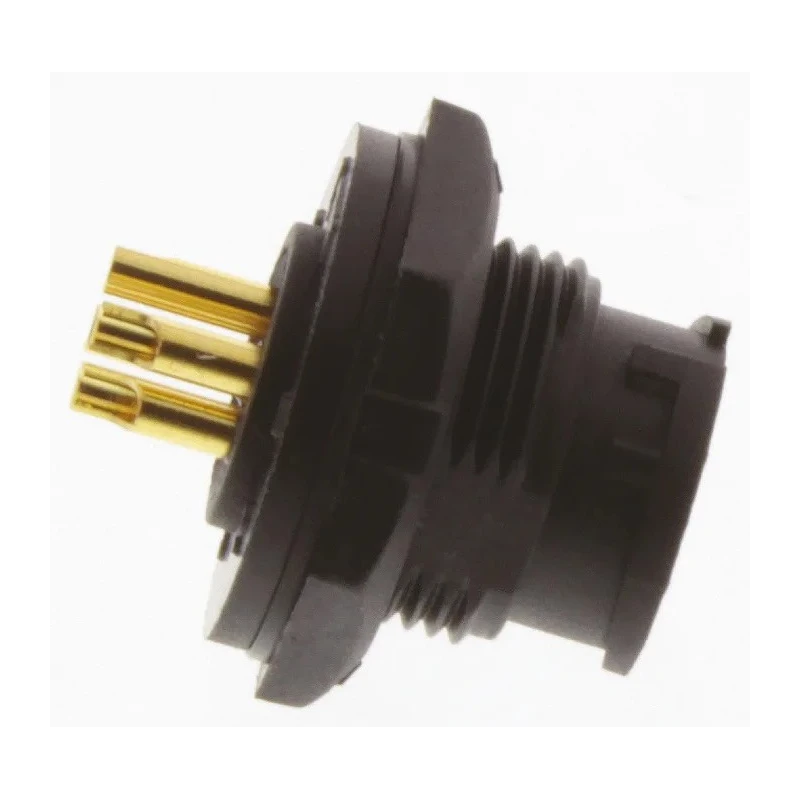

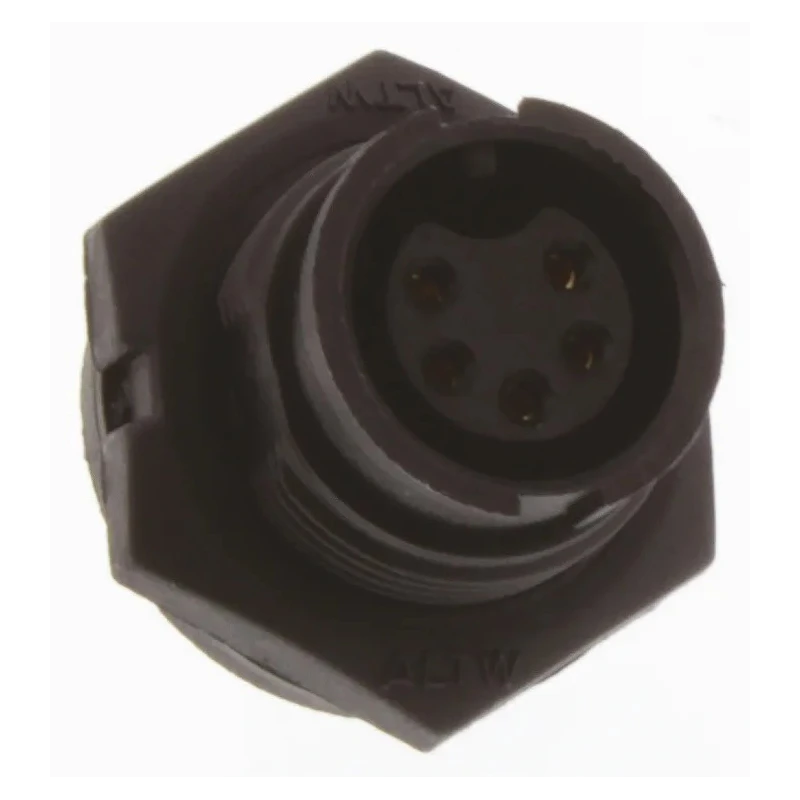

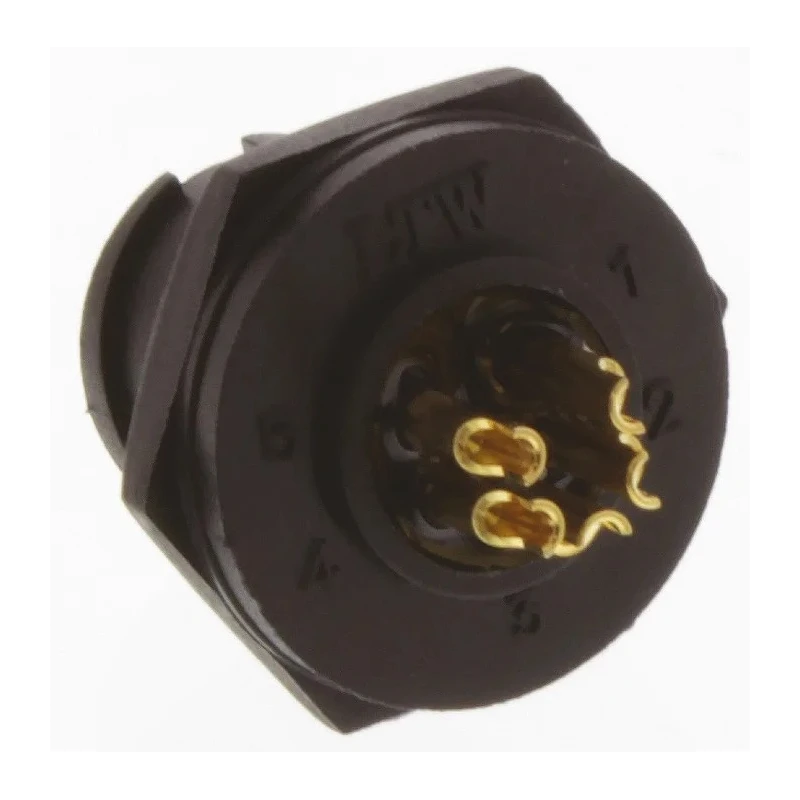

Amphenol Industrial Industrial Circular Connector Panel Mount 5 Contacts 5A 500V Nylon Housing Socket BD-05PMFS-LC7001
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500.0V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 5A |
| Model | BD-05PMFS-LC7001 |
| IP Rating | IP67 |
| Mount Type | Panel Mount, Threaded Mount |
| Housing Material | Nylon |
| Contact Material | Copper |
| Series | Ceres |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 5 |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Shell Size | 20.6 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- Constructed with gold-plated copper contacts for enhanced conductivity.
- Rated IP67 for protection against dust and water ingress.
- Operates reliably between -40°C and 105°C.
- Features bayonet mating type with a 2-point locking system.
- Suitable for panel thicknesses up to 4 mm without sealing cap.
- Durability tested for 1000 mating cycles.
- Shell size measures 20.6 mm with a straight orientation.
- Termination type is solder for secure connections.
Product Description
Amphenol Industrial BD-05PMFS-LC7001 is an Industrial Circular Connector designed for robust panel mount applications featuring a 5-contact socket configuration rated for 5A and 500V. The connector utilizes gold-plated copper contacts ensuring excellent electrical conductivity and corrosion resistance. Its nylon housing provides durability and environmental protection compliant with IP67 standards, making it suitable for severe conditions and outdoor environments.
Designed to withstand operating temperatures from -40°C to +105°C, this connector offers a reliable connection with a bayonet type mating system incorporating a 2-point locking mechanism for secure coupling and ease of assembly. The shell size of 20.6 mm and straight orientation make it ideal for panel mount scenarios where dependable electrical performance is critical.
The solder termination type allows for a strong, lasting electrical connection. This product is suitable for panel thicknesses up to 4 mm without requiring a sealing cap, enhancing its installation flexibility. Tested for durability through 1000 mating cycles, the connector is part of the Amphenol LTW series engineered to meet the demands of industrial, manufacturing, HVAC, and outdoor electrical systems.
Gold-plated copper contacts enhance conductivity and corrosion resistance. IP67-rated nylon housing ensures protection from dust and water ingress. Operating temperature range from -40°C to +105°C for versatile environmental use.
Bayonet locking type for secure and easy mating attachment. Solder termination for reliable electrical connections. Durability rated for 1000 mating cycles for long service life. Supports panel thickness up to 4 mm without sealing cap.
Shell size of 20.6 mm with straight connector orientation. Suitable for harsh industrial, outdoor, and manufacturing environments. Manufactured in China adhering to Amphenol LTW quality standards.
This connector is an optimal solution in industrial electronics, power distribution, manufacturing automation, and control systems. Explore the extensive range of Amphenol Industrial connectors on EnvMart for reliable, quality electrical connection products designed to meet stringent industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a current of 5A and a voltage of 500V.
It has an IP67 rating, providing protection against dust and water ingress.
The connector operates reliably within a temperature range of -40°C to +105°C.
It features a solder termination type for secure electrical connections.
The shell size measures 20.6 mm with a straight orientation.
This model has 5 contacts, configured as a female socket.
It utilizes a bayonet mating type with a 2-point locking system for secure coupling.
The housing is made of nylon, ensuring durability and environmental protection.
It is suitable for panel thicknesses up to 4 mm without requiring a sealing cap.
It has been durability tested for 1000 mating cycles.
This connector is designed for use in industrial, manufacturing, HVAC, and outdoor electrical systems.
It is manufactured in China adhering to Amphenol LTW quality standards.
