Microchip 8-Bit PIC Microcontroller PIC16F1784, 32 MHz, 7kB FLASH, 44-Pin TQFP PIC16F1784

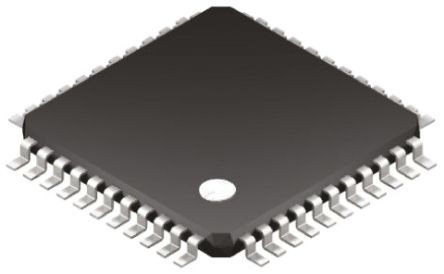

Microchip PIC16F1784 8-Bit PIC Microcontroller, model PIC16F1784, operates at a maximum clock frequency of 32 MHz. It features 7kB of FLASH program memory and a 44-Pin Thin Quad Flat Package (TQFP), making it suitable for compact embedded system designs.

This microcontroller boasts an 8-bit PIC device core with a 512-bit RAM size and a versatile set of communication interfaces including SPI, I2C, and Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART). The device supports up to 36 programmable input/output pins, providing flexibility for a variety of applications.

Designed for robust operation, it supports a wide operating voltage range from 1.8V to 5.5V and can work reliably in temperatures ranging from -40°C to 85°C. It includes a 15-channel 12-bit Analog to Digital Converter (ADC), an 8-bit Digital to Analog Converter (DAC), four analog comparators, and two timers, enhancing its utility in mixed-signal environments.

The device incorporates low-power XLP technology, advanced reset features including Power-On Reset (POR), Brown-Out Reset (BOR), and an Extended Watchdog Timer (WDT), and facilitates in-circuit serial programming and debugging for efficient development cycles.

The compact dimensions of 10mm length, 10mm width, and 1.05mm height in a surface mount configuration enable space-efficient deployment in industrial, automotive, consumer electronics, and instrumentation systems.

Features an 8-bit PIC architecture for efficient embedded processing. Includes 7kB FLASH program memory suitable for various applications. Supports SPI, I2C, and EUSART communication interfaces. Equipped with 36 programmable input/output pins for versatile connectivity.

Operates within a voltage range of 1.8V to 5.5V ensuring flexible power options. Offers 512 bits of RAM and 14 channels of 12-bit ADC for analog-to-digital conversions. Integrated 8-bit digital-to-analog converter and multiple analog comparators for enhanced signal processing.

Reliable operation over a temperature range of -40°C to 85°C. Compact 10mm x 10mm x 1.05mm TQFP surface mount package facilitates PCB space-saving designs. Complies with RoHS standards ensuring environmentally safe production.

This microcontroller is ideal for assembly in industrial automation, consumer electronics, automotive control, and other embedded system projects requiring reliable 8-bit processing with rich peripheral support.
