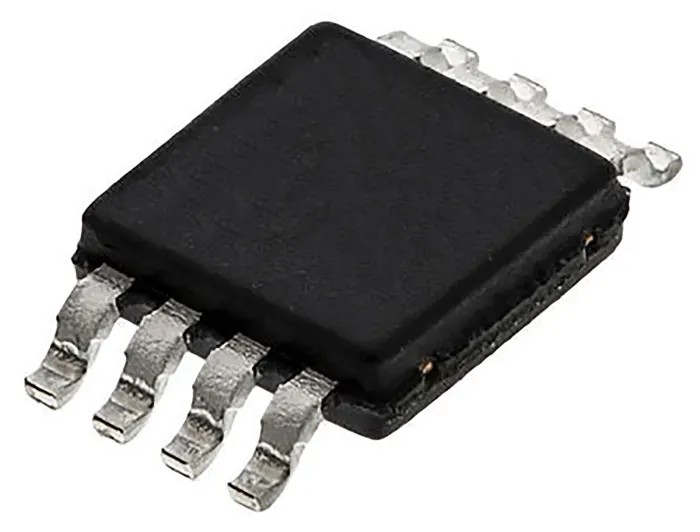

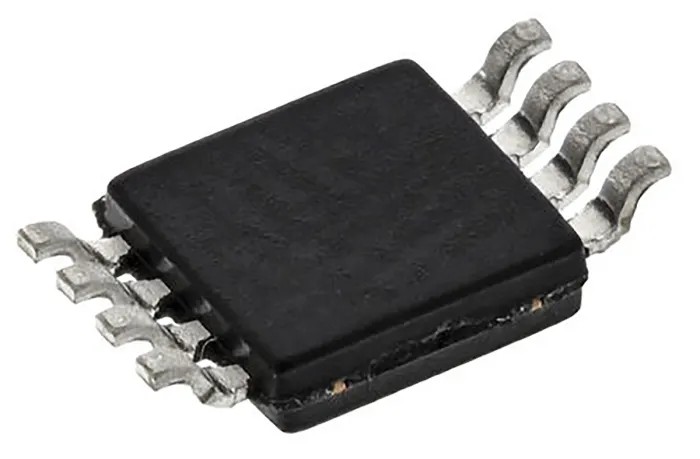

Microchip 8-bit PIC Microcontroller 32 MHz 3.5kB FLASH 8-Pin MSOP PIC12LF1552
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.95mm |
| Length | 3mm |
| Model | PIC12LF1552 |
| Width | 3mm |
| Mount Type | Surface |
| Series | PIC12LF1552 |
| Maximum Operating Temperature | 85°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates with a maximum clock frequency of 32 MHz.
- Features 3.5kB of flash program memory and 256 bits of RAM.
- Includes 5 channels of 10-bit analog to digital converters (ADCs).
- Has 25 programmable input/output pins with 1 x 5 bit DAC.
- Supports In-Circuit Serial Programming (ICSP) for easy firmware updates.
- Operating voltage ranges from 1.8V to 5.5V ensuring flexibility.
- Compact 8-pin MSOP surface mount package measuring 3 mm by 3 mm.
- Temperature tolerance from -40°C to 85°C suitable for diverse environments.
Product Description
Microchip PIC12LF1552 is an 8-bit PIC microcontroller featuring a high-performance enhanced mid-range core with a 16-level deep hardware stack and 49 instructions. Operating at up to 32 MHz, it offers 3.5 Kbytes of flash program memory and 256 bytes of data RAM.
This microcontroller is housed in an 8-pin MSOP surface mount package measuring 3 mm in length, 3 mm in width, and 0.95 mm in height, making it compact and ideal for space-constrained designs.
It includes multiple peripherals such as 5 channels of 10-bit ADCs, 2 analog comparators, 1 x 5 bit DAC, 1 timer, and a hardware capacitive voltage divider (CVD) module. The device supports In-Circuit Serial Programming (ICSP) for efficient programming and firmware updates.
Designed to operate over a wide voltage range from 1.8V to 5.5V and temperature range from -40°C to 85°C, the PIC12LF1552 is suitable for automotive and general industrial applications conforming to ISO/TS 16949 standards and RoHS compliance.
Maximum clock frequency of 32 MHz provides enhanced processing speed up to 8 MIPS. Flash program memory size is 3.5kB with data RAM of 256 bits supporting efficient data storage. Includes 25 programmable input/output pins for flexible interfacing.
Supports RISC instruction set architecture ensuring efficient execution. Compact MSOP package for surface mount applications with stable physical dimensions. On-board peripherals enhance analog and timing capabilities. Low power consumption with maximum power dissipation of 800mW.
Meets automotive quality standards and environmental regulations.
This microcontroller is widely used in electronic components, semiconductor sectors, microcontroller units, and embedded systems development. It is ideal for applications requiring compact, low-power, and high-performance microcontrollers in automotive, industrial control, and consumer electronics.
Explore more Microcontroller products from Microchip and other leading brands at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz, providing enhanced processing speed.
It features a program memory size of 3.5 kB, allowing for efficient data storage and execution of programs.
The PIC12LF1552 operates over a voltage range of 1.8V to 5.5V, ensuring flexibility for various applications.
This model includes 25 programmable input/output pins, which provide flexible interfacing options.
The microcontroller is housed in an 8-pin MSOP package measuring 3 mm in length, 3 mm in width, and 0.95 mm in height.
It includes 5 channels of 10-bit analog to digital converters (ADCs) and 2 analog comparators for enhanced analog processing capabilities.
The operating temperature range for this model is from -40°C to 85°C, making it suitable for diverse environments.
Yes, it supports In-Circuit Serial Programming (ICSP) for easy firmware updates and efficient programming.
The maximum power dissipation for this microcontroller is 800 mW, which helps in managing power consumption effectively.
This microcontroller conforms to the ISO/TS 16949 automotive quality standard, ensuring reliability in automotive applications.
It utilizes a RISC instruction set architecture, which allows for efficient execution of instructions.
The microcontroller comes in a compact MSOP (Mini Small Outline Package) suitable for surface mount applications.
