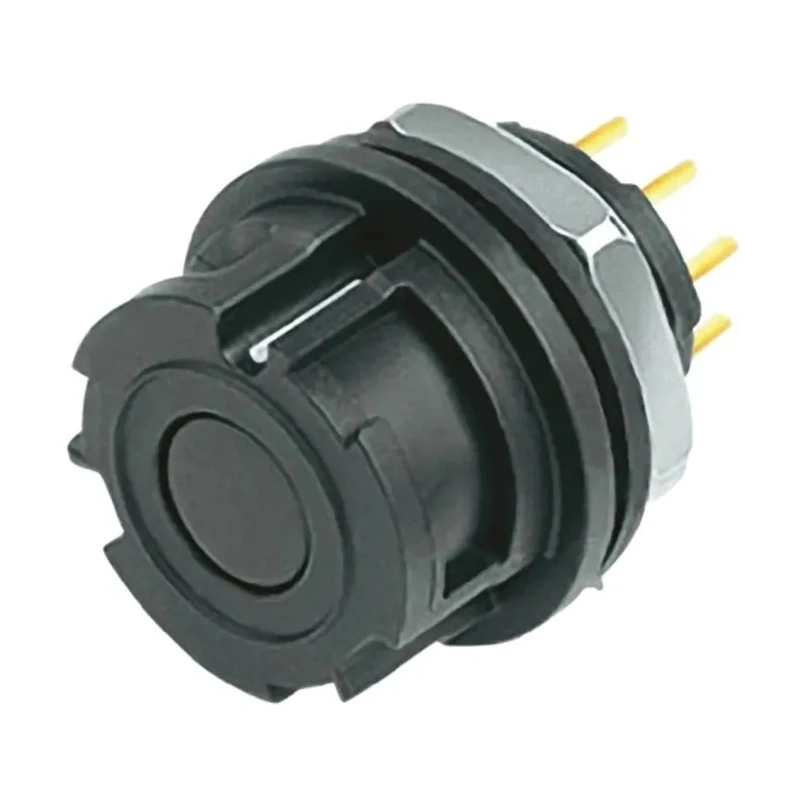

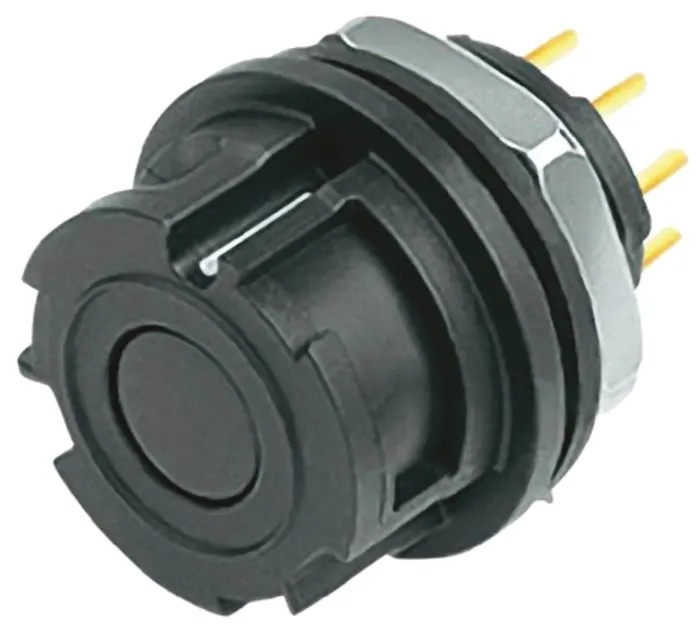

binder Circular Connector 8 Contacts Panel Mount Miniature Socket Female IP67 770 Series 09-0774-090-08
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 175.0V |
| Brand | binder |
| Orientation | Straight |
| Current | 2A |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Polymer |
| Contact Material | Bronze |
| Series | 770 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Shell Size | 15 mm |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Plug/Socket | Socket |
Key Features
- This miniature socket female connector provides an IP67 rated, touch-proof enclosure.
- It supports a voltage rating of 175 V and a current rating of 2 A.
- The connector uses a reliable bayonet locking mating type ensuring secure connections.
- Constructed with a polymer housing and gold-plated bronze contacts for durability.
- Operating temperature ranges from -25°C to 85°C suitable for various environmental conditions.
- Termination is via solder type for secure electrical connection.
- The shell size is 15 mm with a straight orientation to facilitate installation.
- Designed in Germany to meet high industrial standards.
Product Description
binder 09-0774-090-08 Circular Connector is an industrial-grade miniature panel mount socket connector with 8 contacts designed for demanding environments.
This 770 Series connector offers an IP67 rating providing dust-tight and water ingress protection, achieved through a unique self-sealing design maintained when unmated. The female socket contacts are gold-plated bronze, ensuring excellent conductivity and corrosion resistance, housed within a robust polymer shell measuring 15 mm in diameter.
Operating voltages reach up to 175 volts with a current capacity of 2 amperes. The connector features a quick and secure bayonet locking system that supports over 5000 mating cycles, well-suited for industrial, automation, and electronic equipment applications requiring dependable electrical connections.
Its solder termination type provides firm and reliable cable attachment, suitable for assembly processes needing durable electrical interfaces. The connector's operating temperature range of -25°C to 85°C allows use in a broad spectrum of industrial and outdoor scenarios, maintaining performance under thermal stress.
Manufactured in Germany, this product meets stringent quality criteria for Industrial Circular Connectors and is ideal for panel mounting within machinery, control systems, and instrumentation.
Miniature panel mount socket with 8 gold-plated contacts for superior performance. IP67 rated sealing for harsh and dusty environments. Bayonet locking mechanism for secure and easy mating cycles. Polymer housing combines durability with lightweight design.
Suitable for voltages up to 175 V and currents up to 2 A. Operating temperature range from -25°C to 85°C. Solder termination providing stable electrical connections. Designed for industrial, automation, and electronic uses.
Manufactured in Germany with high quality standards. Explore the wide range of circular connectors and related electrical components available on EnvMart for your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 175 V and a current rating of 2 A.
It has an IP67 rating, providing dust-tight and water ingress protection.
The operating temperature range is from -25°C to 85°C, making it suitable for various environmental conditions.
This connector features 8 contacts, designed for reliable electrical connections.
It uses a solder termination type for secure electrical connections.
The housing is made of polymer, and the contacts are gold-plated bronze for enhanced conductivity and corrosion resistance.
The shell size is 15 mm in diameter, facilitating panel mounting.
It features a bayonet locking mechanism, ensuring secure connections and supporting over 5000 mating cycles.
It is manufactured in Germany, adhering to high industrial standards.
The connector has a straight orientation, which aids in installation.
It is designed for use in industrial, automation, and electronic equipment applications that require dependable electrical connections.
This connector is part of the 770 Series, known for its industrial-grade specifications.
