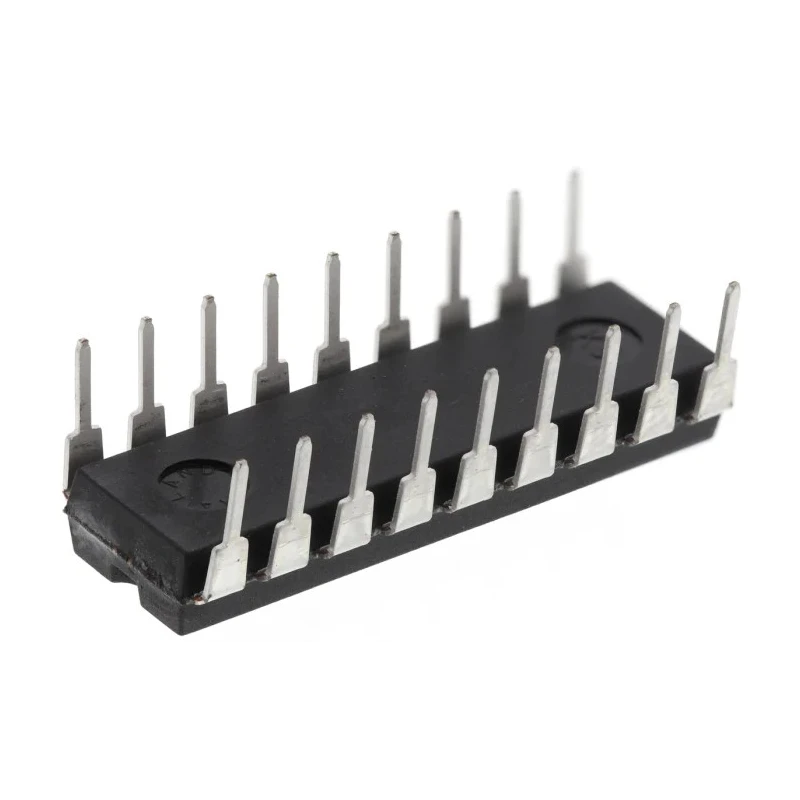

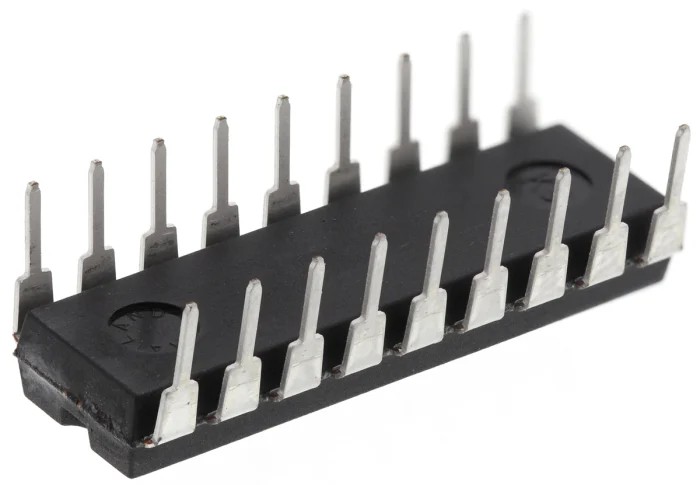

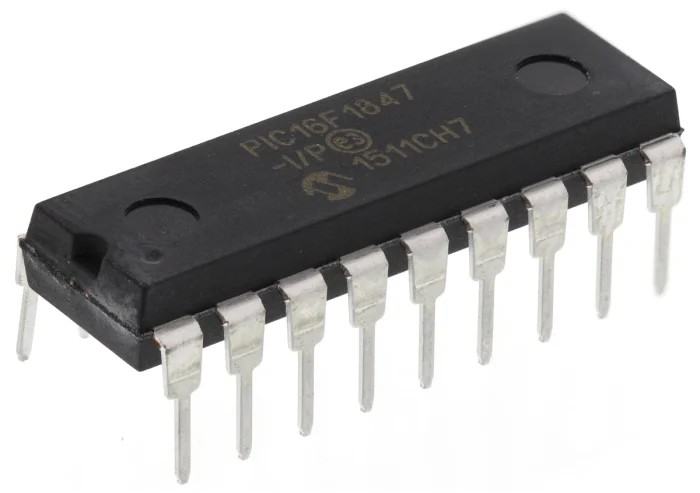

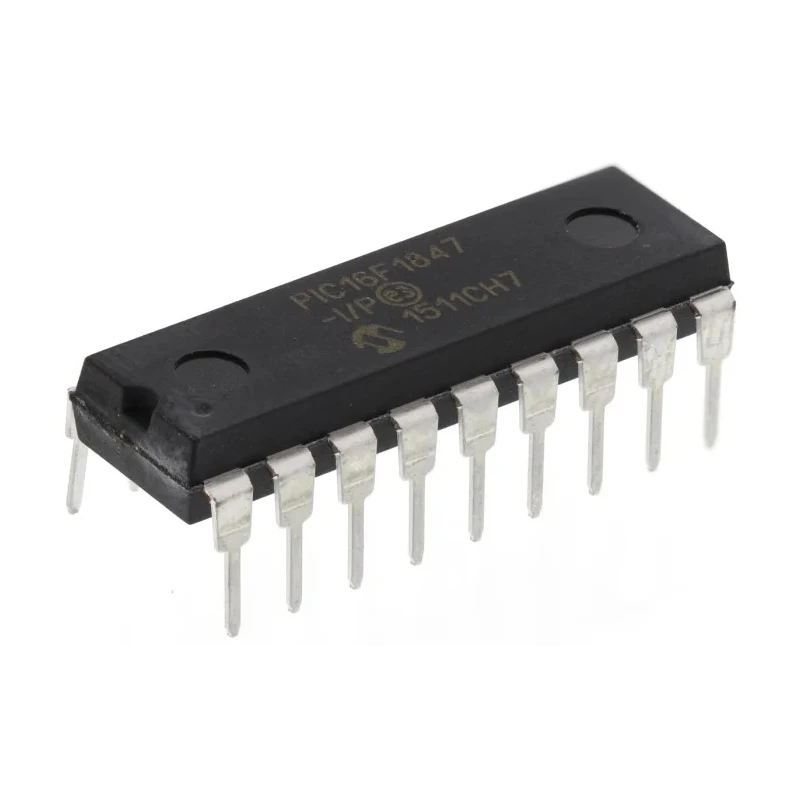

Microchip 8-Bit PIC Microcontroller 40 MHz, 8kB FLASH, 1kB RAM, 18-Pin PDIP PIC16F1847-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 23.37mm |
| Model | PIC16F1847-I/P |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | PIC16F1847 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Interface Type | EUSART |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 33 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 12 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with an 8-bit PIC architecture optimized for embedded applications.
- Features a maximum clock speed of 40 MHz enabling efficient processing.
- Includes 8kB of Flash program memory and 1kB RAM for reliable data handling.
- Equipped with 33 programmable input/output pins for flexible interfacing.
- Supports through-hole PDIP mounting with 18 pins for easy PCB integration.
- Operating voltage ranges from 2V minimum to 5.5V maximum ensuring broad compatibility.
- Includes 12 channel 10-bit Analog to Digital Converter (ADC) modules.
- Designed for operation across a temperature range from -40°C to 85°C.
Product Description
The Microchip PIC16F1847-I/P is an advanced 8-bit microcontroller designed for versatile embedded system applications. Featuring a 40 MHz maximum clock frequency and 8kB of flash memory, this microcontroller combines speed and memory capacity suitable for demanding processing tasks. Packaged in an 18-pin PDIP form factor, it offers through-hole mounting compatibility making it ideal for both prototyping and production.
This device implements Microchip's enhanced PIC mid-range architecture, including a 16-level deep hardware stack and 49 instruction set, facilitating efficient program execution. It supports up to 33 programmable I/O pins, providing extensive interfacing options with peripheral components.
The PIC16F1847-I/P operates reliably across a range of temperatures from -40°C to 85°C and supports a supply voltage between 2V and 5.5V, suitable for varied power environments. Its built-in peripherals include a 12-channel 10-bit ADC for analog signal processing, timers, comparators, and communication interfaces like EUSART, SPI, and I2C buses.
Other integral features include low power dissipation rated at 1W maximum and specialized modules such as mTouch capacitive sensing and data signal modulation, enabling developers to implement complex applications with enhanced functionality.
Designed for industrial, commercial, and laboratory use, this microcontroller is perfectly suited for embedded computing needs requiring robust control, precise timing, and flexible input/output capabilities.
Operates on enhanced mid-range PIC16F architecture delivering efficient processing. Provides multiple communication interfaces including EUSART, SPI, and I2C. Equipped with 12-bit Analog to Digital Converter channels for precise analog input signal acquisition.
Supports In-Circuit Serial Programming (ICSP) and optional debugging through In-Circuit Debug (ICD) headers. Incorporates power management features including Brown-Out Reset and Watchdog Timer for reliability.
This microcontroller series is suitable for embedded system design in fields such as automation, consumer electronics, and instrumentation. For additional technical details and downloads, users can refer to Microchip’s official datasheets and technical resources.
Explore EnvMart for a wide range of Microchip Microcontrollers and related semiconductor products to fit diverse application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz, enabling efficient processing for embedded applications.
The PIC16F1847-I/P features 8kB of FLASH program memory, providing ample space for code storage.
This microcontroller is equipped with 33 programmable I/O pins, allowing for flexible interfacing with various components.
It operates within a supply voltage range of 2V to 5.5V, ensuring broad compatibility with different power environments.
This model supports through-hole mounting with an 18-pin PDIP package type, making it suitable for easy PCB integration.
The PIC16F1847-I/P is designed to operate reliably across a temperature range from -40°C to 85°C.
It includes a 12-channel 10-bit Analog to Digital Converter (ADC), timers, comparators, and communication interfaces like EUSART, SPI, and I2C.
The dimensions of this microcontroller are 23.37mm in length, 7.11mm in width, and 4.95mm in height.
This microcontroller includes 1 timer for timing operations within embedded applications.
The maximum power dissipation for the PIC16F1847-I/P is rated at 1W, ensuring efficient power management during operation.
It utilizes a RISC instruction set architecture, which facilitates efficient program execution.
The country of origin for this microcontroller is India.
