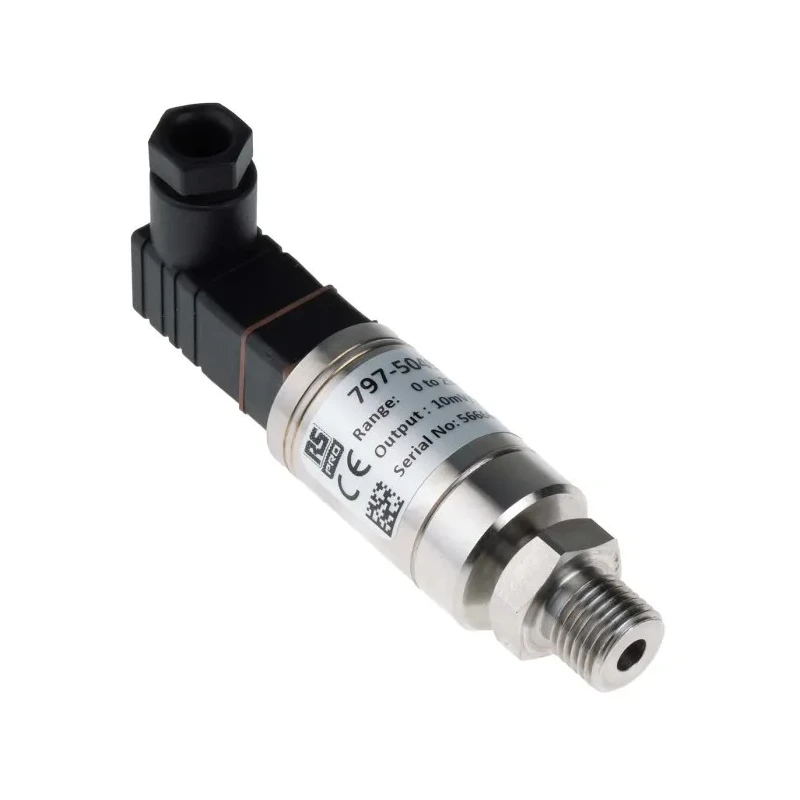

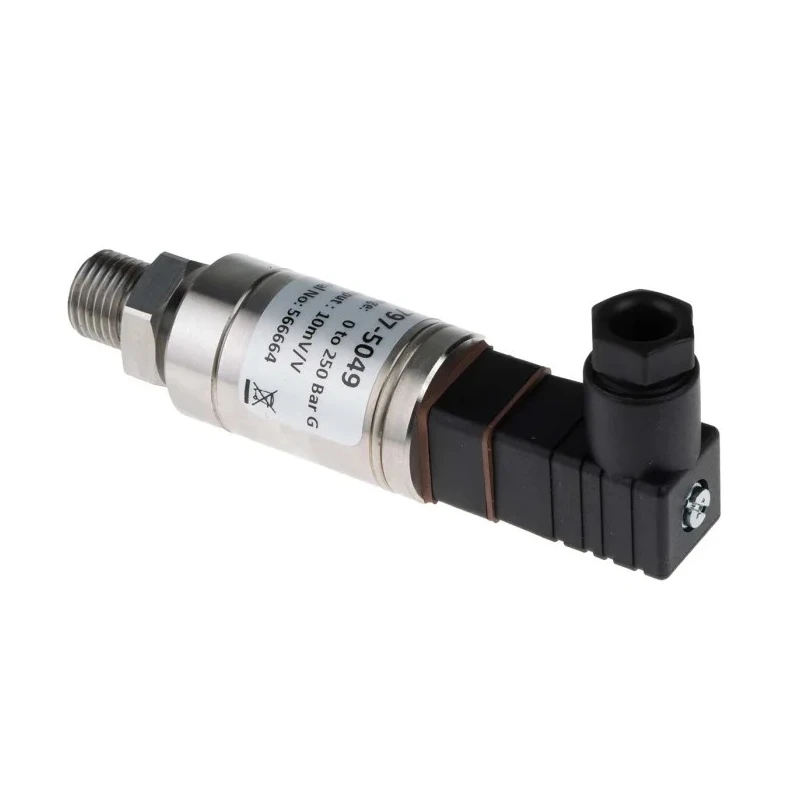

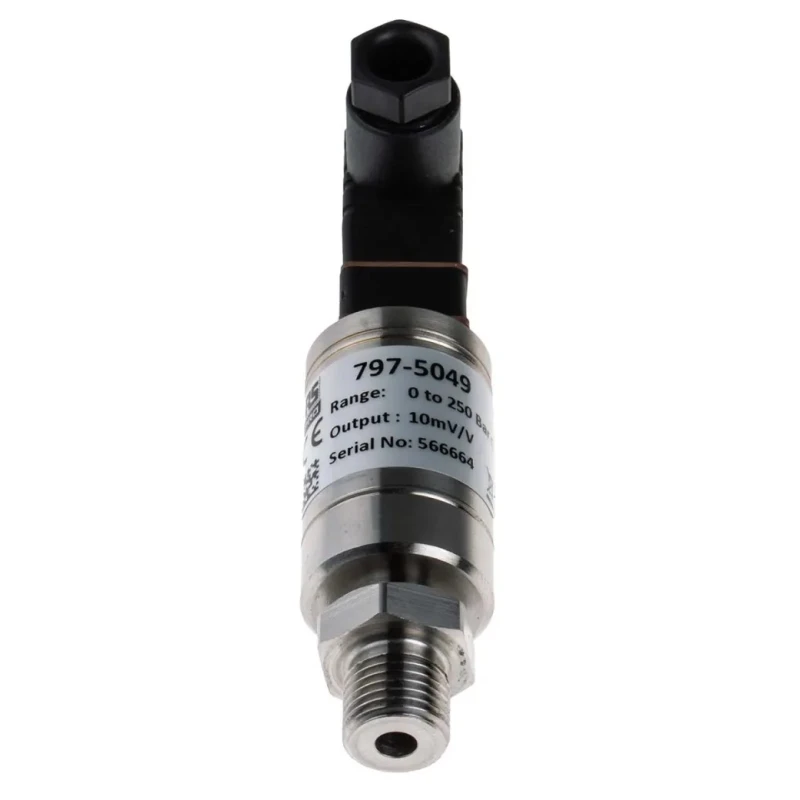

RS PRO Industrial Pressure Sensor, Voltage Output, Gauge Reading, 0 to 250 bar, ±0.25% Accuracy, Stainless Steel 797-5049
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | RS PRO |
| Model | 797-5049 |
| IP Rating | IP65 |
| Mount Type | Threaded |
| Housing Material | Stainless Steel |
| Output type | Voltage |
| Series | RS PRO |
| Maximum Operating Temperature | 135°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | DIN |
| Standards/Approvals | CE EMC directive EN 61326-1:2013 |
| Maximum Pressure Measurement | 250bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 32V |
| Minimum Supply Voltage | 9V |
| Pressure Reading Type | Gauge |
| Standards/Approvals CE EMC directive EN 61326-1 | 2013 |
| RS PRO Pressure Sensor, 0bar Min, 250bar Max, Analogue OutputBrand | RS PRO |
Key Features
- The sensor features a stainless steel housing and ceramic diaphragm for aggressive media compatibility.
- It uses a piezo-resistive thick film ceramic element with voltage output for accurate pressure sensing.
- Suitable for wide industrial applications including temperature testing, process control, automation, and industrial measurement.
- Threaded BSP 1/4 mount with a DIN terminal and M12 4-pin connector ensures reliable installation and connectivity.
- Operating temperature range spans from -20°C up to 135°C with IP65 rated protection against dust and water ingress.
- Power supply range is from 9V minimum up to 32V maximum to support diverse control systems.
- The compact and rugged design facilitates installation in harsh environments and flexible position installation.
- Media wetted parts include stainless steel housing and ceramic diaphragm with Viton O-ring seals to withstand various fluids and gases.
Product Description
RS PRO 797-5049 Industrial Pressure Sensor offers highly accurate gauge pressure measurement with a range of 0 to 250 bar and ±0.25% accuracy, ideal for demanding industrial environments requiring precise pressure monitoring.
Equipped with a piezo-resistive thick film ceramic sensor housed in stainless steel 316L, this Pressure Sensor ensures excellent media compatibility and corrosion resistance for application with air, water, gases, and other fluids.
Its compact and robust construction includes a threaded BSP 1/4 mount and DIN terminal with an M12 4-pin connector facilitating flexible installation and dependable electrical connection in automation and control systems.
Designed for harsh operating conditions, the 797-5049 supports a wide operating temperature range (-20°C to 135°C) and features an IP65 ingress protection rating against dust and water, making it suitable for use in industrial measurement, process control, temperature testing facilities, and automation.
The sensor is powered from 9V to 32V supply voltages, supporting integration with a variety of industrial equipment. The ceramic Al2O3 diaphragm combined with Viton O-ring seals provides durable media wetted parts ensuring long-term reliability.
Certified to CE EMC directive EN 61326-1:2013 standards, the sensor meets stringent electromagnetic compatibility and safety requirements. The device boasts an operational life exceeding 100 million cycles and high insulation resistance (over 50M ohms at 50 Vdc), further enhancing reliability in demanding applications.
The sensor is compact and rugged with stainless steel housing for enhanced durability. Piezo-resistive ceramic sensor technology delivers precise and stable pressure readings. Threaded BSP 1/4 mount and M12 4-pin connector enable versatile installation.
Wide supply voltage range from 9V to 32V for flexible system integration. IP65 rated protection for dust and water resistance in harsh environments. Operating temperature from -20°C to 135°C to cover a broad range of industrial conditions.
Media compatible parts including ceramic diaphragm and Viton O-ring seals. CE compliant ensuring product safety and performance standards. Designed for industrial applications such as process control, temperature testing, and automation.
Long service life with operational cycles exceeding 100 million.
For engineers and technicians needing reliable and accurate pressure sensing solutions, the RS PRO 797-5049 sensor represents a solid choice suitable for various industrial, automation, and process control environments. Explore more from RS PRO and related sensors at EnvMart for enhanced industrial instrument options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a pressure measurement range from 0 to 250 bar, suitable for various industrial applications.
The accuracy of this sensor is ±0.25%, ensuring precise pressure readings in demanding environments.
It provides a voltage output, which is compatible with various industrial control systems.
The operating temperature range spans from -20°C to 135°C, making it suitable for a wide array of industrial conditions.
It features a threaded BSP 1/4 mount, allowing for flexible installation options.
The media wetted parts include a stainless steel housing and a ceramic diaphragm, which provide compatibility with various fluids and gases.
It has an IP65 rating, ensuring protection against dust and water ingress in harsh environments.
The sensor operates with a supply voltage range from 9V to 32V, accommodating different control systems.
It uses a DIN terminal type for reliable electrical connections in automation and control applications.
It is certified to the CE EMC directive EN 61326-1:2013 standards, ensuring compliance with electromagnetic compatibility and safety requirements.
The sensor boasts an operational life exceeding 100 million cycles, contributing to its reliability in industrial applications.
This pressure sensor is suitable for applications such as process control, temperature testing, and automation in industrial settings.
