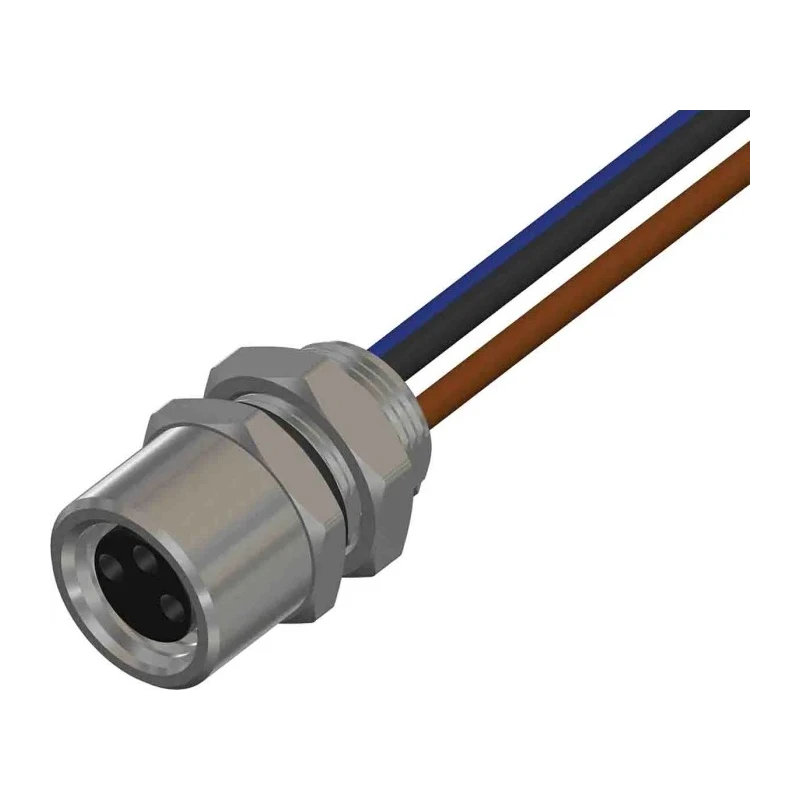

RS PRO Industrial Circular Connector 3 Contacts Front Socket Female M8 Connector Threaded IP67 CPF08 Series IP67
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 60V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 3A |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Front |
| Housing Material | Brass |
| Contact Material | Brass |
| Series | CPF08 |
| Termination Type | Clamp |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 9.6 mm |
| Mating Type | Threaded |
| Connector Size | M8 |
| Plug/Socket | Socket |
| Coding | A |
Key Features
- Features a brass nickel-plated housing with neoprene O-ring for excellent durability.
- Industry-standard A coding prevents miss-mating ensuring correct connections.
- Rated IP67, the connector provides protection against moisture, dust, and harsh environmental conditions.
- Supports 3A current at 60V voltage for reliable electrical performance.
- Suitable for panel mounting in sensing and automation industrial environments.
- Simple screw clamp termination for quick and efficient installation.
- Operates reliably between -25°C to 75°C indicating suitability across varied climates.
- Gold-plated brass contacts ensure excellent conductivity and corrosion resistance.
Product Description
RS PRO IP67 Industrial Circular Connector, model IP67, is a high-quality 3-contact, front mount socket female M8 connector designed for robust industrial use. Its brass nickel-plated housing with neoprene O-ring provides IP67-rated protection, making it suitable for harsh environments exposed to moisture, dust, chemicals, and oils. The connector is industry-coded with an A coding standard, preventing incorrect connections during installation.
Rated for 3 amperes at 60 volts, this connector operates reliably within a temperature range of -25°C to 75°C, making it versatile across diverse industrial and manufacturing scenarios. The threaded mating interface ensures secure, vibration-resistant connections, essential in production and automation systems.
The connector features gold-plated brass contacts enhancing conductivity and corrosion resistance, secured via a screw clamp termination for easy installation, saving valuable setup time. It is ideally suited for panel mounting in sensory and automation applications in factory automation, process control, robotics, and instrumentation systems.
Industrial circular connectors like this RS PRO model are built to withstand extreme temperature fluctuations, moisture ingress, and mechanical vibrations, guaranteeing signal integrity and power transmission quality in demanding scenarios. This particular connector is part of the CPF08 series offering reliable performance in industrial automation contexts.
Brass nickel-plated housing with neoprene O-ring ensures IP67 protection. 3 gold-plated brass contacts provide excellent conductivity and durability. Threaded mating type for secure and reliable connections. Clamp termination allows quick and user-friendly installation.
Operating temperature range from -25°C to 75°C suitable for harsh environments. Industry-standard A coding prevents misconnection. Designed for panel mounting in automation and sensor systems. Supports 3A current at 60V voltage for rugged industrial applications.
This industrial circular connector is an essential component for robust and reliable connections in automation, manufacturing, instrumentation, and factory floor robotics applications. It delivers consistent electrical performance with enhanced protection, longevity, and ease of use. Browse our wide range of Industrial Circular Connectors on EnvMart to find compatible connectors and accessories for your systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current of 3A at a voltage of 60V.
It is rated IP67, providing protection against moisture and dust in harsh environments.
The connector operates reliably between -25°C to 75°C, making it suitable for various climates.
This unit features 3 contacts, designed for reliable connections in industrial applications.
It has a brass nickel-plated housing with gold-plated brass contacts, enhancing conductivity and corrosion resistance.
It uses a clamp termination type for quick and efficient installation.
Yes, it is designed for panel mounting, making it ideal for automation and sensor systems.
It features industry-standard A coding, which prevents incorrect connections during installation.
The mating type is threaded, ensuring secure and vibration-resistant connections.
The shell size of this connector is 9.6 mm.
The country of origin for this connector is India.
It is suitable for applications in factory automation, process control, robotics, and instrumentation systems.
