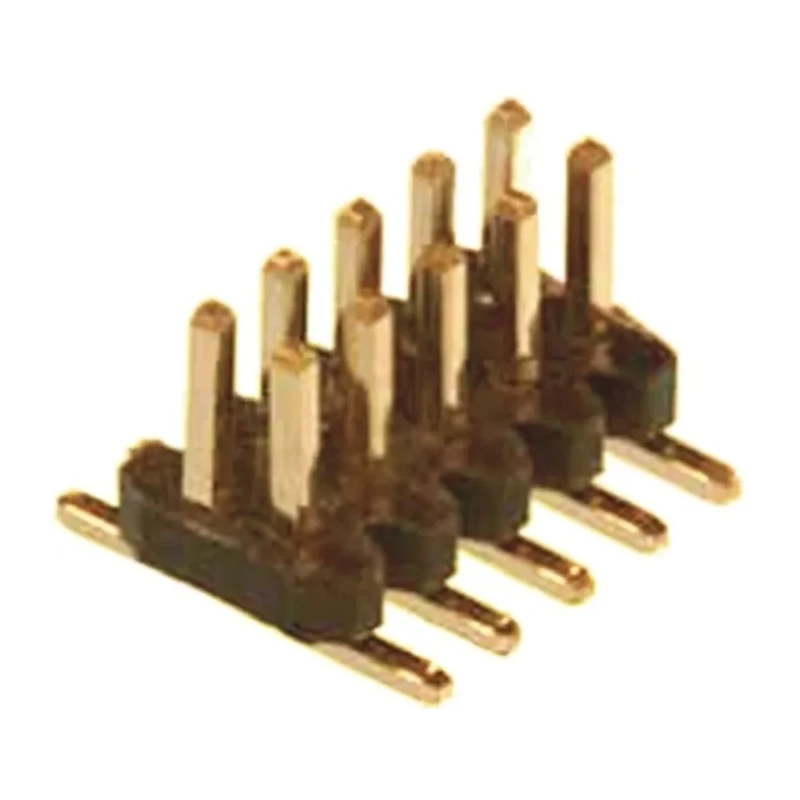

Amphenol Communications Solutions Minitek127 Series Straight Surface Pin Header 16 Contacts 1.27 mm Pitch 2 Row Minitek127
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 1A |
| Model | Minitek127 |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Minitek127 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Mating Pin Length | 3.05mm |
Key Features
- The header features a straight orientation with unshrouded design suitable for SMT wave soldering.
- Constructed with high-temperature black thermoplastic housing rated UL 94 V-0 for flammability.
- Contacts are made of copper alloy with gold plating, providing reliable 1A current capacity at up to 125V.
- Operating temperature range is from -55°C to 125°C, supporting robust industrial conditions.
- Mating pin length is 3.05 mm, ensuring secure connections in modular setups.
- The product supports approximately 100 mating cycles, suitable for repeated connections.
- The connector system enables modular and intermateable solutions for wire-to-board and cable-to-board needs.
- Designed and manufactured in China with compliance to industrial quality standards.
Product Description
Amphenol Communications Solutions Minitek127 Series Straight Surface Pin Header, model Minitek127, offers a versatile electrical connector solution for board-to-board mounting with 16 contacts arranged in 2 rows. The 1.27 mm pitch spacing and unshrouded straight male header make it ideal for various PCB connector system requirements.
The housing is made from a high-temperature black thermoplastic material rated UL 94 V-0 for flame resistance, providing safety and durability in demanding applications. This pin header is designed for surface mount technology (SMT) wave solder processes, ensuring efficient assembly in automated production lines.
Contact materials consist of copper alloy with gold plating to enhance conductivity and corrosion resistance, supporting a continuous current of 1 ampere and voltage rating of 125 volts. The operating temperature range from -55°C to 125°C allows use in industrial, communication, and electronic device environments.
The mating pin length of 3.05 mm supports secure and reliable connections, with the header rated for approximately 100 mating cycles. Its modular design allows intermateability with other standard connectors, facilitating flexible configurations in board-to-board or wire-to-board systems.
This connector is manufactured in China under stringent quality standards and intended for broad usage across electronics manufacturing, industrial automation, telecommunications, and other applications requiring compact and reliable PCB connectors.
The header features a straight orientation with unshrouded design suitable for SMT wave soldering. Constructed with high-temperature black thermoplastic housing rated UL 94 V-0 for flammability. Contacts are made of copper alloy with gold plating, providing reliable 1A current capacity at up to 125V.
Operating temperature range is from -55°C to 125°C, supporting robust industrial conditions. Mating pin length is 3.05 mm, ensuring secure connections in modular setups. The product supports approximately 100 mating cycles, suitable for repeated connections.
The connector system enables modular and intermateable solutions for wire-to-board and cable-to-board needs. Designed and manufactured in China with compliance to industrial quality standards. Ideal for electronic manufacturing, PCB assembly, communication devices, and industrial electronics.
Explore more PCB header solutions and electronic connectors in EnvMart for your design and manufacturing requirements.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current capacity of 1 ampere.
The voltage rating is 125 volts.
The pitch size is 1.27 mm.
The operating temperature range is from -55°C to 125°C.
This model has 16 contacts arranged in 2 rows.
The contacts are made of copper alloy with gold plating.
It is designed for surface mount technology (SMT) wave soldering.
The mating pin length is 3.05 mm.
It supports approximately 100 mating cycles.
The housing is made from high-temperature black thermoplastic material rated UL 94 V-0 for flammability.
Yes, it is designed as a board-to-board connector system.
It is manufactured in China under stringent quality standards.
