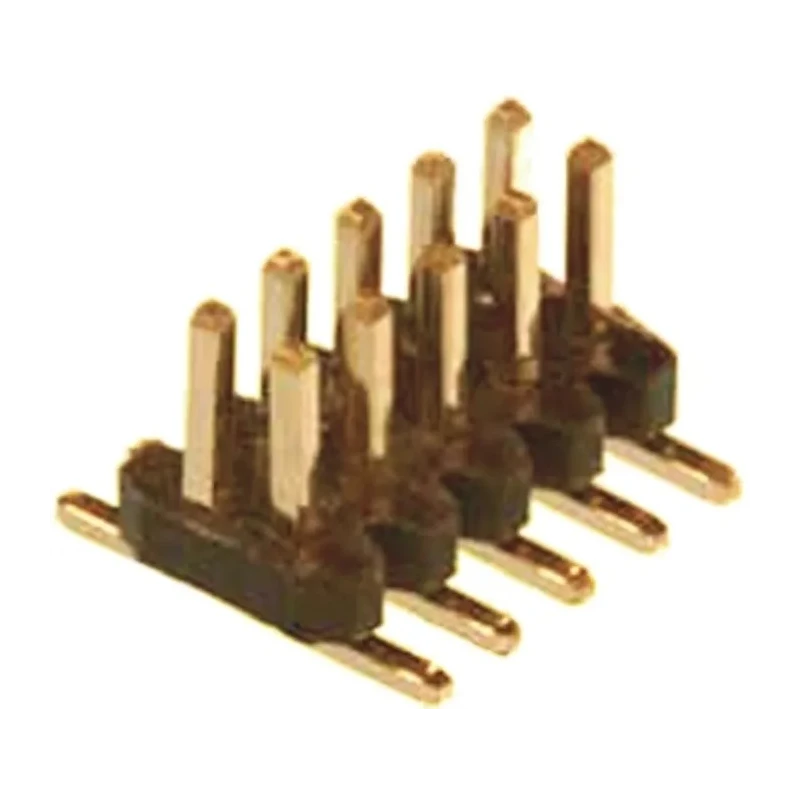

Amphenol Communications Solutions Minitek127 Series Straight Surface Pin Header 20 Contacts 1.27 mm Pitch 2 Row
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 1A |
| Model | Minitek127 |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Minitek127 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Mating Pin Length | 3.05mm |
Key Features
- Features 20 male copper alloy contacts with gold plating for reliable electrical connection.
- Constructed with high temperature black thermoplastic housing for durability and UL 94 V-0 flammability rating.
- Designed for board-to-board surface mounting with straight orientation.
- Supports continuous current rating of 1 A and voltage up to 125 V.
- Operating temperature range from -55°C to 125°C ensures suitability for diverse environments.
- Contact mating pin length is 3.05 mm allowing secure connection and up to 100 mating cycles.
- Unshrouded design compatible with multiple common connector systems and wave solder applications.
- Manufactured in China with compliance to industry standards, though no specific certifications noted.
Product Description
Amphenol Communications Solutions Minitek127 Series Straight Surface Pin Header 20021121-00020C4LF offers a reliable connection solution for PCB applications where high precision and durability are required. It includes 20 male contacts arranged in two rows with a 1.27 mm pitch, optimized for board-to-board surface mount interfacing.
The housing is made from thermoplastic material that withstands high temperatures and meets the UL 94 V-0 flammability standard. Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
This connector supports a continuous current of 1 Amp at voltages up to 125 V, suitable for a range of electronic devices. Operating temperature spans from -55°C to 125°C, allowing use in harsh industrial and communication environments.
With a contact mating length of 3.05 mm, the header can endure up to 100 mating cycles, providing durability over repeated connections. Its unshrouded, straight orientation design facilitates easy integration into wave solder and SMT assembly processes.
Manufactured in China, this pin header is part of the extensive FCI MINITEK 127™ modular connector system compatible with various wire-to-board and cable-to-board applications. 20 male copper alloy contacts with gold plating provide excellent electrical performance.
High temperature thermoplastic housing with UL 94 V-0 rating ensures durability. Board-to-board surface mount and straight orientation promote compatibility and ease of installation. Rated for 1 A continuous current and 125 V voltage for diverse applications.
Operating temperature range of -55°C to 125°C suits industrial and commercial environments. Supports 100 mating cycles thanks to robust contact design. Unshrouded design available for wave soldering and SMT usage. Manufactured in China with consistent quality standards.
This Amphenol Minitek127 Series Pin Header is ideal for industries such as communications, industrial electronics, manufacturing, and laboratory instrumentation where PCB connectors are essential. Discover a reliable and versatile connector solution with proven mechanical endurance and electrical specifications.
Explore more connectors and electronic components in the EnvMart Electronics & Electricals category.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 125 V.
This pin header supports a continuous current rating of 1 A.
The operating temperature range is from -55°C to 125°C, making it suitable for diverse environments.
It features 20 male contacts arranged in two rows.
The housing is constructed from high temperature thermoplastic material.
This pin header uses solder termination type.
The contact mating pin length is 3.05 mm, allowing for secure connections.
Yes, it is designed for board-to-board surface mounting with a straight orientation.
It is part of the FCI MINITEK 127™ modular connector system, suitable for various applications.
This model can endure up to 100 mating cycles, providing durability over repeated connections.
The contacts are plated with gold for excellent conductivity and corrosion resistance.
It is manufactured in China, adhering to consistent quality standards.
