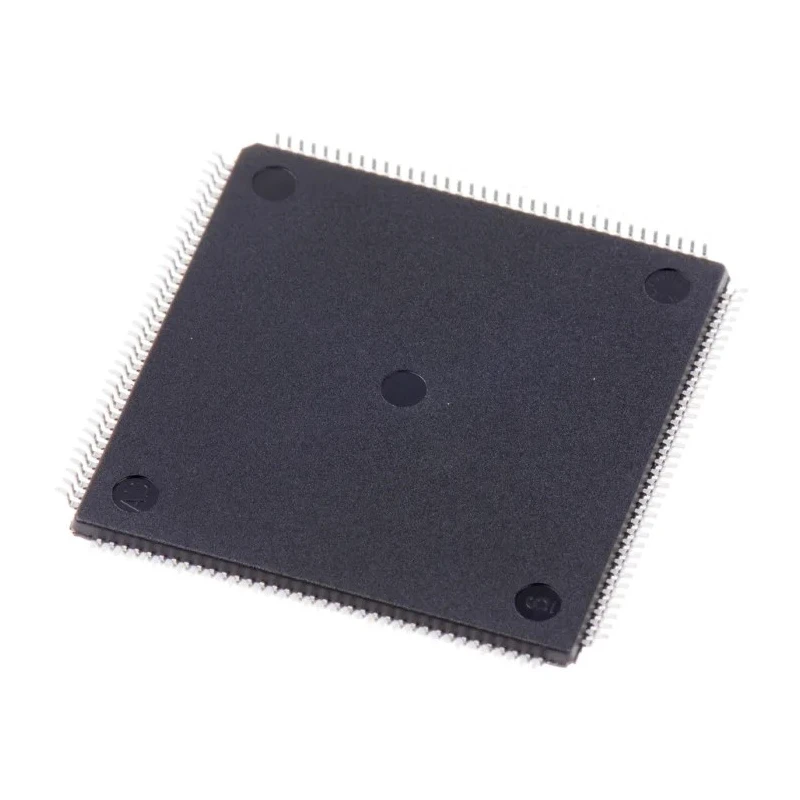

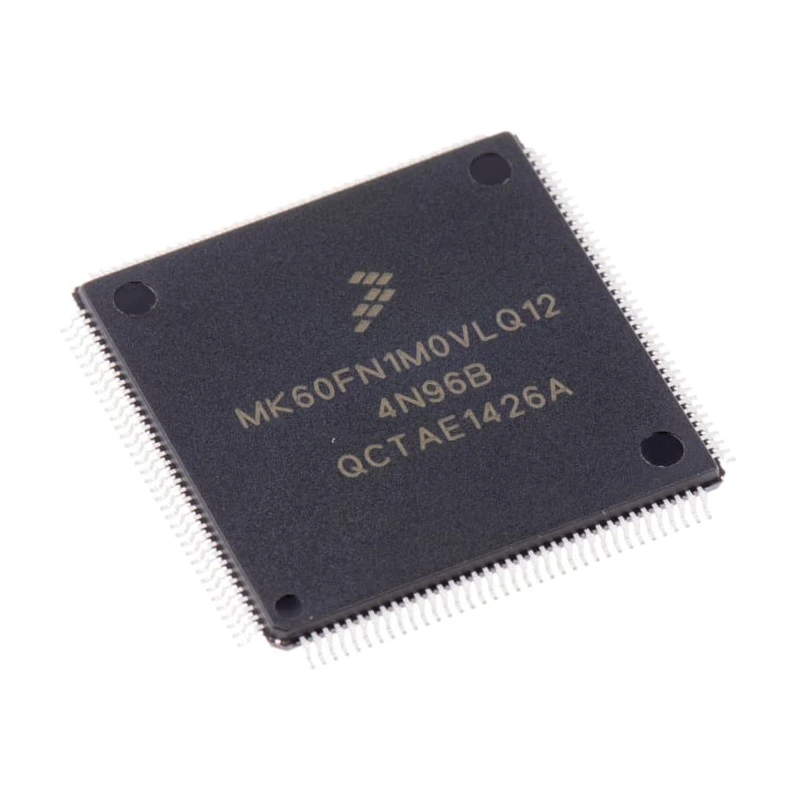

NXP ARM Cortex M4 K60 Microcontroller 120 MHz 1024kB FLASH 144-Pin LQFP MK60FN1M0VLQ12

Free Delivery in India | Lowest Global Shipping Charges

NXP ARM Cortex M4 K60 Microcontroller 120 MHz 1024kB FLASH 144-Pin LQFP MK60FN1M0VLQ12



Category Microcontroller Brand NXP Condition New

Specifications

Country of Origin	India
Brand	NXP
Height	1.4mm
Length	20mm
Model	MK60FN1M0VLQ12
Width	20mm
Mount Type	Surface
Series	K60
Maximum Operating Temperature	105°C
Package Type	LQFP
Minimum Operating Temperature	-40°C
Ram size	128kB
Pin Count	144
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	1.71V
Device Core	ARM Cortex M4
Program Memory Size	1024kB
Maximum Clock Frequency	120MHz
Analogue Comparators	4
Number of Timers	2
Instruction Set Architecture	DSP
ADCs	16 bit
Program Memory Type	FLASH
DACs	2 x 12 Bit

Key Features

Features ARM Cortex M4 core architecture optimized for high-performance processing.
Operates at a maximum clock frequency of 120 MHz for fast execution.
Includes 1024kB of FLASH program memory and 128kB of RAM.
Packaged in a 144-pin LQFP surface mount for compact board designs.
Supports DAC with 2 channels of 12-bit resolution for analog control.
Contains 4 analog comparators and 16-bit ADCs for precise signal monitoring.
Operating voltage ranges from 1.71V minimum up to 3.6V maximum supply voltage.
Designed to operate reliably in temperatures from -40°C up to 105°C.

Product Description

The NXP MK60FN1M0VLQ12 is an ARM Cortex M4 microcontroller designed for a wide range of embedded applications requiring high processing performance and integration. Operating at up to 120 MHz, this microcontroller provides 1024kB of FLASH program memory alongside 128kB of RAM to support complex software requirements and real-time operations.

Packaged in a compact 144-pin LQFP surface mount, it is suitable for space-constrained environments while maintaining extensive peripheral support. The device operates within a supply voltage range of 1.71V to 3.6V, with an operating temperature range from -40°C to 105°C, making it suitable for industrial and automotive applications requiring durability and reliability.

Key analog features include 2 DAC channels with 12-bit resolution, 4 analog comparators, and 16-bit ADCs, enabling precise analog signal processing and control. Two onboard timers and DSP instructions support efficient timing and signal processing tasks.

This microcontroller belongs to the Kinetis K60 series, which offers pin-peripheral and software compatibility across the Kinetis K portfolio, including advanced connectivity options such as IEEE 1588 Ethernet and USB 2.0 On-The-Go capabilities. These features make it ideal for industrial automation, motor control, and communication device designs.

The device is supplied in trays for easy insertion into machinery and manufacturing processes. Features ARM Cortex M4 core architecture optimized for high-performance processing. Operates at a maximum clock frequency of 120 MHz for fast execution.

Includes 1024kB of FLASH program memory and 128kB of RAM. Packaged in a 144-pin LQFP surface mount for compact board designs. Supports DAC with 2 channels of 12-bit resolution for analog control. Contains 4 analog comparators and 16-bit ADCs for precise signal monitoring.

Operating voltage ranges from 1.71V minimum up to 3.6V maximum supply voltage. Designed to operate reliably in temperatures from -40°C up to 105°C. Equipped with 2 timers supporting DSP instruction set architecture. Flash memory is of type FLASH ensuring fast and reliable storage.

The NXP MK60FN1M0VLQ12 microcontroller is suited for applications in industrial automation, automotive controls, communication equipment, and embedded systems requiring efficient processing power and extensive peripheral integration. Browse the Semiconductor Microcontroller category at EnvMart for related products and advanced embedded solutions.
