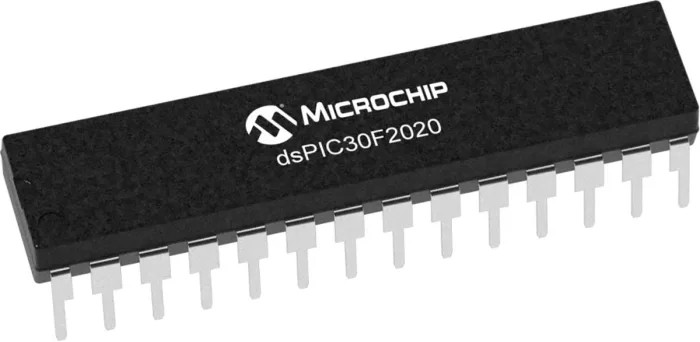

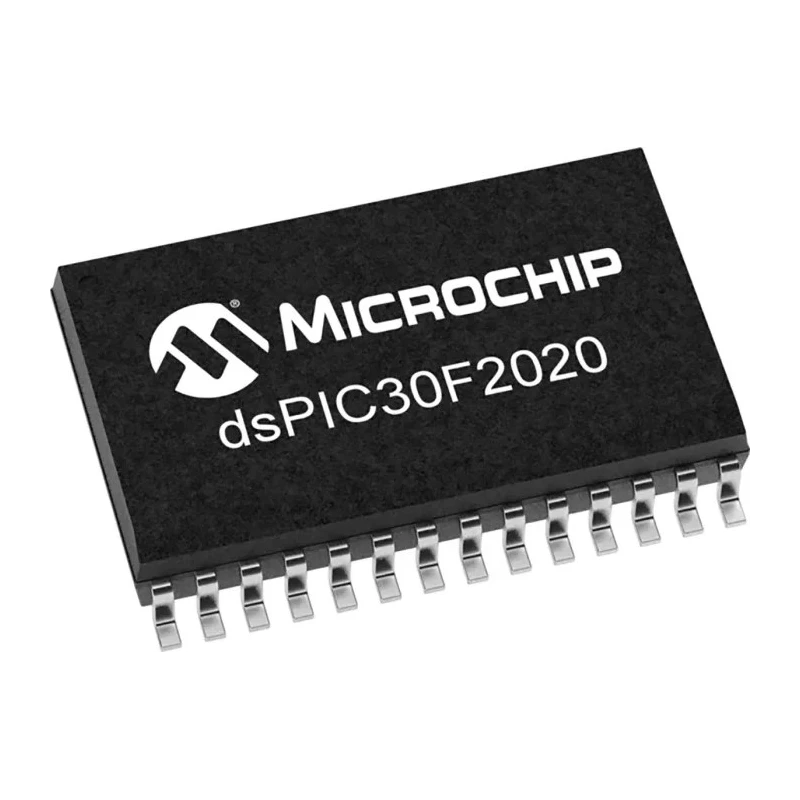

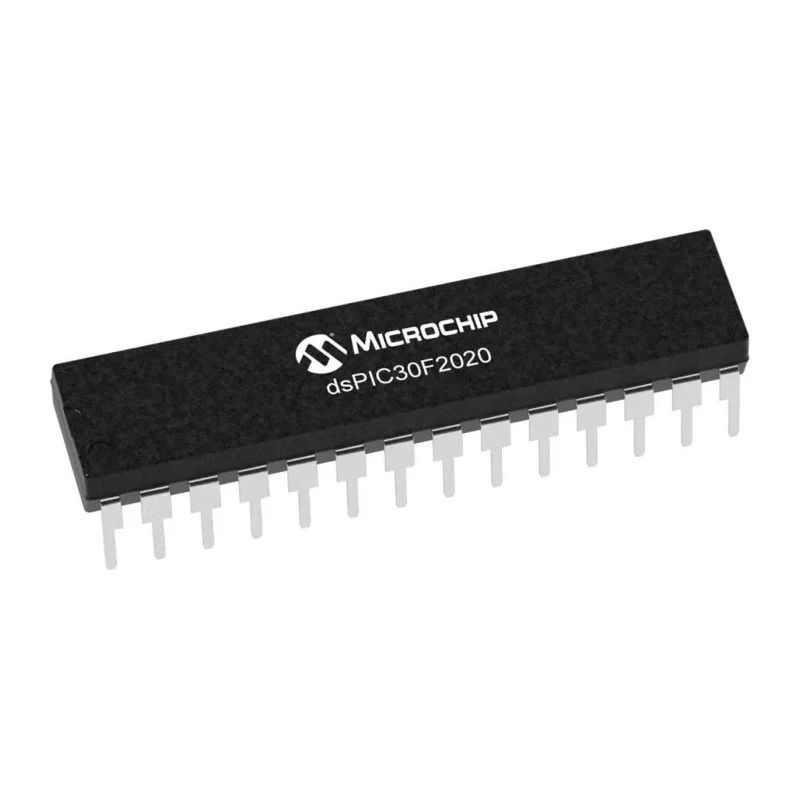

Microchip 16-bit dsPIC Microcontroller, 15 MHz, 12kB FLASH, 28-Pin PDIP DSPIC30F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.43mm |
| Length | 34.7mm |
| Model | dsPIC30F |
| Width | 8.26mm |
| Mount Type | Surface |
| Series | dsPIC30F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 500bit |
| Interface Type | IPMI, SPI |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Device Core | dsPIC |
| Program Memory Size | 12kB |
| Maximum Clock Frequency | 15MHz |
| Number of Programmable I/Os | 46 |
| Analogue Comparators | 4 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 10 Bit |
| High-current sink/source I/O pins | 25 mA/25 mA |
Key Features
- Operates at a clock speed of up to 15 MHz for efficient processing.
- Equipped with 12kB FLASH program memory for reliable code storage.
- Uses a 16-bit data bus width supporting advanced digital signal processing.
- Features 46 programmable I/O pins for versatile interfacing.
- Includes 8 ADC channels with 10-bit resolution for precise analog measurements.
- Operates within a voltage range of 3 V to 5.5 V for flexible power supply options.
- Compact dimensions of 34.7 mm length, 8.26 mm width, and 3.43 mm height ensure easy board integration.
- Designed with 3 timers and supports multiple communication interfaces including IPMI and SPI.
Product Description
Microchip DSPIC30F 16-bit Microcontroller DSPIC30F model integrates a 15 MHz maximum clock frequency and 12kB FLASH program memory in a 28-Pin PDIP package, ideal for embedded and industrial applications.
This microcontroller features a 16-bit data bus width with a dsPIC device core optimized for digital signal processing tasks. It offers 46 programmable I/O pins allowing comprehensive interfacing to peripherals and external devices.
The device operates efficiently across a wide voltage range from 3 V to 5.5 V and supports a minimum operating temperature of -40°C and a maximum operating temperature of 85°C, making it suitable for harsh industrial environments.
Equipped with 8 channels of 10-bit ADCs, 4 analogue comparators, and 3 advanced timers, it supports complex signal processing and control functionalities required in power conversion systems like DC-DC converters, UPS units, inverters, and power factor correction circuits.
Additional features include 10-bit DACs and multiple digital timers with options for capture, compare, and PWM outputs enabling precise timing control and modulation. The microcontroller utilizes a RISC instruction set architecture with modified Harvard architecture achieving up to 30 MIPS CPU speed.
Operates at up to 15 MHz clock speed with RISC architecture for optimized performance. 12kB FLASH program memory with high endurance and reliability. Wide operating voltage range (3 V to 5.5 V) for flexible power configurations.
46 programmable I/O pins with high-current sink/source capability of 25 mA. Includes 8 ADC channels at 10-bit resolution and 4 analogue comparators. 3 timers with advanced capture/compare and PWM functionalities for complex timing.
Compact 28-Pin PDIP package measuring 34.7 mm x 8.26 mm x 3.43 mm. Designed for applications in SMPS, UPS, inverter circuits, arc fault detection, and lighting control.
This Microchip DSPIC30F microcontroller is RoHS compliant and ideal for digital power conversion, automotive electronics, and embedded control systems, providing a robust and efficient solution for advanced industrial and commercial electronic designs.
Explore EnvMart's Electronics & Electricals categories for more Microcontrollers and semiconductor components supporting diverse industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 15 MHz, allowing for efficient processing capabilities.
It is equipped with 12kB of FLASH program memory, providing reliable code storage for applications.
This microcontroller features 46 programmable I/O pins, enabling versatile interfacing with various peripherals.
It operates within a voltage range of 3 V to 5.5 V, offering flexibility in power supply options.
This model supports multiple communication interfaces including IPMI and SPI, facilitating diverse connectivity options.
The compact dimensions are 34.7 mm in length, 8.26 mm in width, and 3.43 mm in height, suitable for easy board integration.
It includes 8 ADC channels with 10-bit resolution for precise analog measurements.
The maximum operating temperature is 85°C, making it suitable for various industrial environments.
This microcontroller utilizes a RISC instruction set architecture, optimized for performance in digital signal processing tasks.
It includes 3 timers with advanced capture, compare, and PWM functionalities for complex timing control.
The minimum operating temperature is -40°C, allowing it to function in harsh conditions.
Yes, this microcontroller is RoHS compliant, meeting environmental standards for electronic devices.
