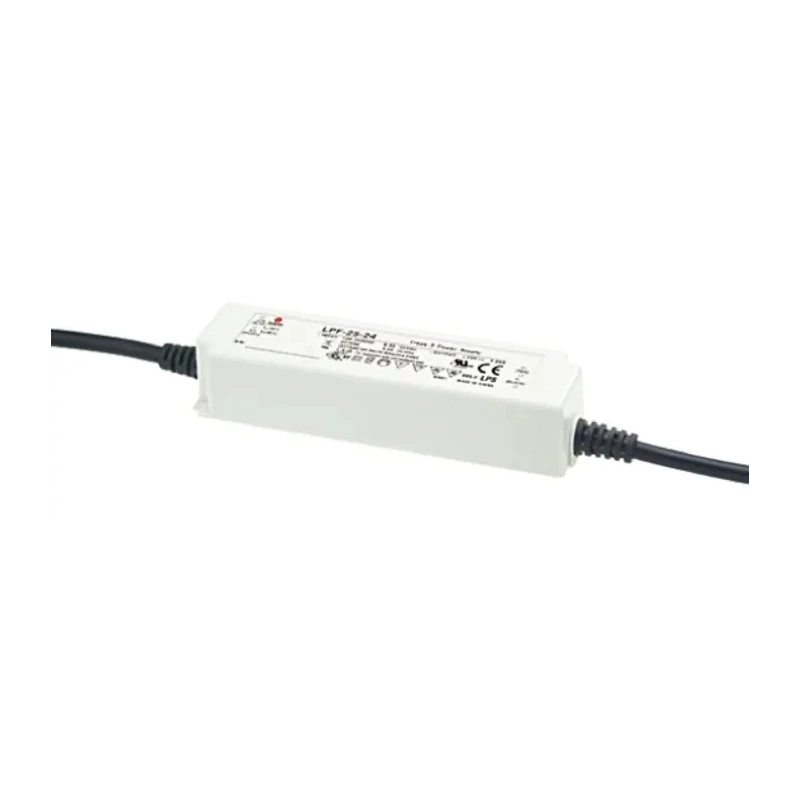

MEAN WELL IP67 5 Output 25.2W LED Driver, 19.8V/36V, 700mA Constant Current/Voltage
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | LPF-25 |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Current/Constant Voltage |
| Number of outputs | 5 |
| Terminal type | Wire |
| Maximum Output Power | 25.2W |
| Input Voltage | 305, 90, 127, 431V ac |
| Output Voltage | 19.8, 36V |
| Power Dissipation | 25.2W |
| Standards/Approvals | CB, CE, CSA, EAC, ENEC, SELV, UL |
| Primary Type | AC-DC |
| Driver Current | 700mA |
| RS PRO, 36V Output, 19.8W Output, 550mA Output, Constant VoltageBrand | RS PRO |
Key Features
- Operates within a universal AC input range of 90 to 305 Vac.
- Provides 5 outputs with stable 19.8V and 36V voltages.
- Supports constant current and constant voltage operating modes.
- Offers high efficiency up to 87% and IP67 protection rating for harsh environments.
- Compact enclosed screw mount design suitable for dry, damp, and wet locations.
- Incorporates built-in active power factor correction (PFC) for improved power quality.
- Equipped with protections against short circuit, over current, over voltage, and over temperature.
- Meets multiple international standards including CB, CE, CSA, EAC, ENEC, SELV, and UL.
Product Description
MEAN WELL LPF-25-36 is a high efficiency 25.2-watt LED driver power supply designed for reliable LED lighting operation with an IP67 dust and water ingress protection rating. It features 5 outputs delivering constant current of 700mA and supports constant voltage operation with output voltages of 19.8V and 36V.
This LED driver accepts a wide universal AC input range from 90 to 305 Vac, making it suitable for diverse electrical environments. The device is fully encapsulated with heat-conductive glue potting to ensure durability and withstands 5G vibration for industrial robustness.
Its built-in active power factor correction (PFC) enhances energy efficiency and reduces harmonic emissions complying with EN61000-3-2 Class C standards. Operating temperature ranges from -40°C to +70°C with free air convection cooling, allowing installation in a variety of challenging settings including dry, damp, and wet locations.
The driver includes multiple protection features such as short circuit, over-current, over-voltage, and over-temperature safeguards, improving reliability and longevity. The compact screw-mount enclosed design facilitates simple integration in LED lighting fixtures and moving sign applications.
Universal AC input range of 90 to 305 Vac. IP67 rated fully encapsulated enclosure for water and dust resistance. Five output channels with constant current of 700mA. Efficiency up to 87% suitable for energy-conscious applications.
Short circuit, over current, over voltage, and over temperature protection. Meets CB, CE, CSA, EAC, ENEC, SELV, and UL standards for safety and quality. Wide temperature operation from -40 to +70°C for industrial use. Designed for LED lighting and moving sign usage in industrial, commercial, and outdoor environments.
Enclosed screw mounting for reliable fixture integration.
MEAN WELL LPF series LED drivers are trusted components across LED lighting manufacturing, water treatment lighting, architectural lighting, and signage industries. Their robust design and global compliance make them ideal choices for engineers and designers requiring long-lasting, high-performance LED power supplies.
Browse the Electronics Components category on EnvMart to find more LED Drivers and related power supply solutions from MEAN WELL and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 25.2W.
This model provides five outputs.
The output voltage options are 19.8V and 36V.
The driver current for this unit is 700mA.
It features a screw mount design for installation.
It includes protections against short circuit, over current, over voltage, and over temperature.
This LED driver has an IP67 rating, indicating it is protected against dust and water ingress.
It can operate within a temperature range of -40°C to +70°C.
It meets multiple international standards including CB, CE, CSA, EAC, ENEC, SELV, and UL.
The configuration type of this model is enclosed.
It is designed for LED lighting and moving sign usage in industrial, commercial, and outdoor environments.
