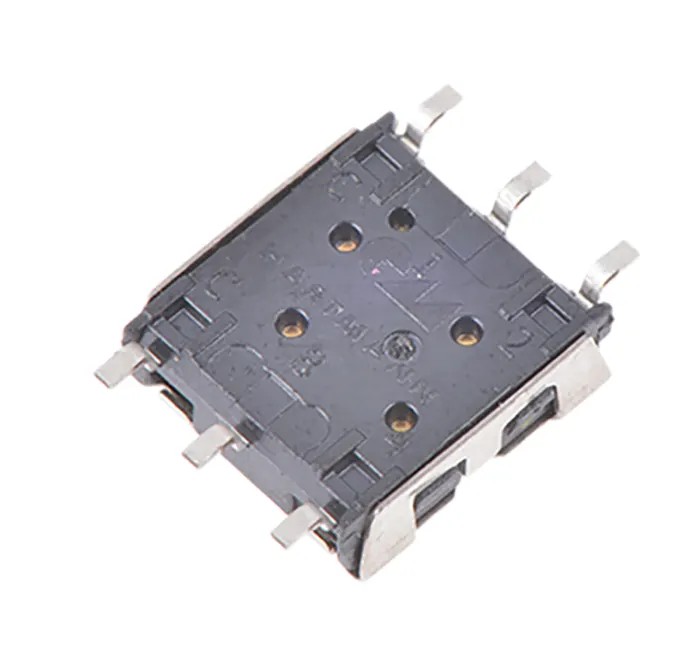

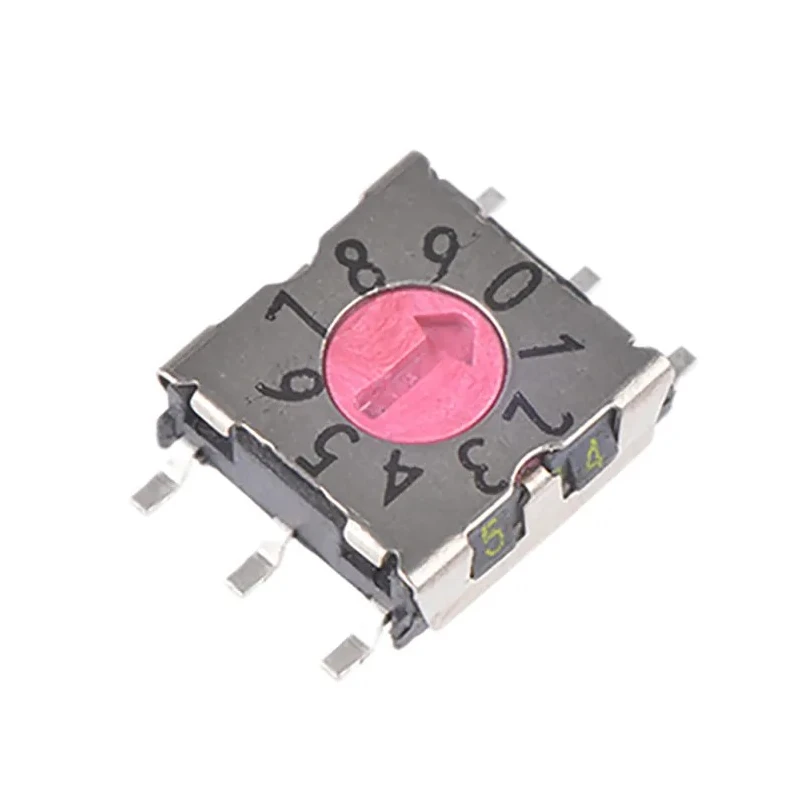

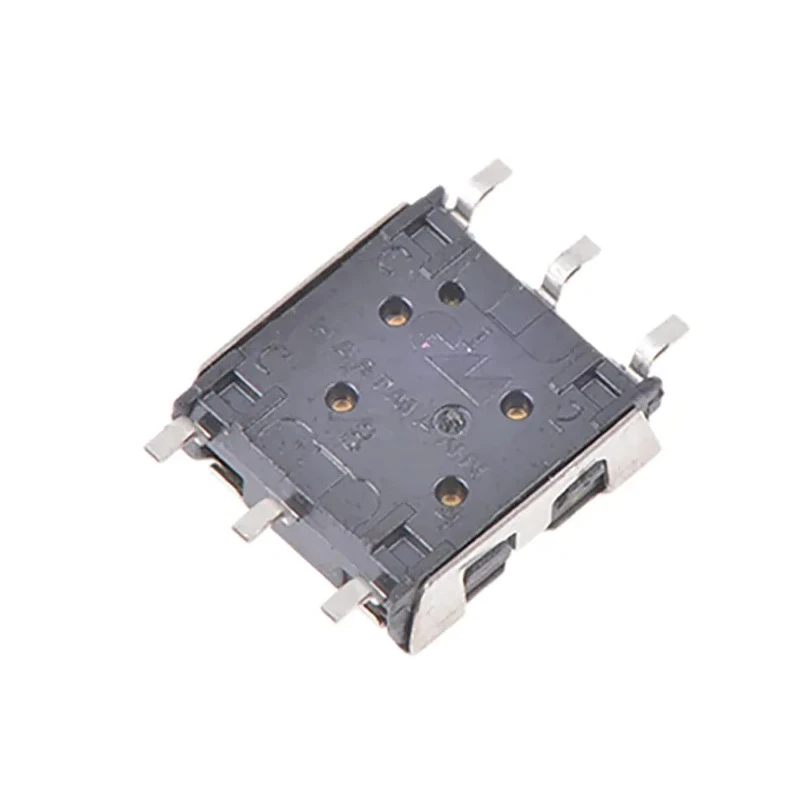

Hartmann Slotted Spindle Rotary Coded DIP Switch Surface Mount P25SMT101
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Hartmann |
| Model | P25SMT101 |
| Mount Type | Surface |
| Series | P25 |
| Actuator Type | Slotted spindle |
| Terminal type | Surface Mount |
| Footprint/pin spacing | 2.54mm between pins and 5.08mm between rows |
| Subminiature build | 2.5mm height, 7.0mm length |
Key Features
- Subminiature build measures 2.5mm height and 7.0mm length for space saving applications.
- Lateral C-contact design runs the common contact across the top of the switch for efficient operation.
- Hard gold plated contacts ensure low and stable contact resistance with abrasion resistance.
- Surface mount terminal type simplifies PCB installation.
- Pin spacing of 2.54mm between pins and 5.08mm between rows for standard PCB layouts.
- Provides a precise detent mechanism with clearly visible figures for easy and accurate operation.
- Originating from Germany, ensuring high manufacturing quality.
Product Description
Hartmann P25SMT101 Rotary Coded DIP Switch is a subminiature surface mount device designed for reliable electrical switching in compact electronic assemblies. The P25 series combines a slotted spindle actuator type with a robust surface mount terminal system, ideal for PCB mounting applications requiring precision and durability.
This rotary coded switch features a low profile with dimensions of 2.5mm in height and 7.0mm in length, making it suitable for space-constrained industrial and electronic applications. The lateral C-contact design ensures that the common contact runs across the top of the device, providing efficient conductivity and stable operation.
The switch contacts are hard gold plated to resist abrasion and maintain low contact resistance, prolonging switch life and reliability in demanding environments. Solid tinned PCB pins facilitate trouble-free assembly and secure mechanical and electrical connection on printed circuit boards.
The footprint accommodates standard pin spacing of 2.54mm between pins and 5.08mm between rows, ensuring compatibility with common PCB layouts used in industrial automation, instrumentation, and control systems.
Hartmann's P25 series offers a precise detent mechanism with clearly visible figures for rapid and accurate setting of switch positions, making it valuable for programmable controls and automation equipment in manufacturing, HVAC, and electrical distribution sectors.
Subminiature compact design for optimized PCB space usage. Lateral C-contact for improved electrical stability. Hard gold plating on contacts for enhanced durability and low resistance. Surface mount terminal type suited for contemporary electronics assembly.
Standardized pin spacing fits a wide range of circuit boards. Precise detent and visible indexing for easy setting and operation. German origin, reflecting strict quality manufacturing standards.
This rotary coded DIP switch is highly suitable for electronics manufacturing, laboratory instrumentation, industrial automation, and any application demanding precise rotary position encoding with durable surface mount options. Browse related Rotary Coded DIP Switches from Hartmann and other quality brands at EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a subminiature build with dimensions of 2.5mm in height and 7.0mm in length, making it suitable for space-constrained applications.
It features a surface mount terminal type, which simplifies PCB installation for electronic assemblies.
The pin spacing is standardized at 2.54mm between pins and 5.08mm between rows, ensuring compatibility with common PCB layouts.
This model utilizes a slotted spindle actuator type, which provides a precise detent mechanism for accurate operation.
It originates from Germany, reflecting high manufacturing quality standards.
The contacts are hard gold plated, which ensures low and stable contact resistance and enhances durability against abrasion.
This rotary coded DIP switch is suitable for electronics manufacturing, laboratory instrumentation, industrial automation, and applications requiring precise rotary position encoding.
The lateral C-contact design allows the common contact to run across the top of the switch, providing efficient conductivity and stable operation.
It offers a precise detent mechanism with clearly visible figures, making it easy to set and operate the switch positions accurately.
This switch is part of the P25 series, which combines a slotted spindle actuator with a robust surface mount terminal system.
It features solid tinned PCB pins that facilitate secure mechanical and electrical connections on printed circuit boards.
The subminiature design optimizes PCB space usage, making it ideal for compact electronic assemblies.
