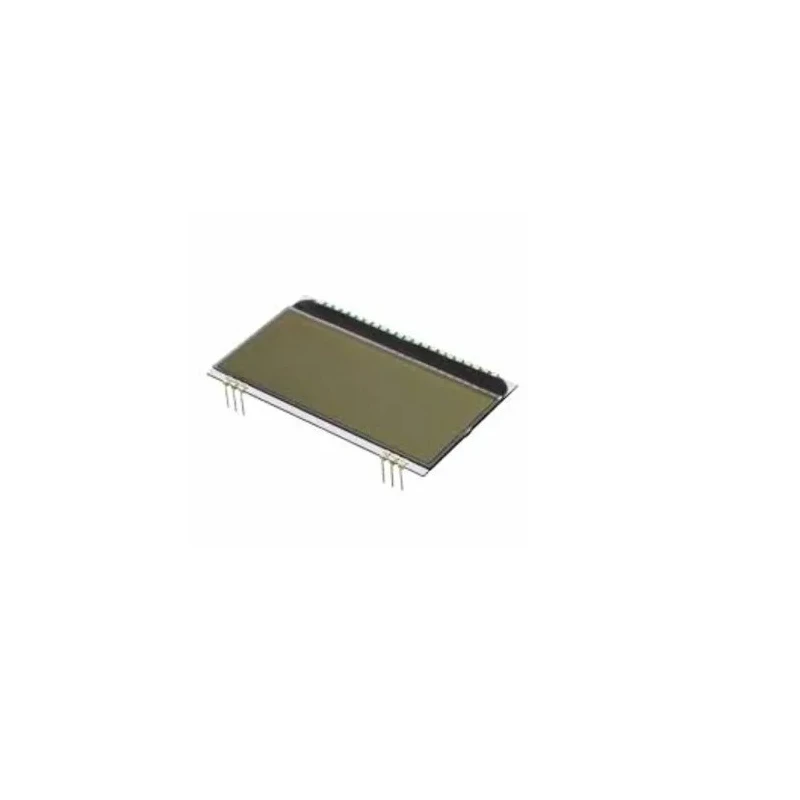

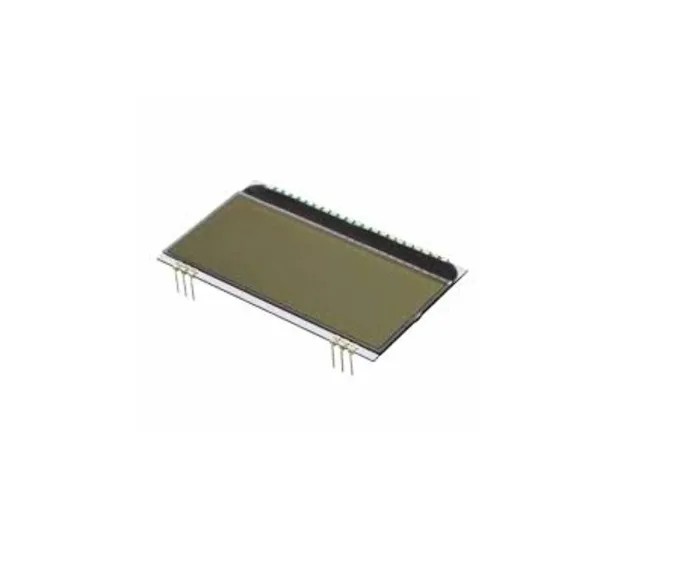

Display Visions EA DOG LCD LED Monochrome Display White on Grey 82.7 x 20.1 mm Viewing Area EA DOGM240N-6
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD |
| Brand | Display Visions |
| Model | EA DOGM240N-6 |
| Series | EA DOG |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| External Width | 2.8mm |
| External Depth | 38.1mm |
| External Height | 94mm |
| Standards/Approvals | RoHS |
| Illumination Colour | White |
| Viewing Area Dimensions | 82.7 x 20.1 mm |
| Backlight Type | LED |
Key Features
- Features a viewing area of 82.7 x 20.1 mm suitable for various electronic applications.
- Incorporates LED backlight illumination in white, enhancing readability in low light conditions.
- Supports multiple interfaces including 4-bit, 8-bit SPI and I²C for versatile connectivity.
- Operates without auxiliary power at 3.3 V systems for efficient power usage.
- Compact design at 66 x 40 mm with slim profile of 2.0 mm thick without backlight.
- Wide operating temperature range from -20°C to 70°C to withstand harsh environments.
- Includes bezel for easy mounting and soldering directly onto PCB.
- RoHS compliant ensuring adherence to environmental standards.
Product Description
Display Visions EA DOGM240N-6 LCD Monochrome Display offers a high-performance solution for industrial and electronic assembly applications requiring clear and efficient visual output. This product features a white LED backlight on a grey background, delivering excellent contrast and readability across varying lighting conditions. With a viewing area measuring 82.7 x 20.1 mm, it is designed to accommodate 4x20 character displays with 4.8 mm character height, ideal for information display on compact devices.
The display supports multiple communication protocols including 4-bit and 8-bit SPI as well as I²C interfaces, allowing seamless integration with a variety of microcontroller systems. It operates effectively on 3.3 V systems without requiring additional power supplies, optimizing energy consumption in embedded designs.
Its ultra-flat construction, measuring only 2.0 mm thick without backlight and 5.8 mm including LED backlight, allows easy incorporation into slim device enclosures. The wide operating temperature range from -20°C to 70°C ensures reliable performance in industrial, automotive, and environmental monitoring systems.
The device includes an integrated bezel for secure mounting and can be soldered directly onto printed circuit boards, facilitating efficient assembly processes. Compliance with RoHS standards underscores its environmentally conscious manufacturing.
Compact 66 x 40 mm form factor suitable for embedded systems. White LED backlight with current options of 3 x 80 mA at 3.3 V or 2 x 40 mA at 5 V. Operates without auxiliary power enhancing system efficiency. Wide temperature range for industrial and outdoor use.
RoHS compliant for environmental safety. Easy PCB mounting with included bezel. 4x20 character display with clear visibility due to 4.8 mm character height. Supports SPI and I²C interfaces for flexible system integration.
This Display Visions LCD Monochrome Display is suitable for applications in industrial automation, measurement and control devices, communication equipment, and instrumentation panels. Its compact size and low power consumption make it ideal for portable and battery-operated devices.
Explore the extensive range of Display Visions displays and electronic components at EnvMart for reliable solutions in technology-intensive industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The viewing area of this model measures 82.7 x 20.1 mm, suitable for various electronic applications.
It supports multiple interfaces including 4-bit, 8-bit SPI, and I²C, allowing for versatile connectivity with microcontroller systems.
This model operates effectively at 3.3 V systems without requiring auxiliary power, optimizing energy consumption.
It has a wide operating temperature range from -20°C to 70°C, making it suitable for industrial and outdoor use.
The external dimensions are 94 mm in height, 38.1 mm in depth, and 2.8 mm in width, making it compact for embedded systems.
Yes, it features a white LED backlight that enhances readability in low light conditions.
The display supports a 4x20 character configuration with a character height of 4.8 mm, ensuring clear visibility.
Yes, it is RoHS compliant, ensuring adherence to environmental standards.
The weight of this model is not explicitly stated in the provided specifications.
It includes an integrated bezel for secure mounting and can be soldered directly onto printed circuit boards.
This display is suitable for applications in industrial automation, measurement and control devices, communication equipment, and instrumentation panels.
It uses white LED illumination, which enhances contrast and readability across varying lighting conditions.
