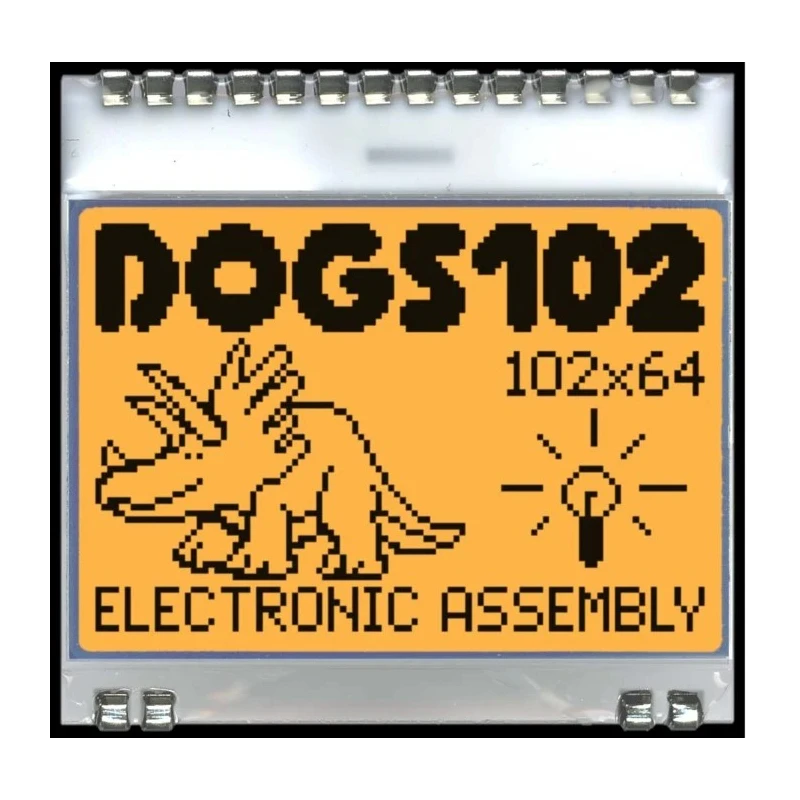

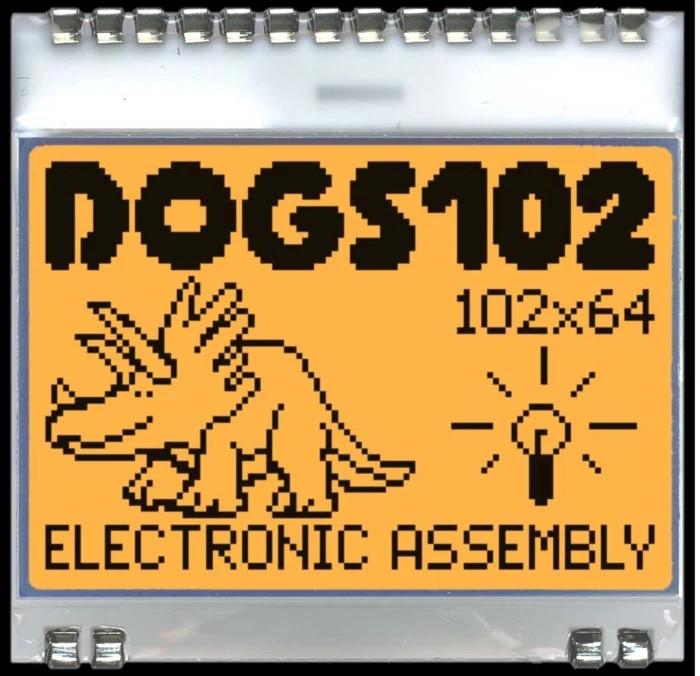

Display Visions Graphic LCD Monochrome Display, 102 x 64 Pixel, Amber LED Backlight, I2C/SPI Interface EA DOGS102W-6
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Graphic |
| Brand | Display Visions |
| Model | EA DOGS102W-6 |
| Series | EA DOG |
| Character height | 4.8mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| External Width | 2.1mm |
| External Depth | 38.1mm |
| External Height | 39mm |
| Interface Type | I2C/SPI |
| Screen Resolution | 102 x 64 pixel |
| Standards/Approvals | RoHS |
| Illumination Colour | Amber |
| Viewing Area Dimensions | 33.65 x 22.39 mm |
| Backlight Type | LED |
Key Features
- The display features a graphic type LCD suitable for precise visualization.
- It has a viewing area dimension of 33.65 x 22.39 mm for clear readability.
- Interface compatibility includes I2C and 8-bit/4-bit SPI communication.
- Backlighting is provided by an amber LED ensuring visibility in various lighting conditions.
- Compact construction with an external depth of 38.1 mm and ultra-flat profile.
- Wide operating temperature range from -20°C to 70°C for versatile applications.
- Equipped with UC1701 controller integrated with graphic RAM for smooth operation.
- No bezel included, designed for soldering directly onto PCBs without mounting.
Product Description
Display Visions EA DOGS102W-6 is a premium graphic LCD monochrome display featuring 102 x 64 pixel resolution with an amber LED backlight. Designed for industrial and electronic applications, it provides robust performance and exceptional visibility for graphical outputs on compact hardware.
This display offers a viewing area of 33.65 x 22.39 mm and features multiple interface options including I2C and SPI (4-bit and 8-bit). Its ultra-flat profile at 2.0 mm thickness without the backlight, extending to 5.8 mm including the LED backlight, allows seamless integration into space-constrained designs.
Powered by the UC1701 controller with integrated graphic RAM, the display ensures smooth graphical rendering. The high contrast supertwist LCD technology with a 10µm dot gap supports clear and sharp visuals.
It operates efficiently within a temperature range of -20°C to 70°C, making it suitable for demanding environments found in industrial, laboratory, and commercial sectors. The amber on amber illumination enhances readability under diverse lighting conditions.
The product comes without a bezel, facilitating direct PCB soldering and eliminating the need for mechanical mounting, which benefits compact electronic assemblies in automation, instrumentation, and embedded systems.
The display’s integration of LED backlight consumes between 5 mA and 80 mA for efficient power management. The compact dimensions support applications in embedded electronics and wearable device displays. Meets RoHS standards ensuring environmental compliance.
Set includes the Display Visions EA DOGS102W-6 LCD Monochrome Display only. Ideal for developers and manufacturers requiring a reliable graphic display module in industrial or commercial electronic devices.
Explore more LCD Monochrome Displays and related electronic components at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display has a resolution of 102 x 64 pixels, providing clear graphical output.
It supports I2C and SPI communication interfaces, specifically 4-bit and 8-bit SPI.
The display operates efficiently within a temperature range of -20°C to 70°C.
The viewing area dimensions are 33.65 x 22.39 mm, allowing for clear readability.
It features an amber LED backlight, enhancing visibility in various lighting conditions.
The external depth of this model is 38.1 mm.
It is equipped with a UC1701 controller that includes integrated graphic RAM for smooth operation.
No, the display comes without a bezel and is designed for direct soldering onto PCBs.
The character height is 4.8 mm, suitable for displaying text and graphics clearly.
The product meets RoHS standards, ensuring environmental compliance.
The display has an ultra-flat profile with a thickness of 2.0 mm without the backlight.
This model is suitable for industrial, laboratory, and commercial applications requiring graphical outputs.
