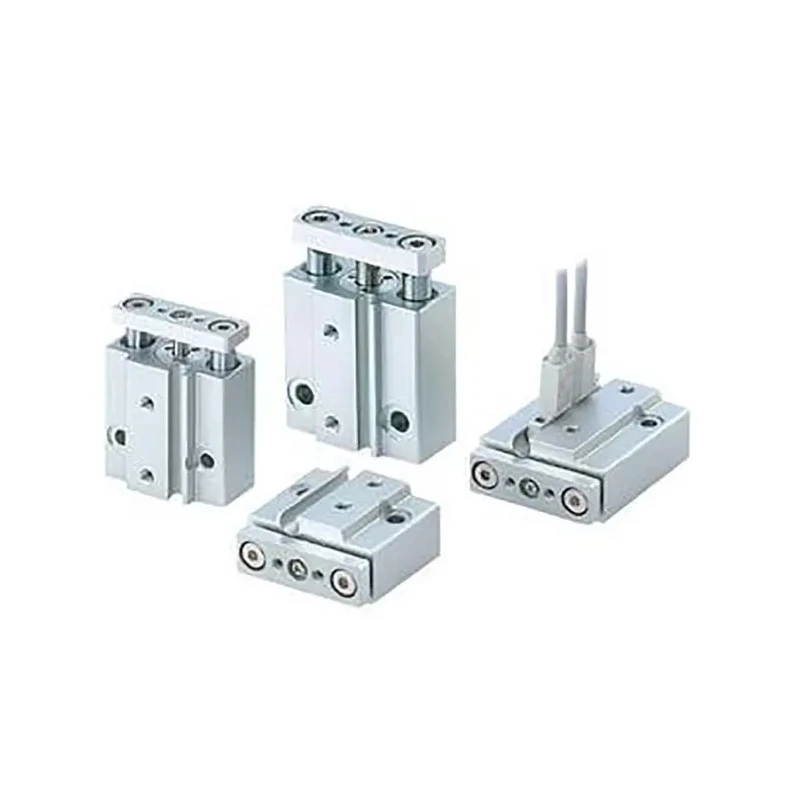

SMC Pneumatic Guided Cylinder 6mm Bore Double Acting 5 mm Stroke Aluminium Alloy Body MGJ6-5

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Guided Cylinder 6mm Bore Double Acting 5 mm Stroke Aluminium Alloy Body MGJ6-5



Category Pneumatic Guided Cylinder Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	0.7 Mpa
Height	29mm
Length	28mm
Model	MGJ6-5
Gross Weight	27.3g
Width	14.5mm
Series	MGJ
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Stroke Length	5mm
Bore Diameter	6mm
Action Type	Double Acting
Cushioning Type	Rubber Bumper
Guide Type	Slide Bearing
Piston Rod Thread Size	M3
SMC Guide Cylinder - 6mm Bore, 5mm Stroke, MGJ SeriesBrand	SMC

Key Features

The cylinder is designed for high side load and non-rotational accuracy with ±0.1°.
It operates with a maximum pressure of 0.7 Mpa and piston speed up to 500 mm/s.
Rubber bumpers are integrated for cushioning to prevent impact damage.
Slide bearing guide type ensures smooth linear motion and stability.
Suitable for operating temperatures from -10°C to 60°C for versatile industrial applications.
Compact dimensions with height 29mm, width 14.5mm, and length 28mm enable space-efficient mounting.
Piston rod thread size is M3 for easy mounting of attachments or switches.
Lightweight at 27.3 grams, making it ideal for precision pneumatic tasks.

Product Description

SMC MGJ6-5 Pneumatic Guided Cylinder is a precision industrial component designed for use in pneumatic systems where high side load capability and non-rotational accuracy (±0.1°) are essential. This cylinder features a 6mm bore diameter with a 5mm stroke length and double acting action type, suitable for a wide range of automation and industrial machinery applications.

Constructed with a durable aluminium alloy body, it is lightweight yet robust, weighing only 27.3 grams. The unit includes rubber bumpers that serve as cushioning to absorb shocks and reduce wear during operation. The guide type utilizes slide bearings, ensuring smooth and stable linear motion without rotation.

The cylinder operates efficiently within a temperature range of -10° to 60°C and a maximum operating pressure of 0.7 Mpa, supporting piston speeds up to 500 mm/s. The piston rod is threaded with an M3 size, facilitating the mounting of accessories or switches required for automation tasks.

This pneumatic guided cylinder is ideal for industrial, manufacturing, laboratory, automation, and mechanical engineering environments where precise linear motion is critical. The compact size with dimensions of 29mm height, 14.5mm width, and 28mm length enables easy integration into tight spaces.

The cylinder provides excellent side load resistance and accurate positioning. Rubber bumpers prevent impact damage and noise during operation. Slide bearing guide ensures hassle-free, non-rotational movement. Supports mounting of two auto switches for position detection.

Suitable for various pneumatic automation applications. Built for extended service life with lightweight aluminium construction.

SMC is a leader in pneumatic components, and this MGJ6-5 model fits perfectly within the MGJ series designed for miniature guide rod cylinders. For more Pneumatic Guided Cylinders and actuator solutions, explore the Hydraulics & Pneumatics category at EnvMart.
