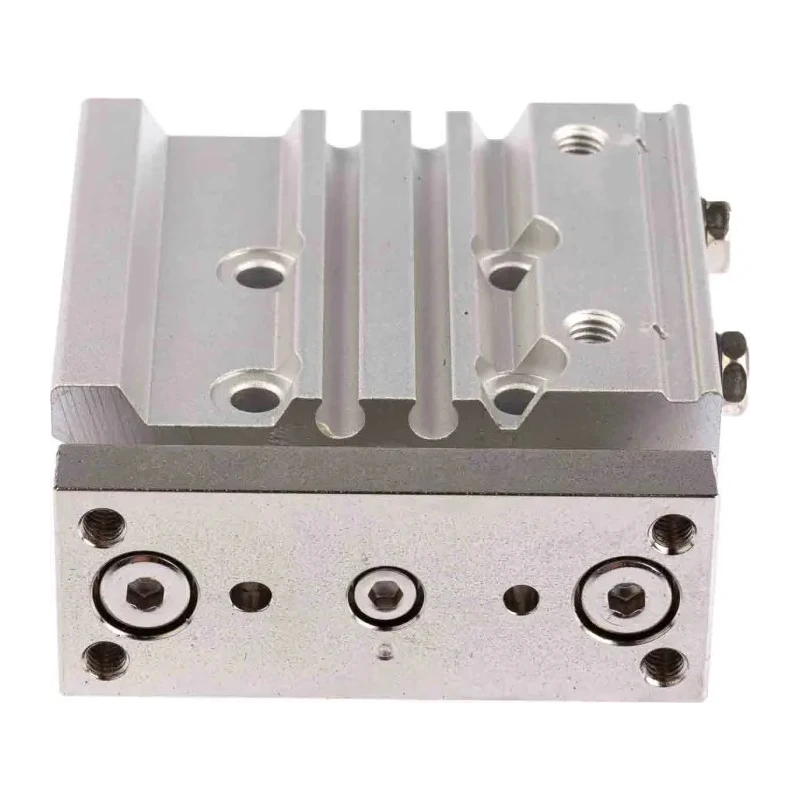

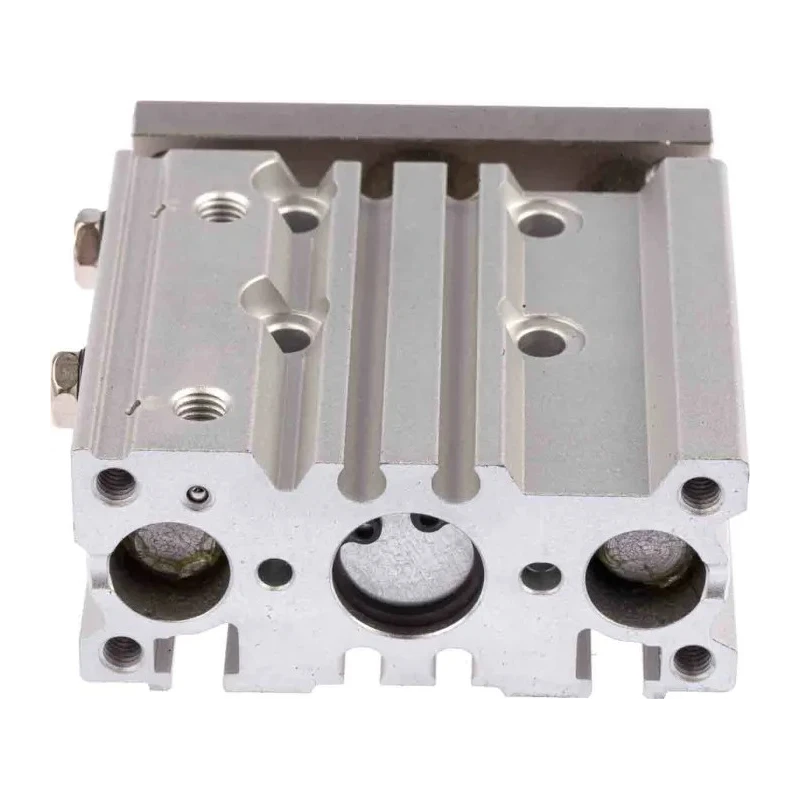

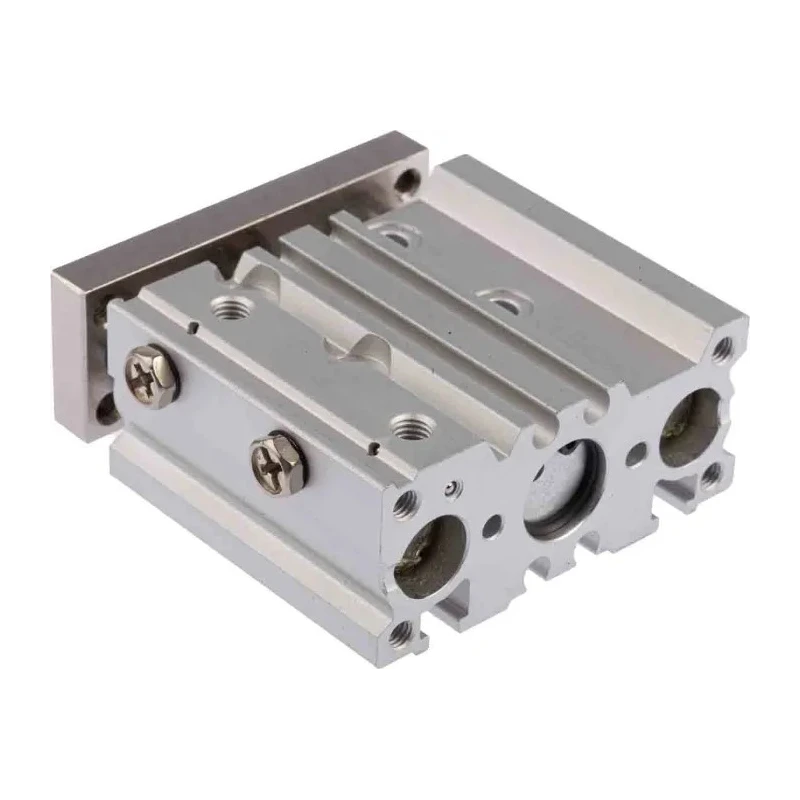

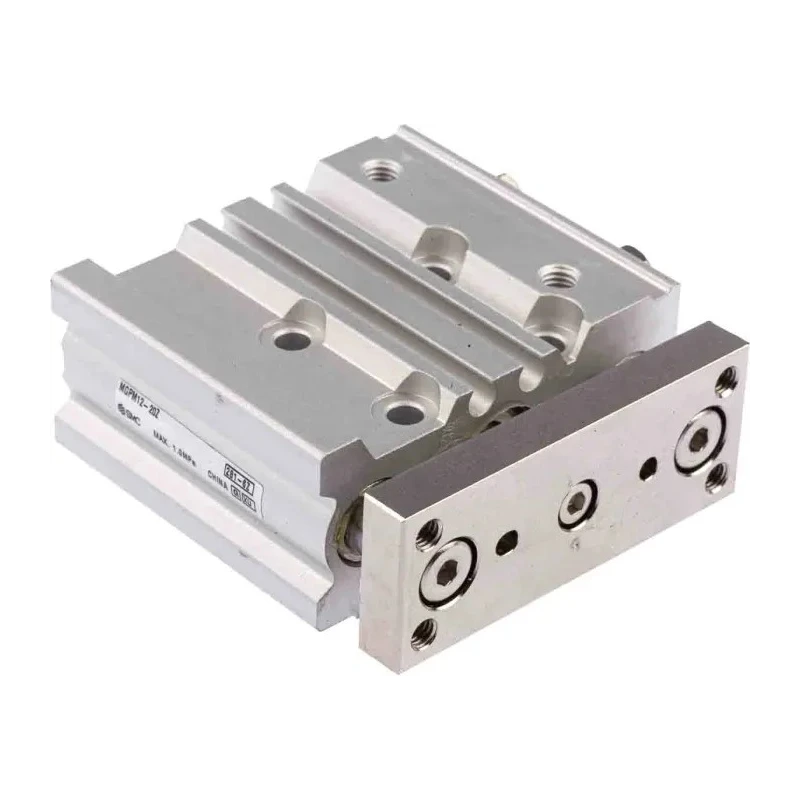

SMC Pneumatic Guided Cylinder 12mm Bore, MGP Series, 20mm Stroke Double Acting MGPM12-20Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Maximum Operating Pressure | 1 Mpa |
| Height | 58mm |
| Length | 62mm |
| Model | MGPM12-20Z |
| Gross Weight | 234g |
| Width | 26mm |
| Series | MGP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 20mm |
| Bore Diameter | 12mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Rubber |
| Guide Type | Slide Bearing |
| Piston Rod Thread Standard | Rc |
| Piston Rod Thread Size | M5 x 0.8 |
| RS PRO Pneumatic Guided Cylinder - 20 mmRS Stock No. | 291-797Brand: RS PRO |
Key Features
- Compact 12mm bore for space-constrained automation systems.
- Double acting action type for controlled forward and backward motion.
- Maximum operating pressure of 1 Mpa ensures robust force delivery.
- Rubber cushioning reduces shock impact and vibration during operation.
- Slide bearing guide provides accurate lateral stability and smooth linear motion.
- Maximum piston speed of 500 mm/s supports high-speed positioning tasks.
- Operating temperature range from -10°C to 60°C suits typical factory environments.
- M5 x 0.8 Rc standard piston rod thread enables versatile attachment.
Product Description
SMC MGPM12-20Z pneumatic guided cylinder is a compact and robust actuator designed for precise linear motion in automated industrial and mechanical systems. Featuring a 12mm bore and a 20mm stroke length, this double acting cylinder delivers reliable force with a maximum operating pressure of 1 Mpa.
The integrated slide bearing guide ensures lateral stability, enhancing accuracy during high-speed piston movement up to 500 mm/s. Dual rubber bumpers provide end cushioning to minimize shock transfer and extend service life in cyclic operations.
The MGP series cylinder operates effectively within a temperature range of -10°C to 60°C, making it suitable for diverse factory environments. The piston rod features a common M5 x 0.8 Rc thread standard to facilitate easy mounting and connections with various accessories.
Its compact size (62mm in length, 58mm height, and 26mm width) and lightweight of 234 grams simplify integration into confined machinery assemblies, making it ideal for pick-and-place stations, robotic end-effectors, and automation lines.
Compact 12mm bore size for precision applications. Double acting cylinder action for controlled movements. Robust 1 Mpa maximum operating pressure. Slide bearing guide for lateral stability under load. Rubber cushioning for shock absorption at cylinder ends.
High piston speed of 500 mm/s for efficient cycle rates. Wide operating temperature range from -10°C to 60°C. Standard M5 x 0.8 Rc piston rod thread for versatile fittings. Compact dimensions enable machine integration in tight spaces.
Lightweight 234g body for ease of handling and installation.
This Pneumatic Guided Cylinder complies with industrial standards ISO 10218-1, ISO 4413, ISO 4414, and IEC 60204-1, assuring safety and design conformity for industrial automation, manufacturing, and mechanical handling applications.
Environmentally suitable for electronics assembly lines, robotic automation, and component feeding systems, the MGPM12-20Z exemplifies high-quality pneumatic actuation with reliable performance. Explore EnvMart’s comprehensive pneumatic cylinder range for compatible automation components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the MGPM12-20Z is 1 Mpa.
This pneumatic guided cylinder has a stroke length of 20mm.
The bore diameter of this model is 12mm.
The maximum piston speed of the MGPM12-20Z is 500 mm/s.
It operates effectively within a temperature range of -10°C to 60°C.
This model features a double acting action type for controlled forward and backward motion.
It is equipped with rubber cushioning to reduce shock impact and vibration during operation.
The dimensions of the MGPM12-20Z are 62mm in length, 58mm in height, and 26mm in width.
The weight of the MGPM12-20Z is 234 grams.
This pneumatic cylinder utilizes a slide bearing guide for accurate lateral stability and smooth linear motion.
The piston rod thread size is M5 x 0.8 Rc, allowing for versatile attachment options.
It complies with industrial standards ISO 10218-1, ISO 4413, ISO 4414, and IEC 60204-1.
