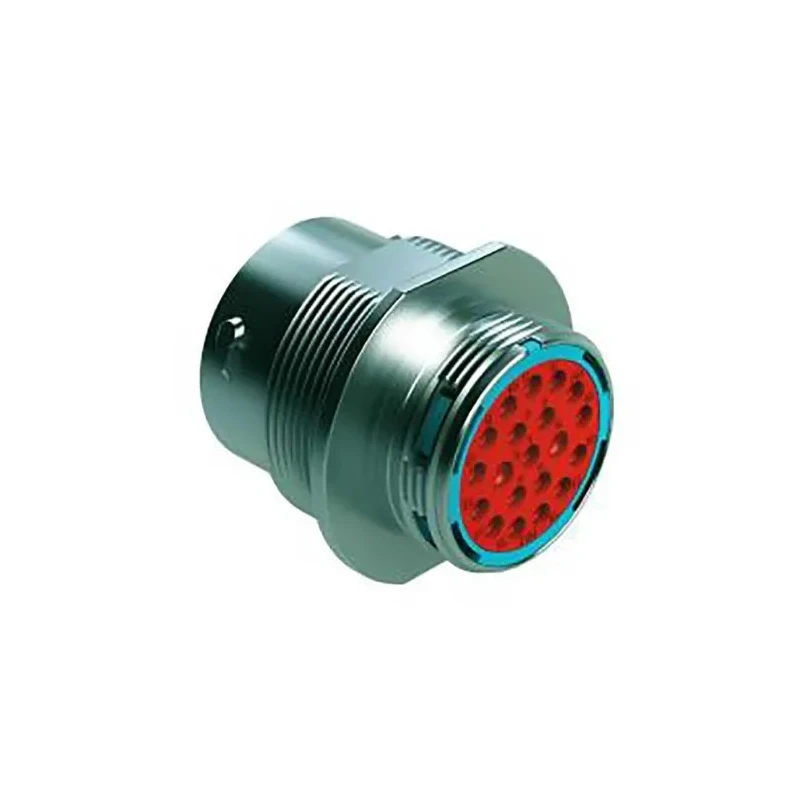

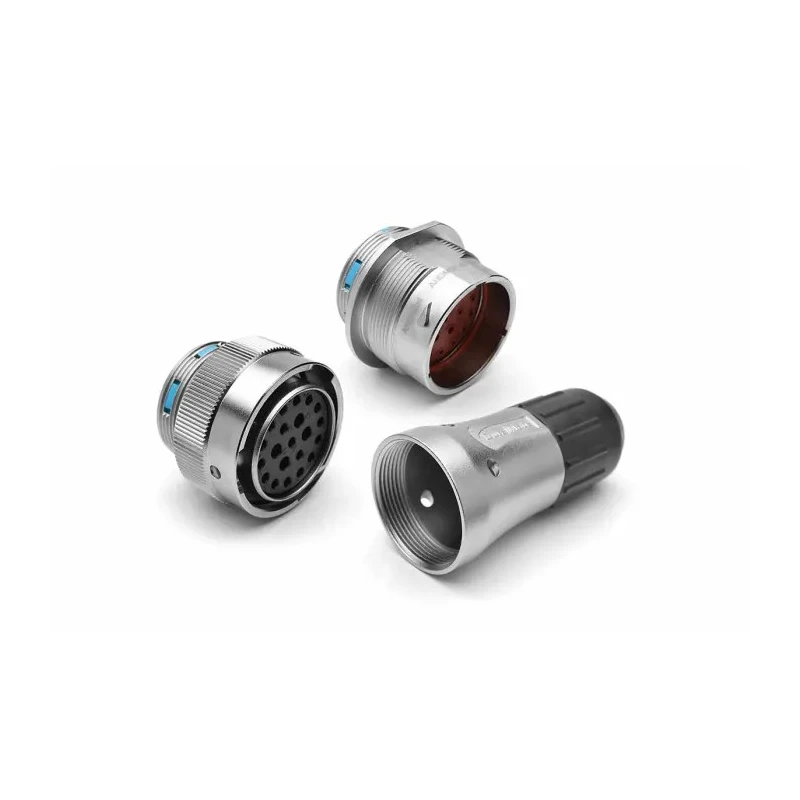

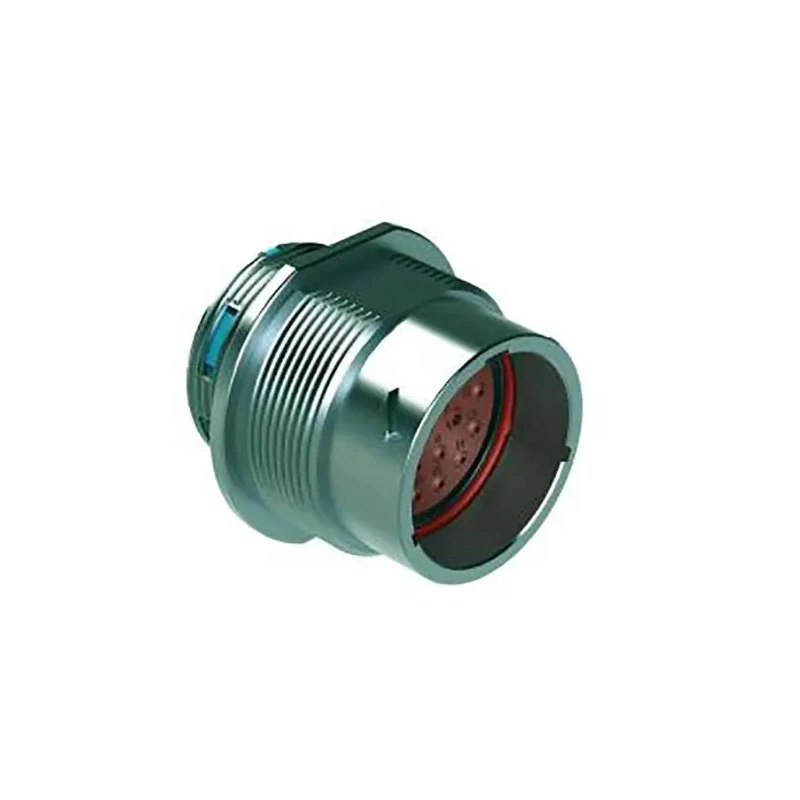

Amphenol Industrial Heavy Duty Metal Circular Connector, 20 Contacts, Plug Male, Standard Size, Cable Mount, Bayonet AHDM04
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250.0V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 16, 20A |
| Model | AHDM04 |
| IP Rating | IP67, IP69K |
| Mount Type | Cable |
| Housing Material | Zinc Alloy |
| Contact Material | Zinc |
| Series | AHDM04 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 20 |
| Contact Plating | Nickel |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shell Size | 18 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- Constructed with zinc alloy housing offering rugged durability in harsh environments.
- Rated IP67 and IP69K for superior sealing against dust and water ingress.
- Supports voltage up to 250 volts and current up to 16 and 20 amperes.
- Features bayonet locking mating type ensuring reliable connection.
- Contact material is zinc with nickel plating for corrosion resistance.
- Termination style is crimp ensuring strong cable attachment.
- Operates efficiently in temperatures ranging from -55°C to 125°C.
- Designed for industrial, manufacturing, and heavy equipment applications.
Product Description
Amphenol Industrial AHDM04-18-20PR is a robust, multi-pin circular connector designed for heavy duty environments requiring reliable and sealed connections. Featuring a 20-contact male plug configuration, this circular connector is constructed with high-quality zinc alloy housing that ensures mechanical durability and resistance to corrosion.
The connector meets stringent IP67 and IP69K ingress protection ratings, providing excellent sealing against dust, water, and harsh environmental conditions commonly encountered in industrial and off-road applications.
Operating voltage is rated up to 250 volts with current ratings of 16 and 20 amperes, making it suitable for a variety of power and signal transmission needs. The bayonet mating type lock offers quick and secure connections while the crimp termination type ensures solid cable engagement.
Contacts are manufactured from zinc and plated with nickel to enhance corrosion resistance and electrical performance. The connector can function in a wide temperature range from -55°C up to 125°C, making it an ideal choice for extreme climatic conditions.
Constructed with zinc alloy housing for robust mechanical strength. IP67 and IP69K ratings guarantee protection against dust and liquid ingress. Bayonet locking system for secure and quick mating. 20 contacts ensure versatile signal and power connections.
Crimp termination for reliable cable attachment. Nickel-plated zinc contacts for enhanced electrical and corrosion performance. Wide operating temperature range from -55°C to 125°C. Designed for industrial, heavy machinery, and manufacturing applications.
This durable circular connector from Amphenol Industrial is ideal for demanding industrial, laboratory, manufacturing, and heavy equipment settings where sealed, reliable electrical connections are critical. Browse the full range of Industrial Circular Connectors and related components on EnvMart for optimized connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 250 volts.
It supports current ratings of 16 and 20 amperes.
This connector has IP67 and IP69K ratings, providing protection against dust and water ingress.
The housing is made of zinc alloy, and the contacts are zinc with nickel plating for corrosion resistance.
It operates efficiently in temperatures ranging from -55°C to 125°C.
This model features 20 contacts.
It uses crimp termination for strong cable attachment.
The mating type is bayonet, ensuring a secure connection.
The shell size for this model is 18.
It is designed for industrial, manufacturing, and heavy equipment applications.
Yes, it is constructed to provide rugged durability in harsh environments, with excellent sealing capabilities.
The orientation of this model is straight.
