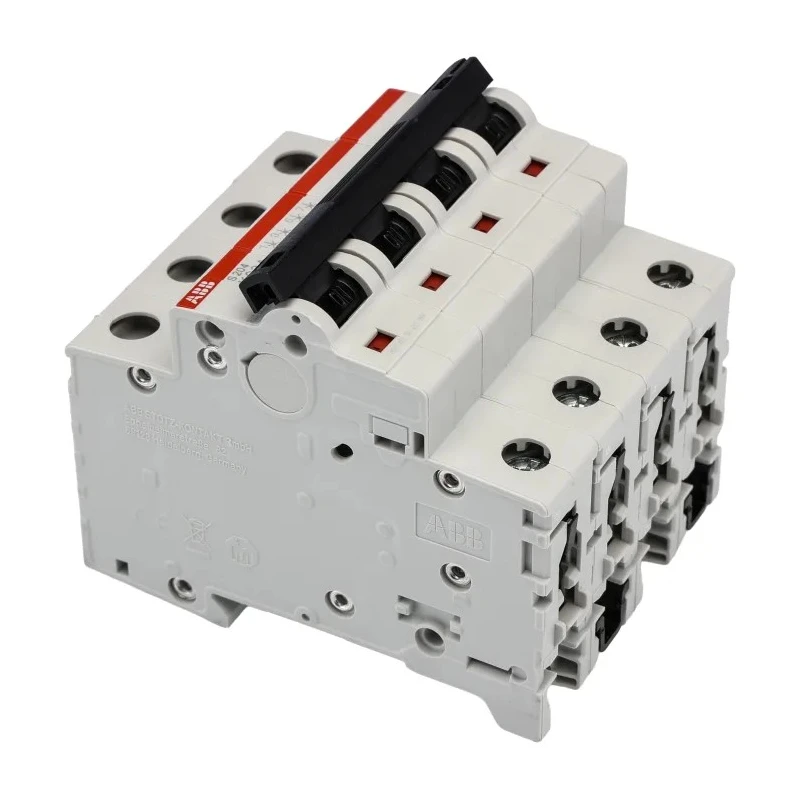

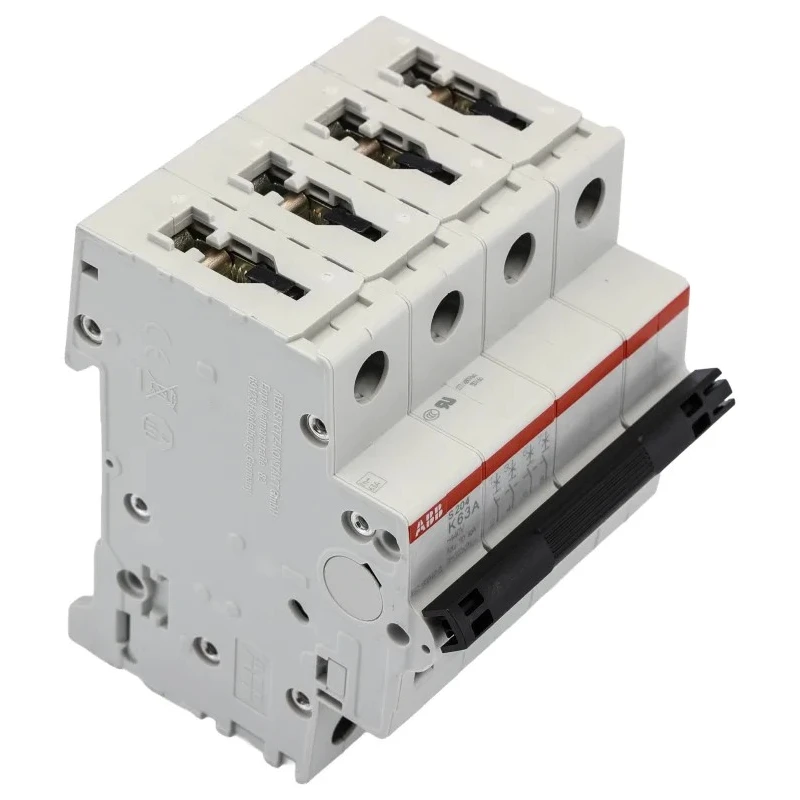

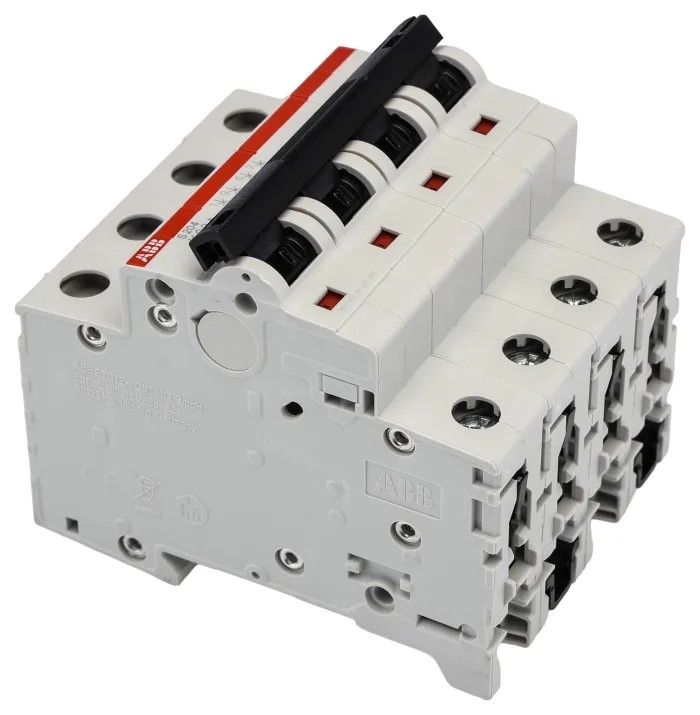

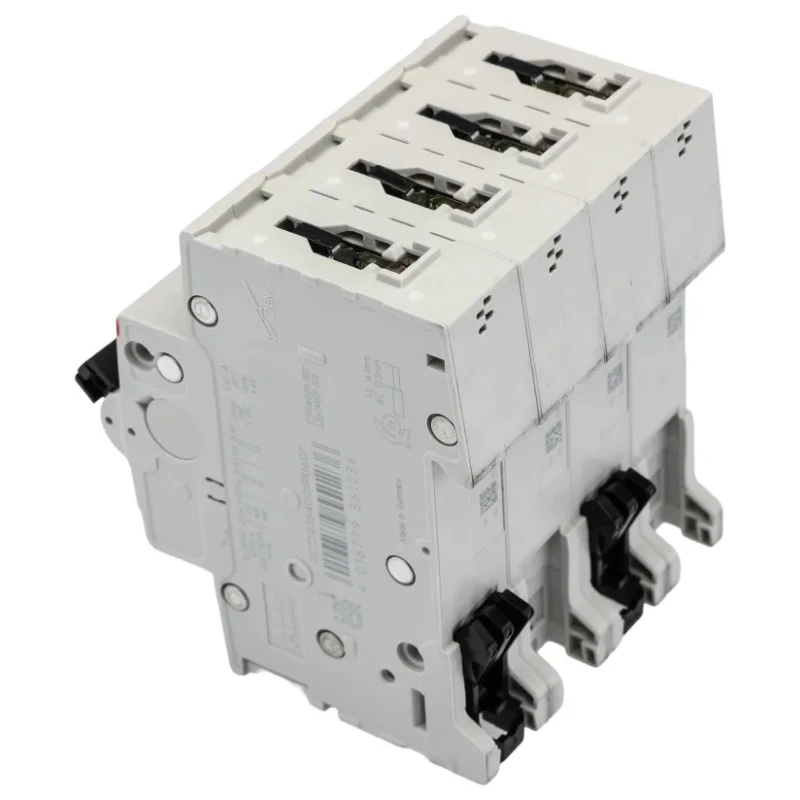

ABB System Pro M Compact S200M Miniature Circuit Breaker 4-Pole 63A Type K 400V AC 6kA Breaking 2CDS254001R0607 S204-K63
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS254001R0607 S204-K63 |
| Depth | 69mm |
| IP Rating | IP40, IP20 |
| Width | 70mm |
| Mount Type | DIN Rail |
| Current Rating | 63A |
| Series | S200M |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 4 |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type K |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
Key Features
- Compact design measuring 70mm width suitable for DIN rail mounting.
- Rated for 400V AC voltage operation ensuring compatibility with standard electrical systems.
- 6kA breaking capacity providing effective interruption of fault currents.
- Thermal tripping mechanism prevents overheating and potential circuit damage.
- Screw terminal type ensures secure and reliable electrical connections.
- IP40 and IP20 rated for protection against solid objects.
- Meets IEC/EN 60947-2 and IEC/EN 60898-1 standards for safety and performance.
- Designed for disassembly to enhance recyclability and sustainability.
Product Description
ABB 2CDS254001R0607 S204-K63 System Pro M Compact S200M Miniature Circuit Breaker is a 4-pole device engineered for industrial and commercial electrical protection applications operating at 400V AC with a current rating of 63A. It features a compact form factor with 70mm width, 88mm height, and 69mm depth, making it ideal for integration into existing DIN rail-mounted electrical panels.
This MCB incorporates a Type K tripping characteristic designed to provide selective overload protection with minimal false trips, ideal for safeguarding sensitive industrial machinery and automation systems. Its 6kA breaking capacity enables it to safely interrupt moderate fault currents, minimizing risks of equipment damage and fire hazards.
The device features a robust thermal tripping mechanism that responds to overheating conditions, enhancing circuit and device longevity. Screw-type terminals offer secure electrical connections, ensuring reliable operation in demanding industrial environments. The MCB's IP40 and IP20 protection ratings provide effective ingress protection, suitable for typical electrical cabinet installations.
Manufactured in Germany, this unit complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards, delivering assured safety and performance. Additionally, the product is designed for disassembly, supporting environmental sustainability through recyclability.
Applications include commercial electrical distribution, industrial machinery protection, light and heavy power distribution, and critical automation system circuit safeguarding. Compact 4-pole circuit breaker providing comprehensive electrical protection.
Type K tripping characteristic ensures accurate overload detection and selective tripping. 6kA breaking capacity suitable for moderate fault current interruption. Thermal mechanism prevents overheating damage for improved safety.
Secure screw terminals facilitate stable connectivity in installation. IP40 and IP20 rated for ingress protection ensuring durability. Compliant with key IEC/EN electrical safety standards. Designed for environmentally responsible disassembly and recycling.
Explore additional ABB circuit protection solutions and MCB ranges available at EnvMart for your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 6kA, allowing it to safely interrupt moderate fault currents.
It is rated for operation at 400V AC, ensuring compatibility with standard electrical systems.
This unit features a 4-pole design, making it suitable for various electrical protection applications.
The dimensions are 70mm in width, 88mm in height, and 69mm in depth, making it compact for DIN rail mounting.
It incorporates a thermal tripping mechanism that helps prevent overheating and potential circuit damage.
This model has an IP40 and IP20 rating, providing protection against solid objects and ensuring durability in typical installations.
It uses screw-type terminals, ensuring secure and reliable electrical connections.
It complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards for safety and performance.
The current rating for this model is 63A, suitable for various industrial and commercial applications.
It is intended for applications including commercial electrical distribution, industrial machinery protection, and critical automation systems.
This model is manufactured in Germany, ensuring compliance with high manufacturing standards.
The circuit breaker is designed for disassembly, supporting environmental sustainability through recyclability.
