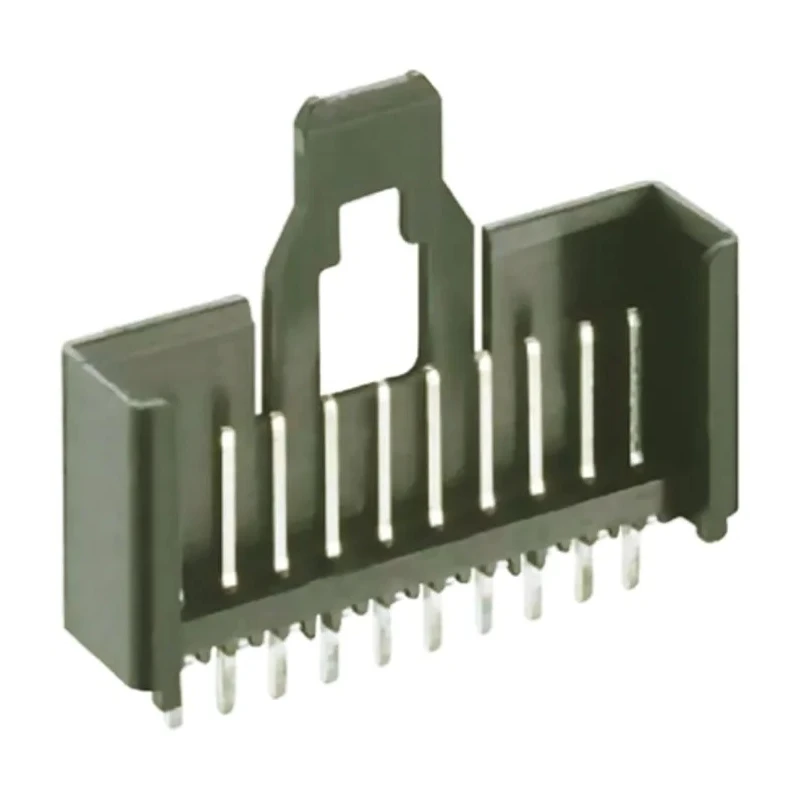

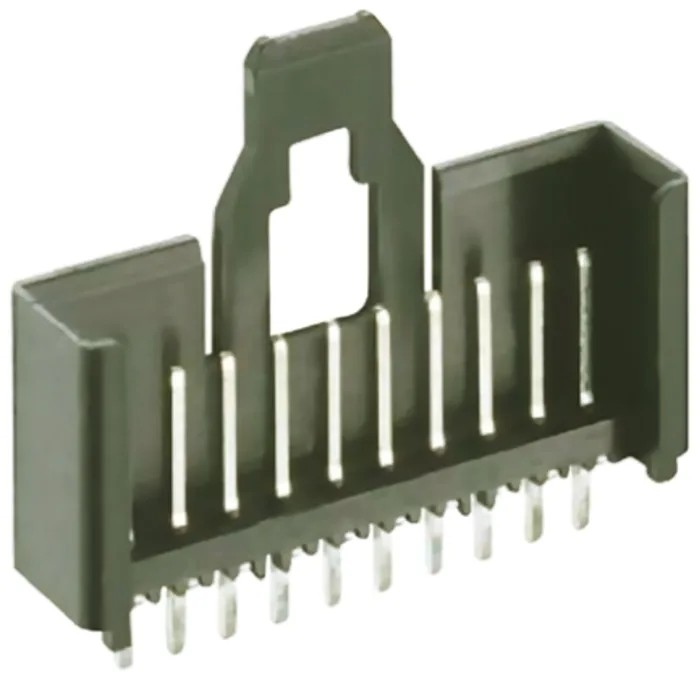

Lumberg Minimodul Series Straight Through Hole PCB Header, 8 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 2,5 MSF 08

Lumberg 2,5 MSF 08 Minimodul Series Straight Through Hole PCB Header features 8 contacts in a single row with a 2.5 mm pitch, designed specifically for wire-to-board connections using a shrouded housing.

This PCB header is constructed with glass filled polyamide housing material to ensure mechanical stability and long-term resistance to environmental factors. The contacts are made of brass and plated with tin, providing excellent electrical conductivity and corrosion resistance for reliable performance.

Operating specifications include a current rating of 5 A and temperature tolerance from -40°C to 120°C, suitable for diverse industrial and electronic conditions. The connector system is wire-to-board with through hole mounting, ensuring secure installation on PCBs.

The shrouded design provides additional protection and ensures compatible mating with corresponding crimp contacts (Lumberg 3114 Series), enabling indirect wire-to-board connections. This makes it ideal for harnessing single leads or flat cables in electronic device assemblies and industrial applications.

The product complies with important safety and performance standards such as DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11, guaranteeing that it meets rigorous international electrical guidelines.

Common applications include electronic manufacturing, industrial control systems, signal wiring, and other low-load current scenarios where durability and reliability are critical.

Features 8 electrical contacts arranged in a single row with a 2.5 mm pitch. Constructed with glass filled polyamide housing for enhanced durability. Brass contact material with tin plating ensures reliable conductivity and corrosion resistance.

Rated for 5 A current and operates safely up to 120°C maximum temperature. Shrouded design offers protection and secure mating with crimp contact housings. Mount type is through hole, facilitating robust PCB attachment. Suitable for signal and low load current applications in electronics and industrial environments.

Conforms to DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11 standards. Designed for use in manufacturing, electronics assembly, and wire harnessing applications. Explore more Electronics Components on EnvMart for high-quality PCB Headers and connectors for your industrial and manufacturing needs.
