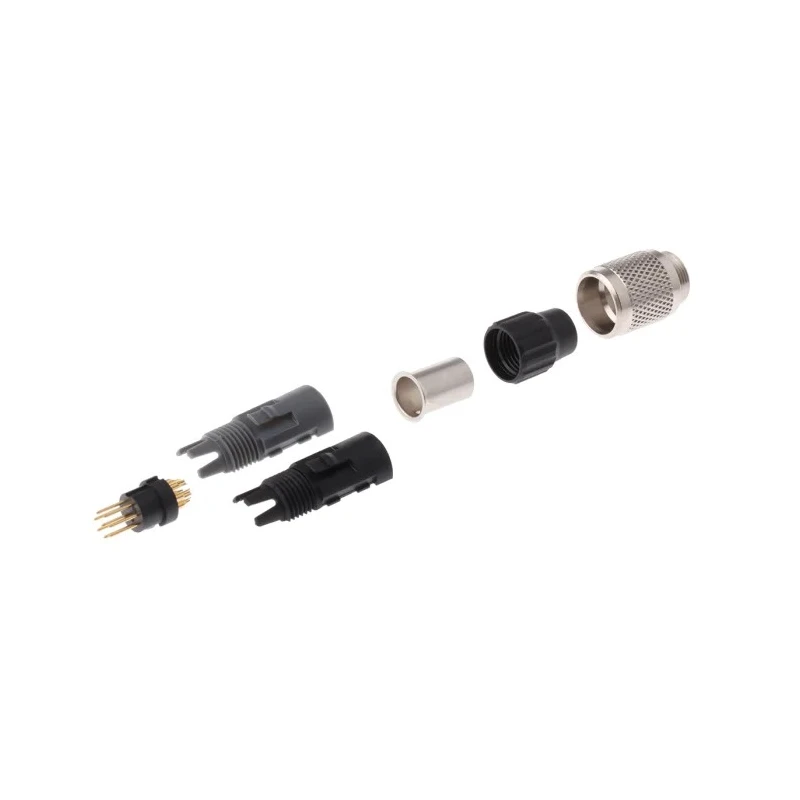

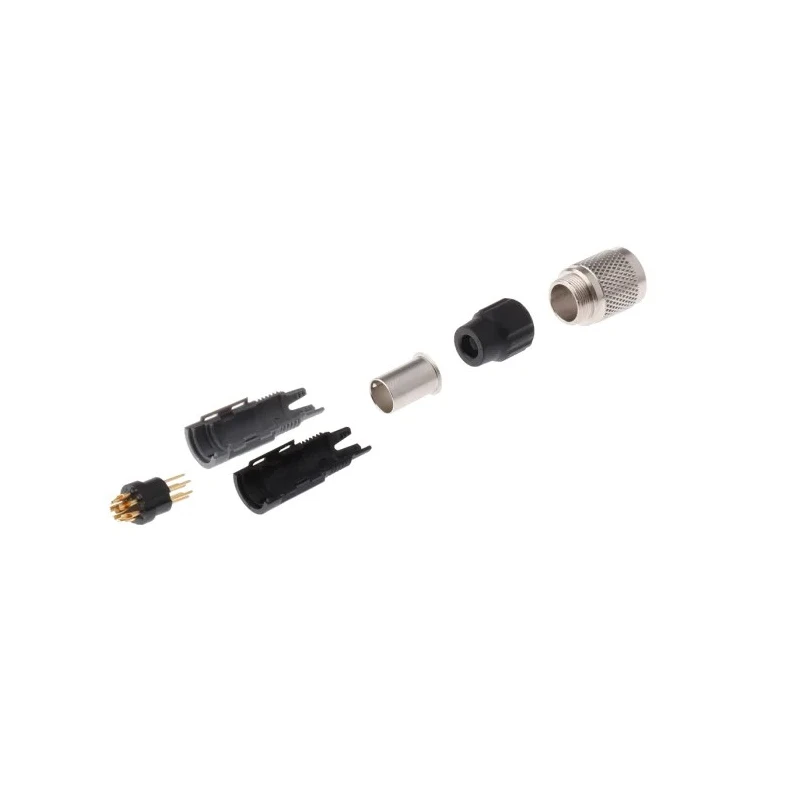

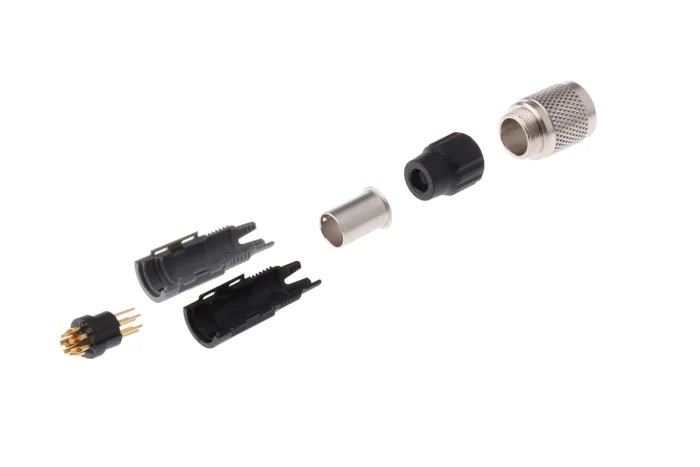

binder Circular Connector, 8 Contacts, Cable Mount, M9 Size, Plug Male, IP40 Ingress Protection, Metal 99-0479-100-08
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125.0V |
| Brand | binder |
| Orientation | Straight |
| Current | 1A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Metal |
| Contact Material | Brass |
| Series | 711 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shell Size | 11.5 |
| Mating Type | Screw-On |
| Connector Size | M9 |
| Plug/Socket | Plug |
Key Features
- The connector features a compact, subminiature design from the Series 711.
- It provides reliable screw-on mating with a straight orientation.
- Constructed with a metal housing and brass contacts plated with gold for durability.
- Operates at 125 volts and supports currents up to 1 ampere.
- The cable connector has integrated strain relief and uses solder termination.
- Rated for operation in temperatures ranging from -40°C to 85°C.
- The ingress protection rating IP40 safeguards against solid objects larger than 1 mm.
- The Series 711 connectors are designed for frequent connection and disconnection in industrial environments.
Product Description
binder 99-0479-100-08 Circular Connector is a subminiature 8-contact male cable plug designed for industrial use. It belongs to the Series 711 featuring a compact M9 connector size that ensures a secure screw-on connection with an IP40 ingress protection level.
The metal housing delivers robust protection while the brass housing contacts plated in gold provide excellent conductivity and resistance to corrosion. This connector operates safely at a voltage of 125 volts and a current rating of 1 ampere, making it ideal for a variety of industrial and electronic control applications.
Equipped with solder terminations and integrated cable strain relief, the connector ensures mechanical stability during frequent connect and disconnect cycles. The straight orientation facilitates easy installation within compact spaces.
Designed to withstand operating temperatures from -40° C to 85° C, the connector performs reliably across harsh environments, supporting industrial automation, machinery, transportation equipment, and power distribution applications.
The connector’s subminiature size enables use in tight installation areas. IP40 rating protects against solid particle ingress while not rated for liquid ingress. Gold-plated brass contacts enhance electrical performance and durability.
Screw locking mechanism ensures secure mating and prevents accidental disconnection. Manufactured in Germany to high standards of quality and precision. Ideal for industrial, manufacturing, automation, and electronic components installations.
Compatible with various cable assemblies, the binder Series 711 M9 connectors facilitate efficient and secure electrical connections in demanding industrial settings. Explore more Industrial Circular Connectors on EnvMart for solutions tailored to your electronic and automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector operates safely at a voltage of 125 volts.
It supports currents up to 1 ampere.
The connector has an IP40 ingress protection rating, which safeguards against solid objects larger than 1 mm.
It features a metal housing and brass contacts plated with gold for enhanced conductivity and corrosion resistance.
The connector operates reliably in temperatures ranging from -40°C to 85°C.
This model has 8 contacts.
It uses solder termination for secure connections.
It is a subminiature M9 connector size with a shell size of 11.5.
The connector features a screw-on mating type to ensure a secure connection and prevent accidental disconnection.
This connector is manufactured in Germany.
It is designed for use in industrial automation, machinery, transportation equipment, and power distribution applications.
This model is designed for cable mounting.
