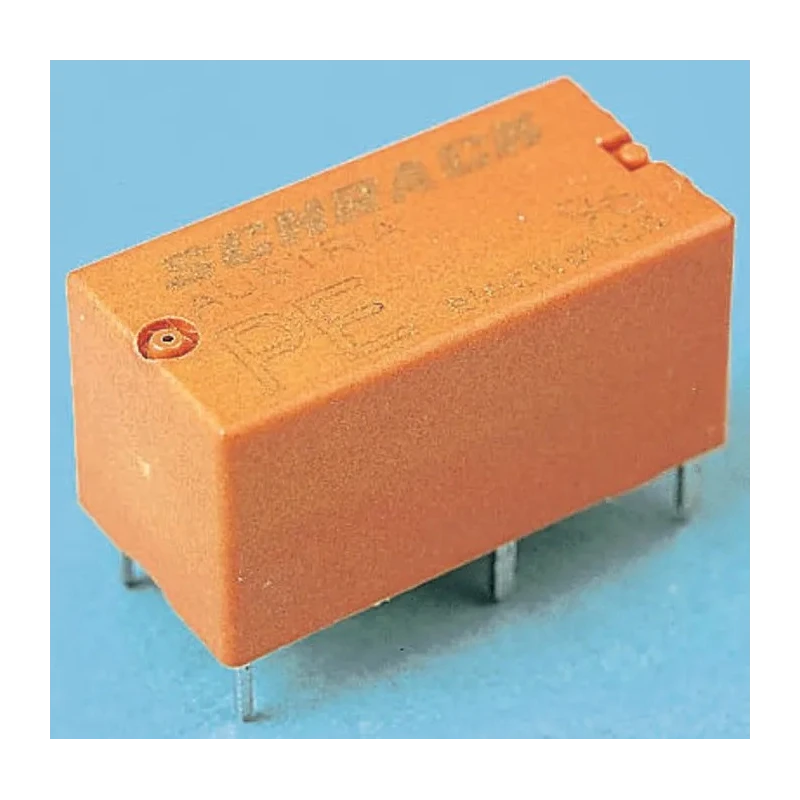

TE Connectivity PE Series PCB Power Relay 24V dc Coil 5A Switching Current SPST 5-1415535-1

TE Connectivity 5-1415535-1 PCB Power Relay is a precise electronic switching component designed for industrial, laboratory, and commercial applications requiring reliable switching performance. It features a 24V dc coil and supports a switching current of 5A in a single-pole single-throw (SPST) contact configuration. This relay is designed for PCB mounting, enabling efficient integration into a variety of electronic control systems.

The relay body measures 20mm in length, 10mm in width, and 10mm in height, making it compact and space-saving. The contact material is a high-quality silver alloy, providing excellent conductivity and long operational life. With a coil resistance of 2.7kΩ and coil power consumption of 211mW, this relay exhibits high sensitivity and efficient power usage.

Operating reliably over a temperature range of -40°C to +85°C, this PE series relay conforms to international standards including REACH, VDE, UL, and RoHS, ensuring safety and environmental compliance. Its switching AC voltage rating is 400V ac, suitable for multiple electrical control scenarios in household appliances, industrial electronic equipment, and automation controls.

Coil voltage rated at 24V dc for reliable operation. Switching current capacity of 5A suited for industrial and household appliances. Compact dimensions with 20mm length, 10mm width, and 10mm height. Silver alloy contact material ensures good conductivity and durability.

Wide operating temperature range from -40°C to 85°C. Coil resistance of 2.7kΩ and coil power consumption of 211mW indicating high coil sensitivity. Designed as PE series relay, meeting REACH, VDE, UL, and RoHS standards.

Suitable for applications in industrial electronics, household controls, and automation equipment.

This relay is ideally used in industrial automation, manufacturing controls, HVAC, water treatment systems, and other applications requiring robust and precise power relay switching. Its solder terminal type facilitates secure PCB integration, promoting long-term reliability.
