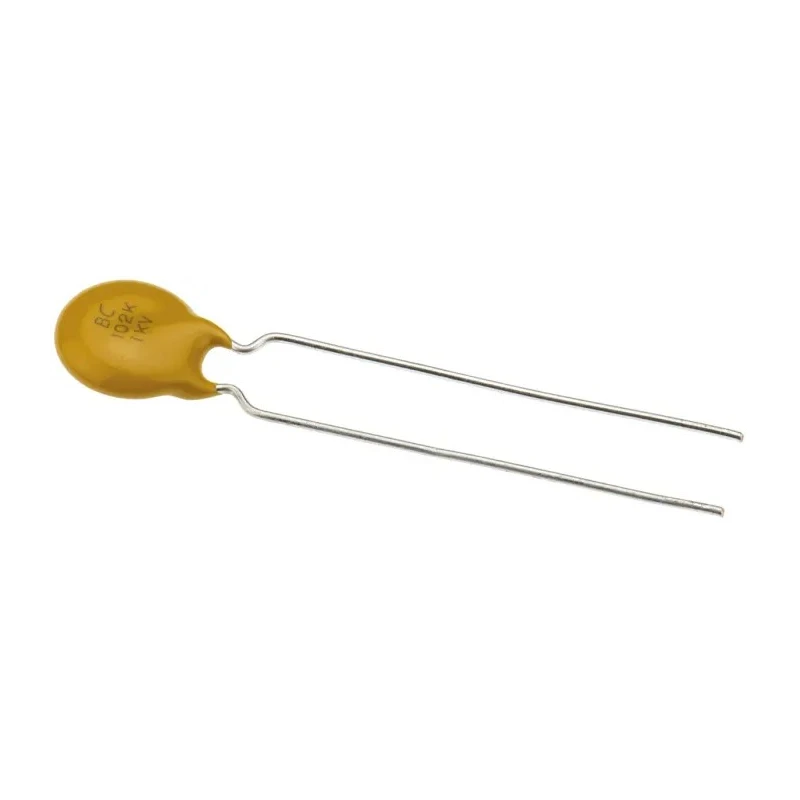

Vishay Single Layer Ceramic Capacitor 1 nF 1kV DC ±10 % S3N Dielectric, Through Hole, Radial Terminal F102K33S3NN63J5R

Vishay F102K33S3NN63J5R Single Layer Ceramic Capacitor is a high-quality disc type capacitor providing 1 nF capacitance and rated for 1kV DC voltage with a tolerance of ±10 %.

Constructed using S3N dielectric, this ceramic class 1 capacitor is designed for demanding electronic circuits such as switching mode power supplies (SMPS), high frequency ballasts, and snubber circuits. The capacitor features a sturdy ceramic disc with silver plating on both sides and epoxy resin encapsulation meeting UL 94 V-0 flame resistance standards, ensuring durability and safety under high temperature conditions up to 125°C.

The component is mounted through hole with radial terminal leads made of tinned copper (diameter 0.6 mm or 0.8 mm), kinked for easy insertion and available in lead spacings of 5 mm, 7.5 mm, or 10 mm. This two-pin device has a dissipation factor of 0.2 %, contributing to low losses in electronic circuits.

Industrial and commercial applications for this capacitor include power supply filtering, noise suppression, and energy storage in high voltage environments. The product complies with IEC 60384-9 standards and RoHS directives, assuring environmental friendliness and reliability.

Constructed with S3N dielectric for high stability and low losses. Through hole mount with radial terminals ensures robust mechanical connection. Epoxy resin encapsulation provides flame resistance to UL 94 V-0. Designed to withstand operating temperatures up to 125°C for harsh environments.

Suitable for SMPS, HF ballast, snubber, and high voltage electronic circuits. Compliance to industry standards IEC 60384-9 and environmental RoHS. Pin count of 2 with kinked leads improves assembly efficiency. Low dissipation factor of 0.2 % ensures efficient operation.
