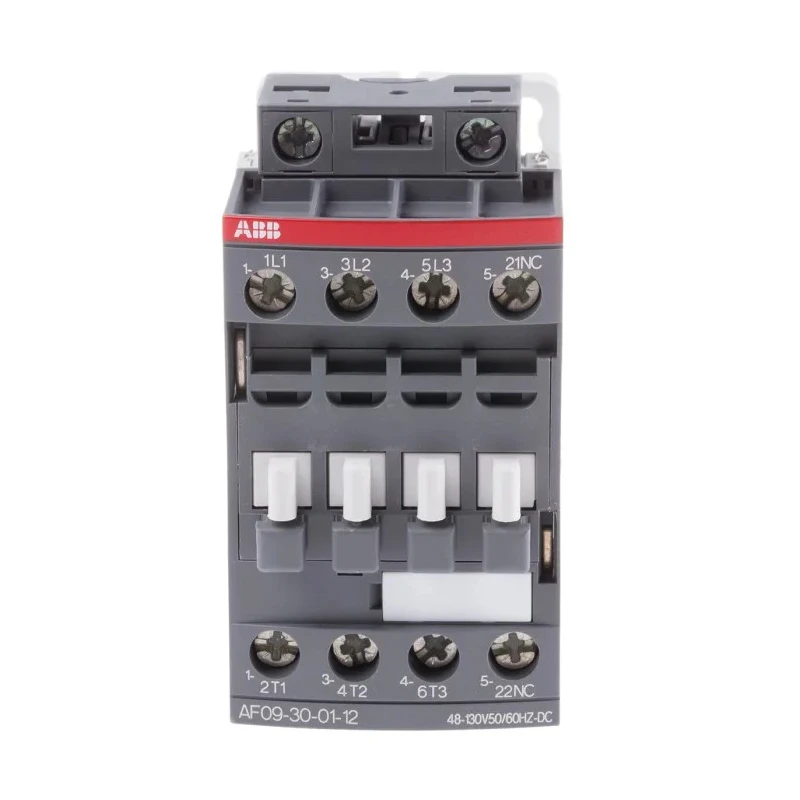

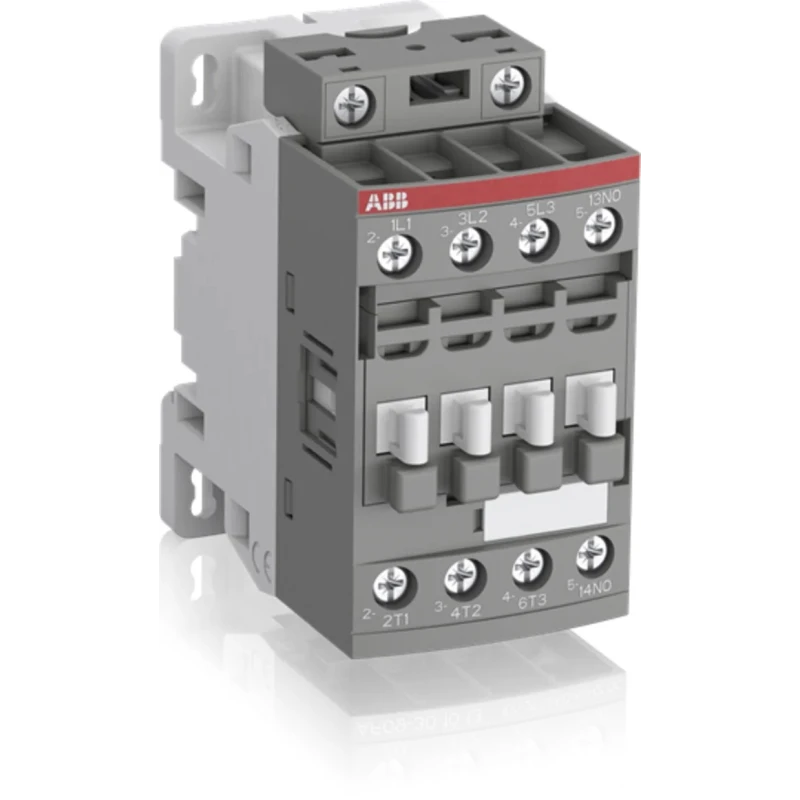

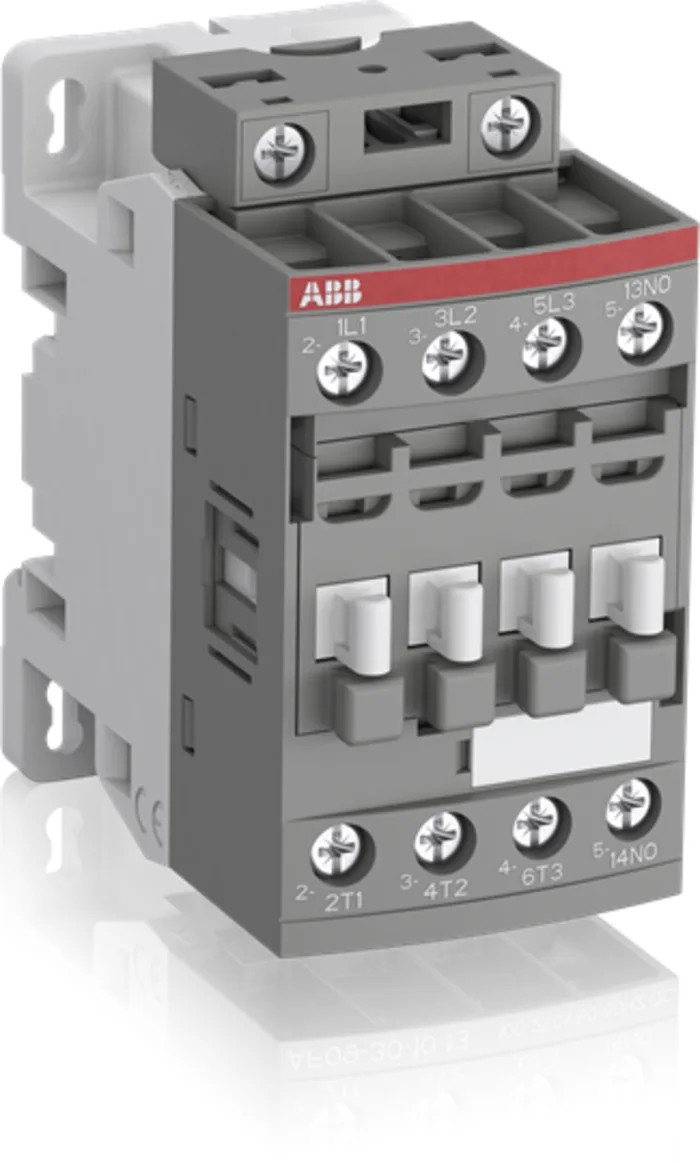

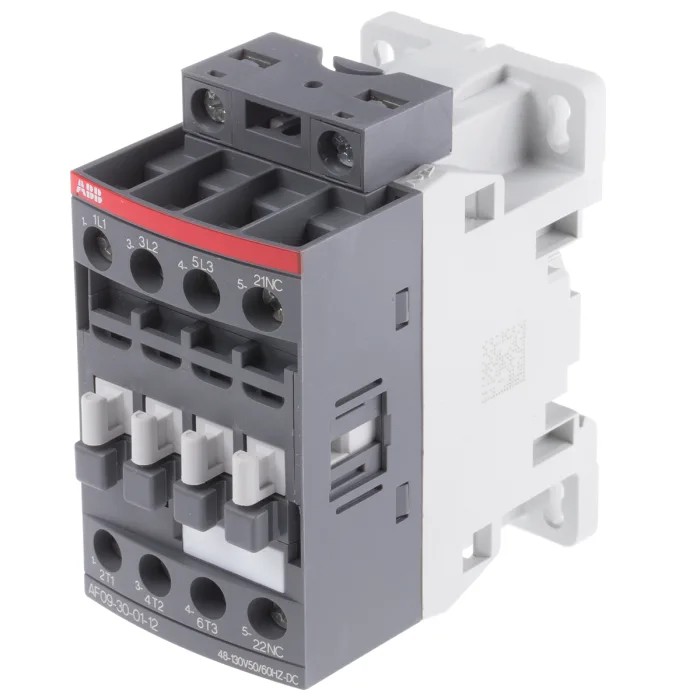

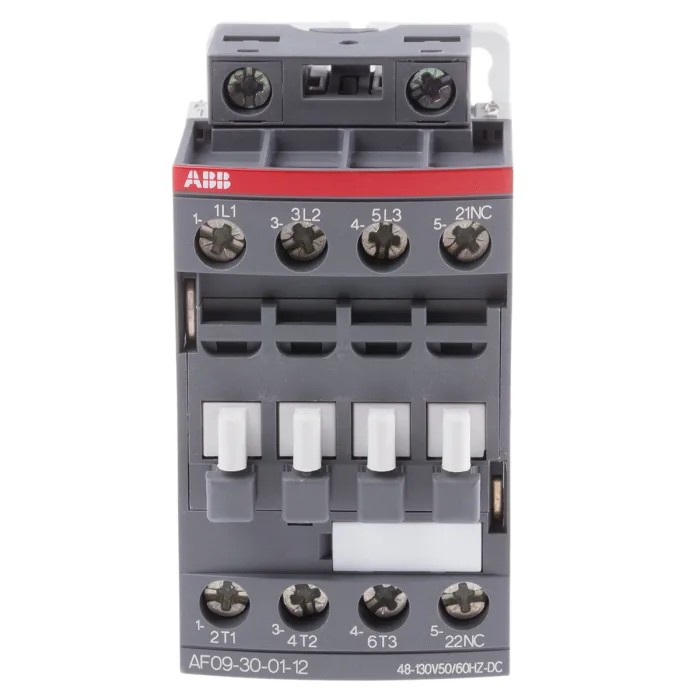

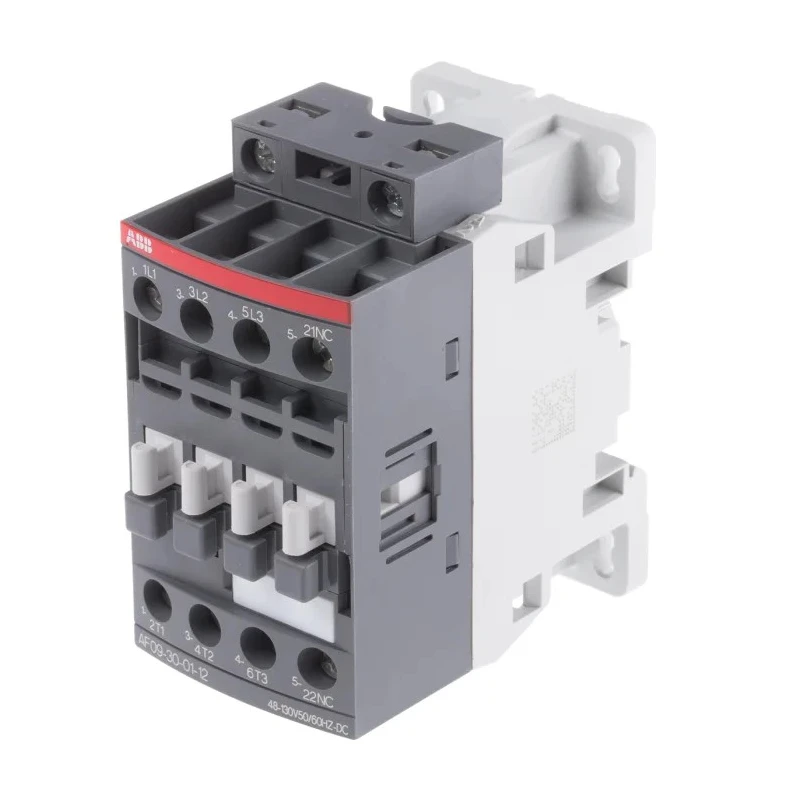

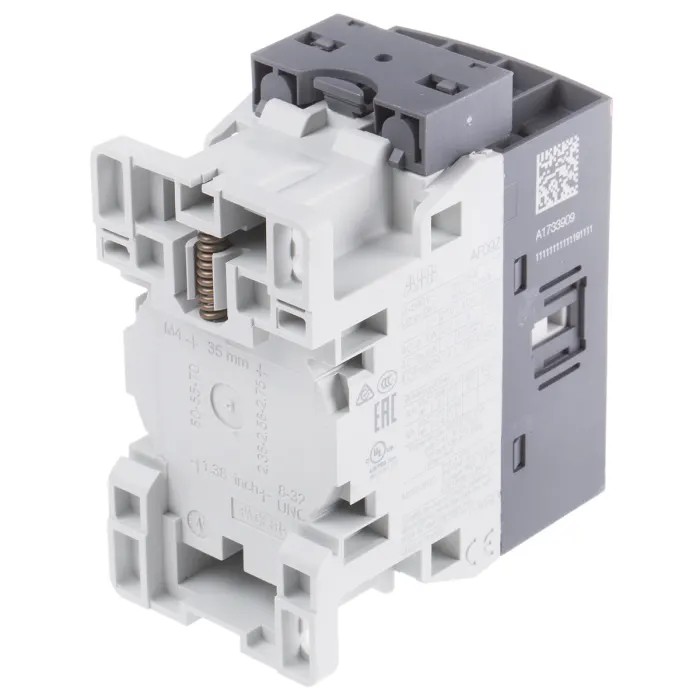

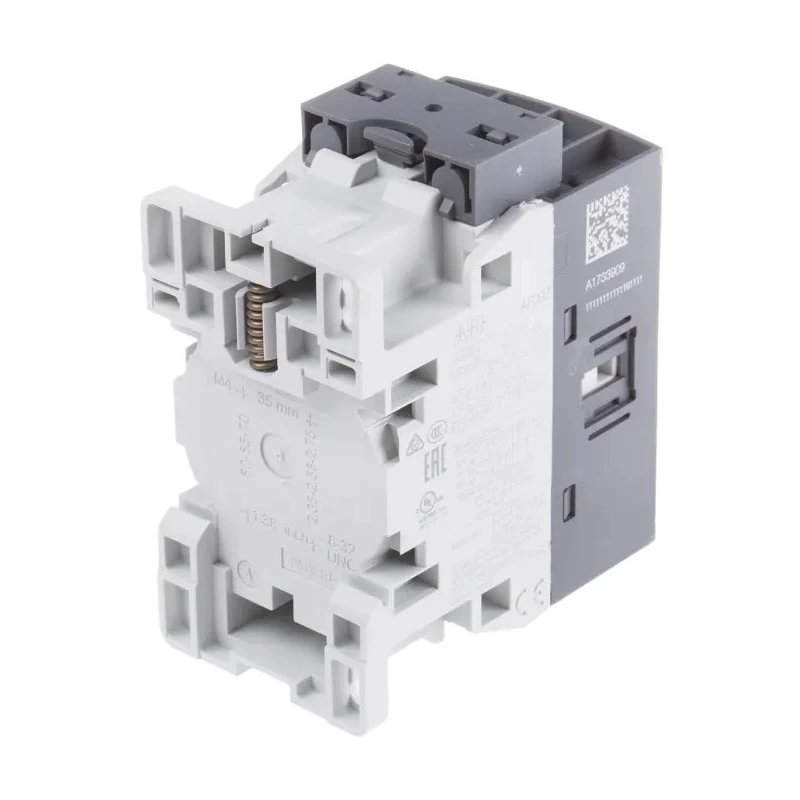

ABB 3-Pole Contactor with 110V DC Coil, 7A Contact Current, 4 kW Power Rating AF09
Specifications
| Country of Origin | India |
|---|---|
| Brand | ABB |
| Function | Motor Control |
| Length | 86mm |
| Model | AF09 |
| Depth | 77mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | AF09 |
| Power Rating | 4kW |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC 60947-4-1 |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V dc |
| Normal State Configuration | 3 NO |
| Contact Current | 7A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 130V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- Features a 110V DC coil voltage for efficient operation.
- Equipped with three poles and a single auxiliary contact with 1 NC configuration.
- Compact dimensions of 86 mm length, 77 mm depth, and 45 mm width.
- Rated for contact voltage up to 690V AC and operational current up to 25A.
- Built to withstand harsh environmental conditions with an operating temperature range from -40°C to +70°C.
- IP20 rated providing protection against dust and touch safety.
- Designed for DIN rail mounting offering easy installation.
- Constructed according to IEC 60947-4-1 standards ensuring quality and reliability.
Product Description
ABB AF09 contactor with model 1SBL137001R1201 AF09-30-01-12 features a 110V DC coil, 3 poles, and is rated for a 7 A contact current and 4 kW power, suitable for motor control applications.
This compact contactor measures 86 mm in length, 77 mm in depth, and 45 mm in width, allowing space-saving installation in electrical control panels. It is designed for DIN rail mounting which simplifies the setup process.
The contactor operates reliably in a wide temperature range from -40°C to +70°C and meets the IEC 60947-4-1 standards for contactors. Its IP20 rating provides touch protection and resistance to dust ingress, making it suitable for demanding industrial environments.
The product includes one auxiliary contact configured as 1 NC, supporting control circuit voltages up to 130V. It supports high operational currents up to 25A for versatile motor switching and control duties.
This contactor is built for durability, with surge protection and a 6 kV impulse withstand voltage rating to guard against transient voltage spikes, ensuring stable operation in industrial applications such as construction, factory automation, mining, and mineral processing.
110V DC coil voltage ensures efficient electromagnetic operation. Three poles provide multi-circuit connection capability for motor control. Auxiliary contact for additional control functions improves system flexibility.
Compact design optimizes space in panels and control enclosures. Wide temperature operating range supports harsh environmental conditions. DIN rail mounting allows quick and secure installation. Compliance with IEC 60947-4-1 standards guarantees performance and safety.
High impulse voltage rating protects against electrical surges. IP20 rating offers touch safety and dust protection in industrial settings.
This ABB AF09 contactor is ideal for industrial applications requiring reliable motor control and efficient power switching, including construction, automation, mining, and mineral processing industries. Its robust construction and versatile features make it a dependable choice for enhancing operational efficiency and system protection.
Explore more power Contactors and related electrical components in EnvMart's comprehensive electronics and electricals category for your industrial control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ABB AF09 contactor has a power rating of 4 kW.
This model supports an operational current of up to 25A.
The contactor measures 86 mm in length, 77 mm in depth, and 45 mm in width.
It is designed for DIN rail mounting, allowing for easy installation.
The coil voltage for this contactor is 110V DC.
This contactor features a normal state configuration of 3 NO and includes one auxiliary contact configured as 1 NC.
The rated contact voltage for the ABB AF09 is up to 690V AC.
It operates effectively within a temperature range of -40°C to +70°C.
This contactor is constructed according to IEC 60947-4-1 standards.
The contactor has three poles, allowing for multi-circuit connections.
It includes one auxiliary contact configured as 1 NC, which supports additional control functions.
It is suitable for motor control applications in various industrial settings, including construction and automation.
