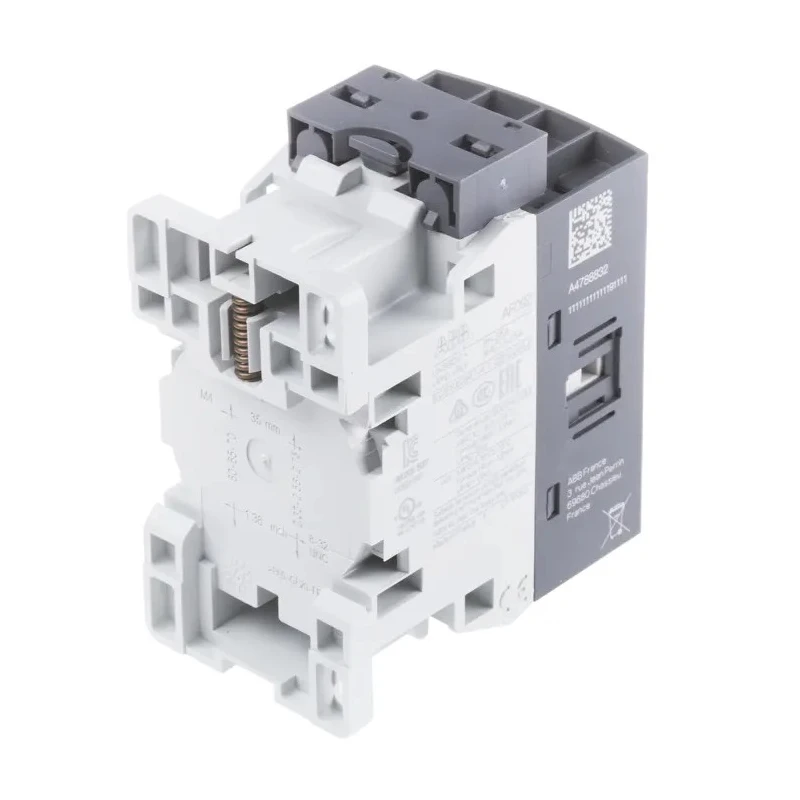

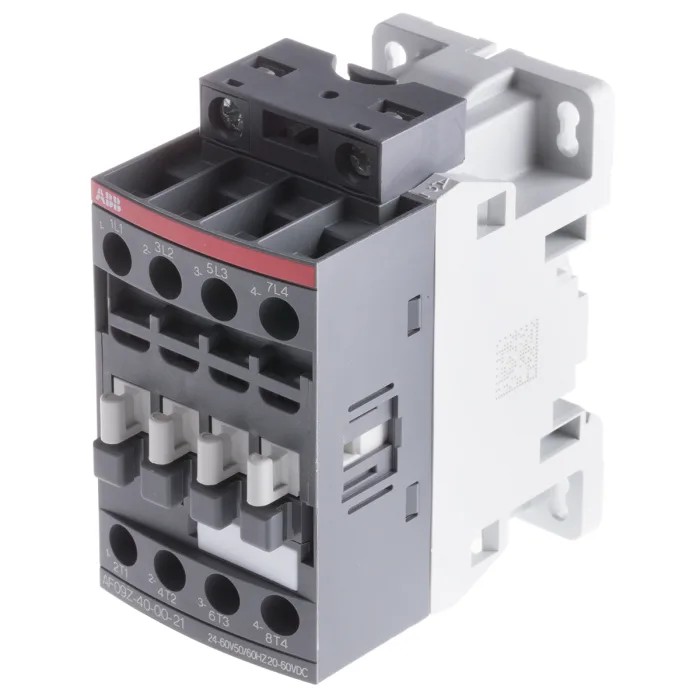

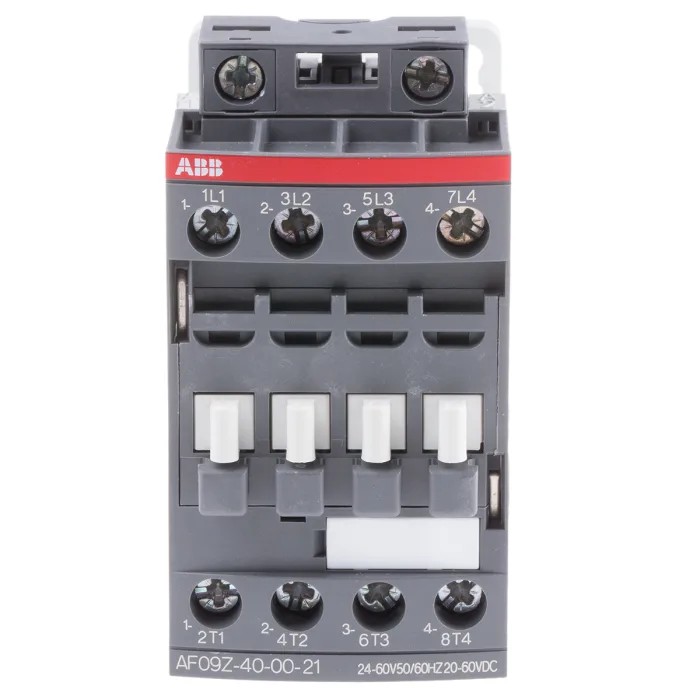

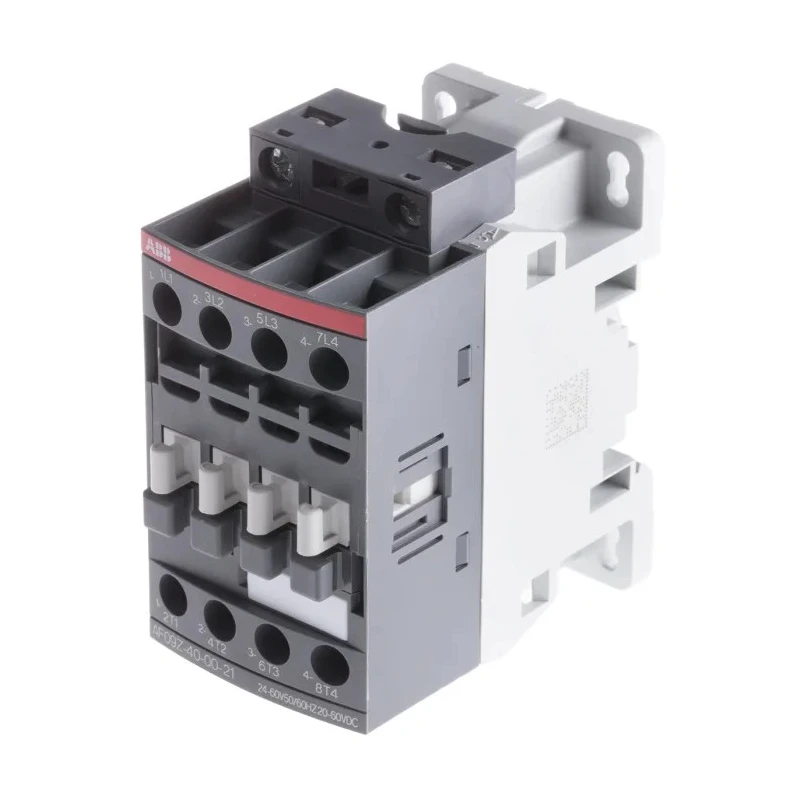

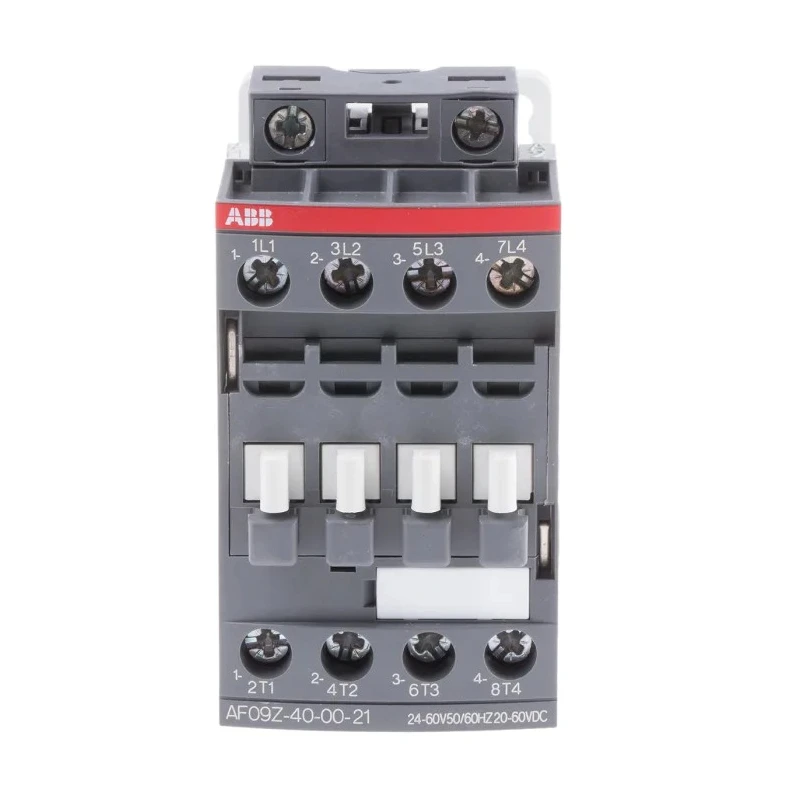

ABB Contactor 4-Pole 7 A 4 kW 24V AC/DC Coil 60V Control Voltage 4 NO Terminals AF09Z 1SBL136201R2100 AF09Z-40-00-21
Specifications
| Country of Origin | India |
|---|---|
| Brand | ABB |
| Function | Motor Control |
| Length | 86mm |
| Model | AF09Z |
| Depth | 77mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | AF09Z |
| Power Rating | 4kW |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | IEC 60947-4-1 |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac/dc |
| Normal State Configuration | 4 NO |
| Contact Current | 7A |
| Auxiliary Contact Configuration | 4 NO |
| Operational Current Ie | 30A |
| Control Circuit Voltage Uc | 60V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 4 |
| ABB AF09Z Contactor, 12V dc Coil, 4-Pole, 25 A, 4 kW 20V, 4 NO, 690V acBrand | ABB |
Key Features
- Operates at 24V AC/DC coil voltage with a control circuit voltage up to 60V.
- Designed for motor control with a power rating of 4 kW.
- Features 4 normally open (NO) contacts and screw terminal connections for easy wiring.
- Mounts conveniently on a DIN rail for efficient installation.
- Supports operational current up to 30 A within a temperature range of -40°C to 70°C.
- Complies with IEC 60947-4-1 industrial standards ensuring reliability.
- Suitable for power distribution systems and high-current switching industrial environments.
Product Description
ABB AF09Z contactor model 1SBL136201R2100 AF09Z-40-00-21 is a high-quality 4-pole electrical contactor designed for AC motor control applications. It operates with a 24V AC/DC coil voltage and supports a control circuit voltage of up to 60V, making it versatile for various industrial control systems.
The contactor features a contact current rating of 7 A and delivers a power rating of 4 kW, allowing it to efficiently handle motor loads and switching tasks. Its construction includes 4 normally open (NO) main contacts and 4 auxiliary NO contacts, all designed with screw terminals for secure and straightforward wiring.
This device is built to mount on standard DIN rails, simplifying installation in electrical cabinets. It operates reliably across a broad temperature range from -40°C up to 70°C and meets IEC 60947-4-1 standards, reflecting its compliance with international industrial safety and performance requirements.
With compact dimensions (Height 86mm, Depth 77mm, Width 45mm), the ABB AF09Z contactor suits applications requiring robust motor control in tight spaces. It finds widespread use in industrial automation, power distribution panels, and various mechanical and electrical control circuits.
Operates with built-in surge protection for enhanced safety during motor switching. Ideal for AC motor control in manufacturing and automation industries. Enables efficient energy distribution and motor protection in control gear systems.
Durable screw terminal design ensures long-term connectivity integrity. Compliant with rigorous industrial performance and safety standards. Compact design facilitates integration into power distribution panels. Can be used in a variety of environments, but best suited for indoor protected installations.
This ABB Contactor is an essential component for industrial electrical setups requiring reliable motor control and efficient power management. EnvMart offers this model as part of a comprehensive range of electrical automation products suited for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ABB AF09Z contactor has a power rating of 4 kW, making it suitable for motor control applications.
This model operates with a coil voltage of 24V AC/DC.
The maximum operating temperature for this contactor is 70°C.
This contactor features 4 poles, specifically designed for motor control applications.
The contact current rating of the ABB AF09Z is 7 A.
It uses screw terminals for secure and straightforward wiring connections.
The dimensions of this contactor are 86 mm in height, 77 mm in depth, and 45 mm in width.
The operational current rating for the ABB AF09Z is 30 A.
This contactor complies with the IEC 60947-4-1 industrial standards, ensuring its reliability in various applications.
The control circuit voltage for the ABB AF09Z is up to 60V.
It is designed for mounting on DIN rails, facilitating efficient installation in electrical cabinets.
This contactor is suitable for motor control, power distribution systems, and high-current switching in industrial environments.
