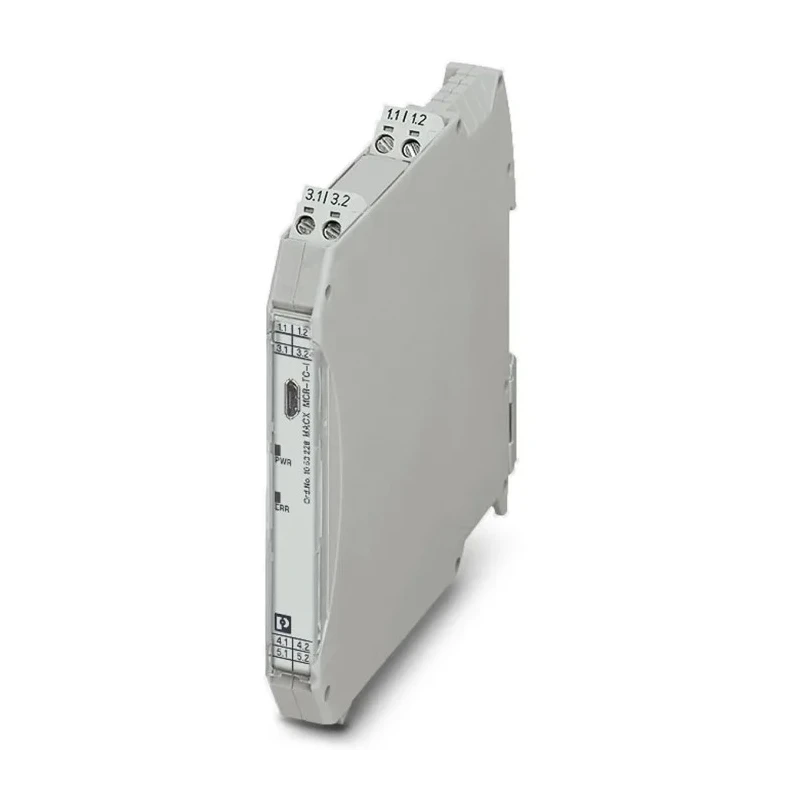

Phoenix Contact MACX MCR Series Signal Conditioner Voltage Thermocouple Input Current Output 24V dc Supply ATEX 1050228
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | , Thermocouple Input, Current Output, 24V dc Supply, ATEX RS Stock No |
| Brand | Phoenix Contact |
| Model | 1050228 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | MACX MCR |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Output Range | 0 → 20 mA |
| Input Range | -250 → +2500 °C, -1000 → 1000 mV |
| Supply Voltage | 24V dc |
| Hazardous Area Certification | ATEX |
| Input Signal Type | Voltage, Thermocouple |
| Output Signal Type | Current |
| Signal Conditioner Type | Signal Conditioners with SIL Functional Safety |
| SIL Level | 2 |
| Temperature transducer | converts signals from thermocouples and mV sources into 0/4…20 mA signals. Freely programmable, 3-way electrical isolation, screw connection, SIL |
Key Features
- Input signal types support voltage and thermocouple sensors.
- Output signal range is 0 to 20 mA for accurate process control.
- Supports input ranges from -250 to +2500 °C and -1000 to 1000 mV.
- Compact housing width of 12.5 mm suitable for DIN rail mounting.
- Provides SIL level 2 safety and is certified for hazardous areas (ATEX).
- Operating temperature range from -40 to 70°C ensuring wide environmental usage.
- Screw terminal connections provide secure and reliable wiring.
- High electrical isolation prevents interference between input, output, and supply.
Product Description
Phoenix Contact 1050228 MACX MCR Series signal conditioner offers precise conversion of voltage and thermocouple input signals to a current output range of 0 to 20 mA. Powered by a 24V dc supply, it is engineered for industrial and hazardous environment applications with ATEX certification.
This device supports input ranges from -250 to +2500 °C for temperature sensing and -1000 to 1000 mV for voltage measurement. The signal conditioner provides SIL level 2 functional safety, ensuring reliable operation in critical control systems.
The compact design features a DIN rail mount with a slim 12.5 mm housing width, optimizing panel space. Screw terminal connections ensure robust and easy wiring installation. The unit operates reliably within a temperature range of -40 to 70°C and offers IP20 protection.
Electrical isolation separates input, output, and supply lines, preventing signal interference and enhancing operational safety. Configuration is facilitated through dedicated software (Analogue-CONF or DTM), enabling flexible parameter adjustments.
Compliant with numerous international safety and electromagnetic compatibility standards, including IEC/EN 61010-1, UL 61010, CE, and others, this Phoenix Contact signal conditioner is suitable for automation, process control, laboratory instrumentation, and other demanding industrial environments.
Input signal types support voltage and thermocouple sensors. Output signal range is 0 to 20 mA for accurate process control. Supports input ranges from -250 to +2500 °C and -1000 to 1000 mV. Compact housing width of 12.5 mm suitable for DIN rail mounting.
Provides SIL level 2 safety and is certified for hazardous areas (ATEX). Operating temperature range from -40 to 70°C ensuring wide environmental usage. Screw terminal connections provide secure and reliable wiring. High electrical isolation prevents interference between input, output, and supply.
Configuration is possible via software tools for flexible setup. Compliant with multiple international standards including IEC/EN 61010-1 and UL 61010.
This Phoenix Contact MACX MCR signal conditioner is ideal for electrical automation, process industries, HVAC control systems, laboratory instrumentation, and manufacturing facilities requiring robust, safe, and accurate signal conditioning solutions.
Explore more signal conditioners and automation solutions at EnvMart.
Explore more products in our Signal Conditioners & Isolators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports voltage and thermocouple input signals, allowing for versatile measurement applications.
The output signal range is 0 to 20 mA, providing accurate process control.
It supports input ranges from -250 to +2500 °C for temperature sensing and -1000 to 1000 mV for voltage measurement.
It requires a 24V dc supply for operation.
The housing width is 12.5 mm, and it is designed for DIN rail mounting, optimizing space in control panels.
It operates reliably within a temperature range of -40 to 70°C, making it suitable for various environmental conditions.
It is certified for hazardous areas under ATEX, ensuring safe operation in industrial environments.
This model provides SIL level 2 functional safety, suitable for critical control systems.
High electrical isolation separates input, output, and supply lines, preventing signal interference and enhancing operational safety.
It features screw terminal connections for secure and reliable wiring installation.
It complies with multiple international standards, including IEC/EN 61010-1 and UL 61010, ensuring safety and compatibility.
Configuration can be facilitated through dedicated software tools, such as Analogue-CONF or DTM, allowing for flexible parameter adjustments.
