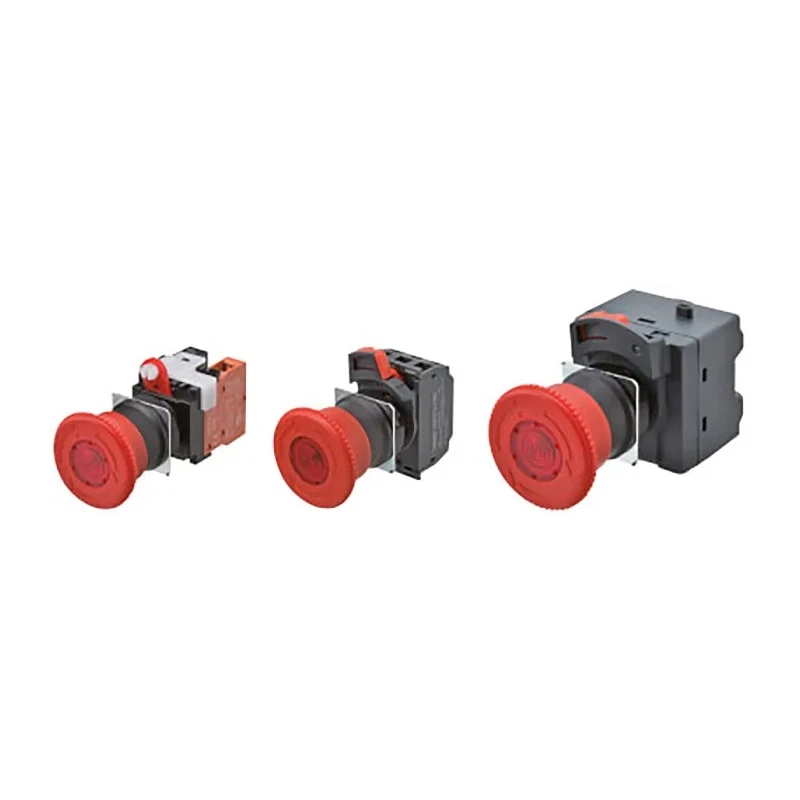

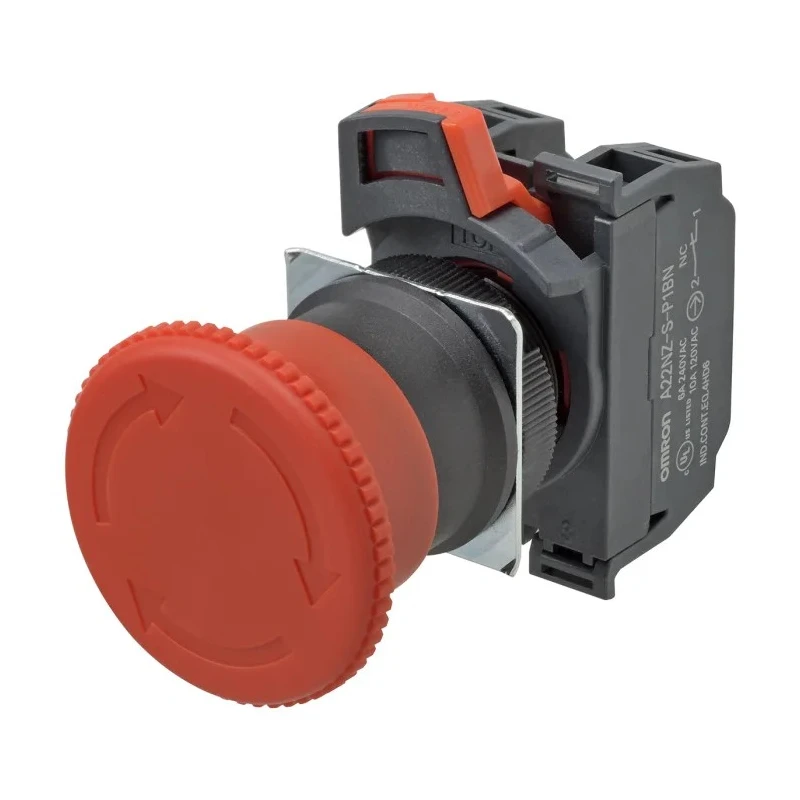

Omron Emergency Stop Push Button Panel Mount 22mm Cutout 2 NO/2 NC IP65 IP69K A22NE-M-PD22-N

Omron A22NE-M-PD22-N Emergency Stop Push Button is a high-quality safety device designed for panel mounting in industrial control environments. Featuring a 22mm cutout diameter and a robust 40mm diameter actuator head, it provides a reliable manual means to rapidly halt machinery operation during emergencies. The turn reset mechanism ensures safety by preventing accidental restarts after engagement, enhancing operator protection.

Equipped with a contact configuration of 2 normally open and 2 normally closed contacts, this push button supports multiple safety circuit architectures by providing redundant connections. The device comes with Push-in Plus terminals, allowing secure, tool-free conductor insertion, which simplifies installation and maintenance.

This model is rated IP65 and IP69K, ensuring ingress protection against dust and high-pressure washdown, making it suitable for harsh industrial and food processing environments needing rigorous cleaning protocols.

The contact DC voltage rating of 250V allows the push button to be used in direct current safety circuits, expanding its applicability in factory automation. It complies with recognized safety standards such as UL1059, CSA C22.2 No.14, TÜV certification (EN60947-5-1 and EN60947-5-5), UL508, CCC (GB14048.5), and UL486E, conforming to stringent industrial requirements.

This emergency stop push button is ideal for safeguarding presses, cutting machinery, and other factory automation lines, providing integration capability with safety relays and control panels. The 87mm depth facilitates appropriate panel installation with secure terminal connection access.

This emergency stop push button allows rapid machine shutdown for increased safety. The robust panel mount design fits 22mm cutout diameter applications. Two normally open and two normally closed contacts provide multi-circuit safety.

Turn reset actuation prevents accidental restarts after activation. The device is rated IP65 and IP69K for high-pressure washdown environments. Push-in Plus terminals enable tool-free, secure conductor insertion. Contact rating of 250V DC supports safety circuit applications.

Large 40mm actuator head for ergonomic operation. Approved to UL, CSA, TÜV, and CCC safety standards.

This product belongs to a comprehensive line of Emergency Stop Push Buttons suitable for a wide range of industrial, manufacturing, food processing, and automation safety applications. Explore EnvMart's selection for reliable industrial safety components.
