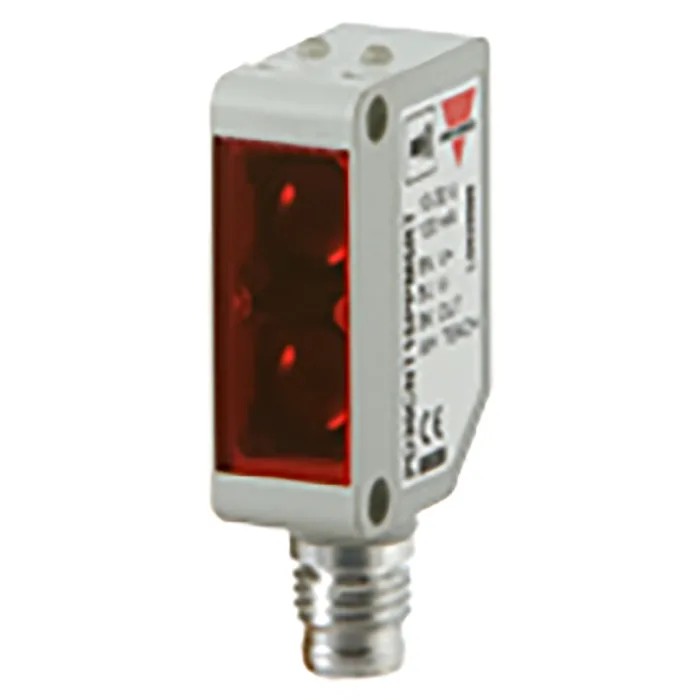

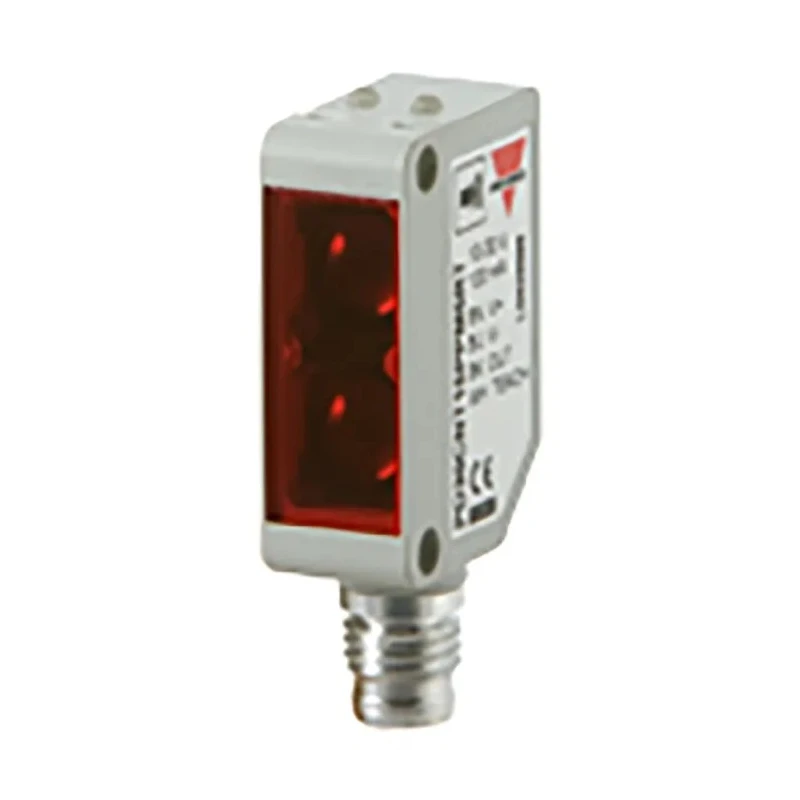

Carlo Gavazzi Through Beam Photoelectric Receiver Miniature Sensor 15 m PNP NO/NC IP67
Specifications
| Country of Origin | Lithuania |
|---|---|
| Output | 100 mA, NPN or PNP preset |
| Brand | Carlo Gavazzi |
| Response time | 1ms |
| Light Source | Infrared LED |
| Detection range | 15 m |
| Model | IP67 |
| IP Rating | IP67 |
| Housing Material | ABS |
| Output type | PNP NO/NC |
| Series | PD30 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 25mA |
| DetectIon Type | Through Beam |
| Terminal type | M8 Connector |
| Protection | Short-circuit, reverse polarity and transients |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CSA, IEC, UL |
| Sensor Style | Miniature |
Key Features
- Compact miniature sensor design measuring 10 x 30 x 20 mm in reinforced PMMA/ABS housing.
- Sensitivity adjustable via potentiometer for flexible application requirements.
- Operational voltage range from 10 to 30 VDC with a maximum current of 25 mA.
- Uses modulated infrared LED light source at 850 nm for reliable detection.
- Output preset to NPN or PNP with make and break switching function.
- Includes LED indicators for output status, power ON, and stability monitoring.
- Protection against short-circuit, reverse polarity, and transient voltages.
- Designed to offer excellent EMC performance in industrial environments.
Product Description
Carlo Gavazzi PD30CNT15PAM5SA is a Through Beam Photoelectric Receiver sensor featuring a miniature form factor with superior performance characteristics. Housed in a compact reinforced PMMA/ABS enclosure of 10 x 30 x 20 mm, this sensor offers a detection range of up to 15 meters, making it ideal for precise object sensing in constrained spaces.
Powered by a modulated infrared LED light source operating at 850 nm, it delivers reliable and repeatable sensing performance. The device supports a supply voltage from 10 to 30 V DC and maximum current draw of 25 mA, facilitating compatibility with common industrial power supplies.
The PD30CNT15PAM5SA outputs PNP type signals with NO and NC functionality preset, and features a potentiometer to adjust sensor sensitivity, allowing adaptability to varied operational conditions. Integrated LED indicators provide clear visibility of output status, power-on condition, and signal stability.
Robust protective features including short-circuit, reverse polarity, and transient voltage protection ensure longevity and reliability in demanding industrial and manufacturing environments. It also offers excellent electromagnetic compatibility (EMC), making it suitable for use in automation systems, control gear assemblies, and production lines.
The sensor has an IP67 rating, confirming its resistance to dust ingress and water immersion, thus ensuring durability in harsh environments. The device is manufactured in Lithuania and conforms to CSA, IEC, and UL standards, ensuring stringent quality and safety compliance.
Compact miniature sensor design measuring 10 x 30 x 20 mm in reinforced PMMA/ABS housing. Sensitivity adjustable via potentiometer for flexible application requirements. Operational voltage range from 10 to 30 VDC with a maximum current of 25 mA.
Uses modulated infrared LED light source at 850 nm for reliable detection. Output preset to NPN or PNP with make and break switching function. Includes LED indicators for output status, power ON, and stability monitoring.
Protection against short-circuit, reverse polarity, and transient voltages. Designed to offer excellent EMC performance in industrial environments. IP67 rating for dust and water protection. Applications include automation, manufacturing, and control systems.
Explore the range of Carlo Gavazzi sensors and discover solutions for your industrial automation needs with EnvMart.
Explore more products in our Photoelectric Sensor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is up to 15 meters, making it suitable for precise object sensing in various applications.
It operates within a voltage range of 10 to 30 VDC, accommodating common industrial power supplies.
This unit provides a PNP output with normally open (NO) and normally closed (NC) functionality preset.
The response time is 1 millisecond, ensuring quick detection and response to objects.
The housing is made from reinforced PMMA/ABS, providing durability and protection in industrial settings.
The maximum operating temperature is 60°C, while the minimum is -25°C, allowing it to function in a wide range of environments.
Yes, it includes protection against short-circuit, reverse polarity, and transient voltages, enhancing its reliability.
It uses a modulated infrared LED light source operating at 850 nm for reliable detection.
The sensor has an IP67 rating, indicating it is resistant to dust ingress and water immersion.
It features an M8 connector terminal type for easy installation and connectivity.
It conforms to CSA, IEC, and UL standards, ensuring quality and safety compliance in its design.
Sensitivity can be adjusted via a potentiometer, allowing for flexible application requirements.
