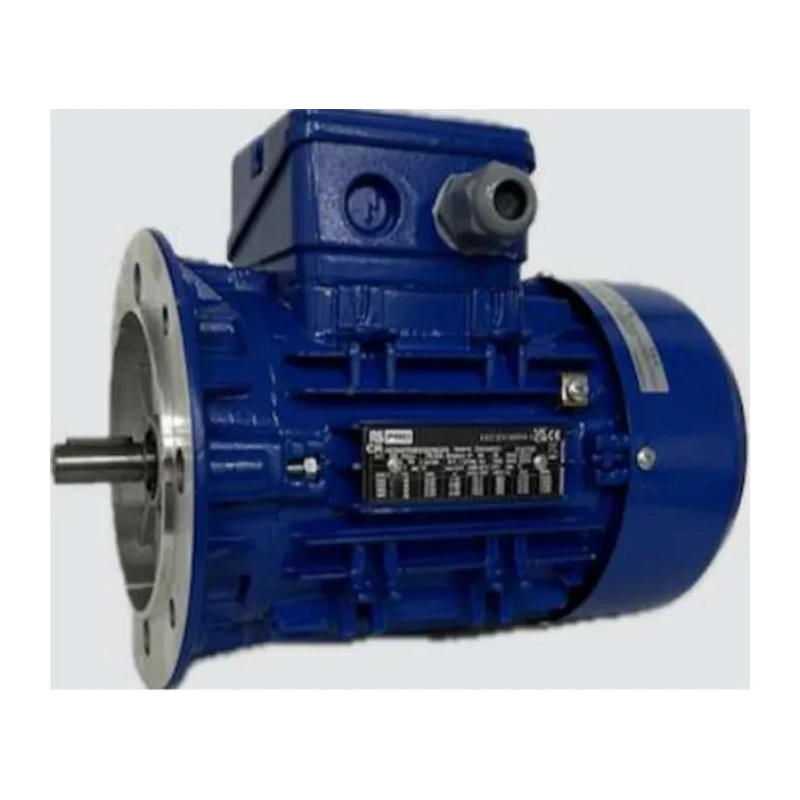

RS PRO 15 kW IE3 Efficiency 3 Phase 4-Pole Aluminium Squirrel Cage AC Motor 400V Flange Mounting AAP160L4A

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 15 kW IE3 Efficiency 3 Phase 4-Pole Aluminium Squirrel Cage AC Motor 400V Flange Mounting AAP160L4A

Name: RS PRO 15 kW IE3 Efficiency 3 Phase 4-Pole Aluminium Squirrel Cage AC Motor 400V Flange Mounting AAP160L4A
Brand: RS PRO
SKU: 102376



Category Electric Motors Brand RS PRO Condition New

Specifications

Country of Origin	Turkey
Brand	RS PRO
Material	Aluminium
Length	300mm
Model	AAP160L4A
Depth	561mm
Width	561mm
Mount Type	Flange
Current Rating	30A
Series	AAP160L4A
Power Rating	15kW
Sub Type	Squirrel Cage Motor
Output Speed	1470rpm
Shaft Diameter	42mm
Shaft Length	110mm
Efficiency Class	IE3
Number of Phases	3
Supply Voltage	400V
Bearing Type	Drive End
Number of Poles	4
Standards/Approvals	RoHS
Maximum Output Torque	97.45Nm

Key Features

This motor features IE3 high efficiency for energy savings and compliance.
Constructed with a durable aluminium frame for lightweight and corrosion resistance.
Rated for 400V supply voltage with 1470 rpm output speed.
Equipped with SKF, FAG, NSK, or NTN C3 shielded bearings for extended life.
Includes oil seals on both ends and two earthing terminals for safety.
Flange mounting type with shaft diameter 42 mm and shaft length 110 mm.
Suitable for applications like pumps, blowers, conveyor belts, and gearboxes.
Manufactured under IEC 60034 standards for quality assurance.

Product Description

RS PRO AAP160L4A is a 15 kW 3 Phase 4-Pole Aluminium Squirrel Cage AC Motor operating at 400V with IE3 efficiency class. This flange mounting industrial motor is engineered for robust and reliable operation in heavy-duty settings.

The aluminium frame construction ensures the motor is lightweight yet corrosion resistant, making it ideal for demanding environments. It operates at an output speed of 1470 rpm and is designed with two earthing terminals for enhanced safety.

Featuring SKF, FAG, NSK, or NTN C3 shielded bearings with oil seals fitted at both ends, this motor offers low maintenance and long service life. The shaft diameter of 42 mm and shaft length of 110 mm support versatile coupling options.

Compliance with IEC 60034 standards guarantees the motor's high quality and reliability. Additionally, inverter rated windings provide excellent performance in variable speed applications.

This motor is supplied with a flange mount configuration for secure installation. Its robust design suits industrial uses such as pumps, blowers, machine tools, conveyor belts, and gearboxes. The motor provides a maximum output torque of 97.45 Nm, ensuring powerful operation.

With 30A current rating, it can handle demanding electrical loads efficiently. Manufactured in Turkey, ensuring quality control and standards adherence. Includes two earthing terminals, oil-sealed ends, and C3 bearing shielding for durability.

RAL7031 rustproof painting at 40 microns minimum protects against environmental damage.

This RS PRO motor series covers frame sizes from 63 to 160, supporting various pole configurations with options for thermistor protection. The NDE shaft is drilled and tapped to facilitate mounting of accessories.

Ideal for industrial, manufacturing, HVAC, and agricultural applications, this motor delivers reliable performance with minimal maintenance requirements. Explore more high-quality industrial Electric Motors and components at EnvMart.
