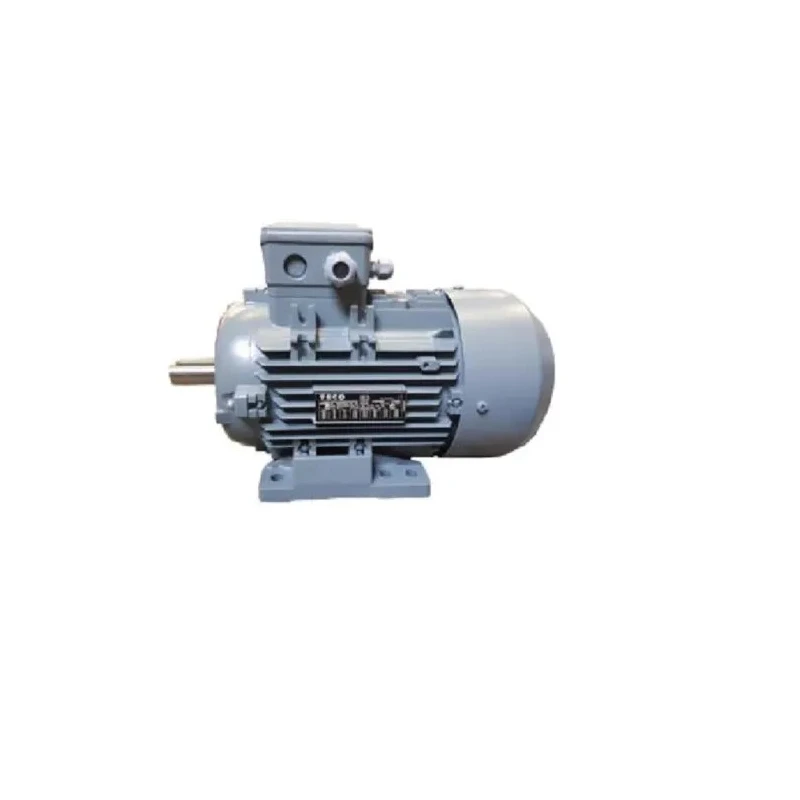

RS PRO AC Motor, 11 kW, IE3 Efficiency, 3 Phase, 2-Pole, 400V, Foot Mounting, Aluminium Frame AAP160M2A
Specifications
| Country of Origin | Turkey |
|---|---|
| Brand | RS PRO |
| Material | Aluminium |
| Length | 553.5mm |
| Model | AAP160M2A |
| Depth | 398mm |
| Width | 398mm |
| Mount Type | Foot |
| Current Rating | 18.5A |
| Series | AAP160M2A |
| Power Rating | 11kW |
| Sub Type | Squirrel Cage Motor |
| Output Speed | 2945rpm |
| Shaft Diameter | 42mm |
| Shaft Length | 110mm |
| Efficiency Class | IE3 |
| Number of Phases | 3 |
| Supply Voltage | 400V |
| Bearing Type | Deep Groove |
| Number of Poles | 2 |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 35.7Nm |
Key Features
- This motor features a robust aluminium frame providing lightweight corrosion resistance.
- Designed with 2 poles for a high output speed of 2945 RPM.
- Operates at 400V supply voltage with a current rating of 18.5A.
- Provides maximum output torque of 35.7 Nm, suitable for industrial applications.
- Manufactured according to IEC 60034 standards with RoHS compliance.
- Equipped with deep groove bearings and C3 bearing shielding for durability.
- Oil seals fitted at both ends ensure reduced maintenance and protection against contaminants.
- NDE shaft drilled and tapped facilitates easy mounting of accessories.
Product Description
RS PRO AAP160M2A is a 3 phase squirrel cage induction AC motor delivering 11 kW power with IE3 efficiency for energy saving and high performance in industrial settings. The motor operates at 400V and 2945 rpm, featuring a 2-pole design with foot mounting, making it ideal for robust mechanical coupling in various machine applications.
Constructed with a lightweight yet durable aluminium frame, this motor exhibits excellent corrosion resistance suitable for harsh environments.
Standard features include two earthing terminals, oil seals on both ends, and deep groove C3 shielded bearings from SKF, FAG, NSK, or NTN manufacturers, enhancing reliability and reducing maintenance needs.
The motor complies with IEC 60034 standards and RoHS directives, ensuring quality and environmental safety. This motor's reinforced bearing housing on DE (drive end) and NDE (non-drive end) provides enhanced mechanical stability.
Inverter rated windings enable flexible speed control applications. NDE shaft drilled and tapped allows easy accessory mounting without extensive modifications. Its robust design supports applications in pumps, blowers, fans, gearboxes, machine tools, and conveyor belts.
RS PRO AAP160M2A is suited for industrial, manufacturing, HVAC, and water treatment sectors requiring reliable and efficient motor solutions.
Choose this motor for a maintenance-friendly, energy-efficient, and high-performance solution in a wide range of industrial automation and control gear applications. Explore more from RS PRO in the Electric Motors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 11 kW.
The output speed is 2945 RPM.
It is equipped with deep groove bearings with C3 shielding.
The motor dimensions are 553.5mm in length, 398mm in depth, and 398mm in width.
The maximum output torque is 35.7 Nm.
This motor has 3 phases.
It has an efficiency class of IE3.
It supports foot mounting.
It is manufactured according to IEC 60034 standards and is RoHS compliant.
The shaft diameter is 42mm.
