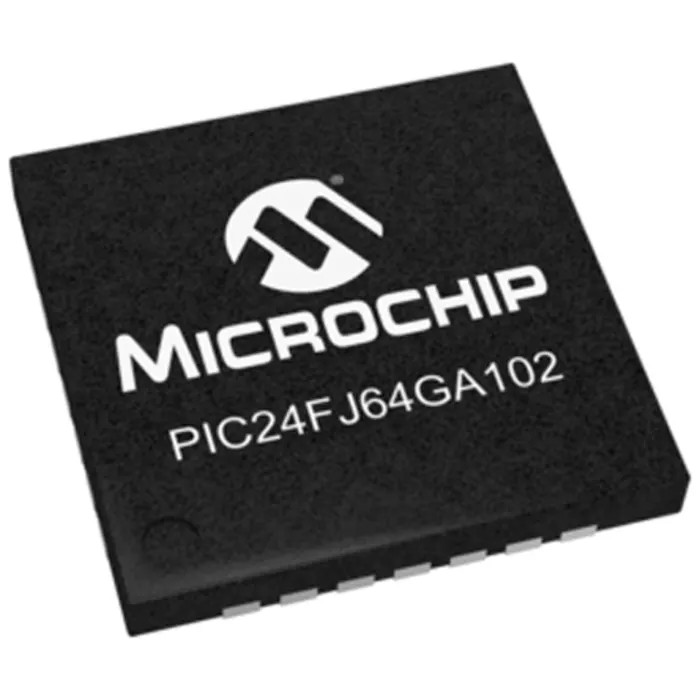

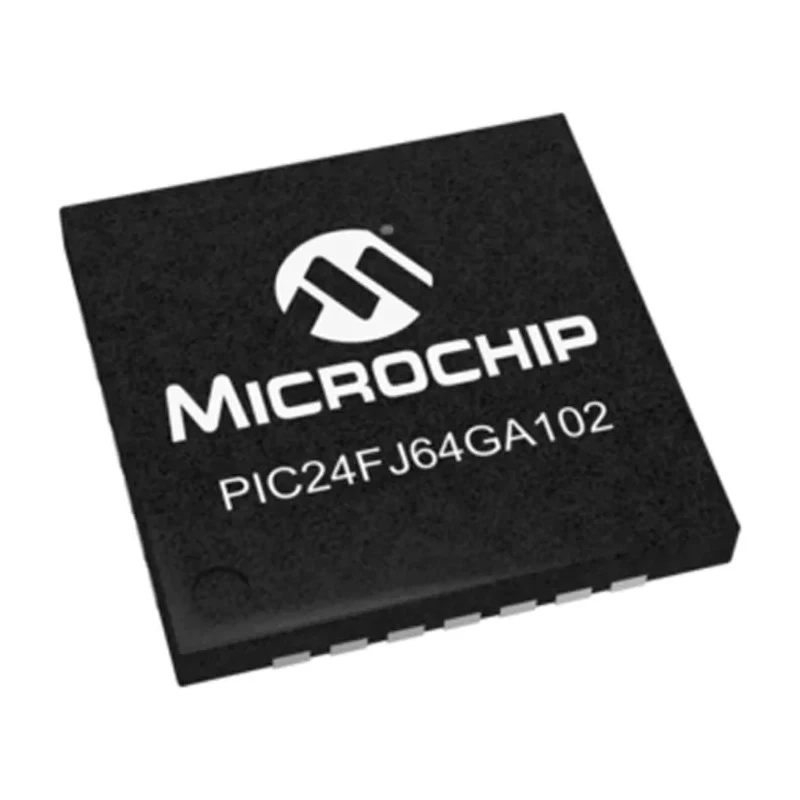

Microchip PIC24FJ64GA102-I/ML 16 bit PIC24FJ Microcontroller 32 MHz 64kB FLASH 28-Pin QFN PIC24FJ64GA102-I/ML
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.95mm |
| Length | 6mm |
| Model | PIC24FJ64GA102-I/ML |
| Width | 6mm |
| Mount Type | Surface |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Pin Count | 28 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 3 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 10 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum clock frequency of 32 MHz with a 16-bit PIC architecture.
- Includes 64kB of FLASH program memory and 8kB RAM for efficient processing.
- Supports operation over voltage range from 2 V to 3.6 V.
- Features 10 analog-to-digital converters with 10-bit resolution and 3 analogue comparators.
- Designed with 5 timers and RISC instruction set architecture for enhanced control.
- Compact 28-pin surface-mount QFN package measuring 6 mm by 6 mm with height of 0.95 mm.
- Operational temperature range from -40°C to 85°C suitable for industrial environments.
- Non-automotive standard device optimized for general embedded control applications.
Product Description
Microchip PIC24FJ64GA102-I/ML is a 16-bit PIC microcontroller tailored for embedded system development, operating at up to 32 MHz. It comes equipped with 64kB of FLASH program memory alongside 8kB of RAM to support sophisticated applications requiring reliable memory and processing speed.
This microcontroller features a 28-pin QFN (Quad Flat No-lead) package designed for surface mounting, measuring 6 mm in length and width and 0.95 mm in height, enabling compact board designs.
Designed with a robust operating voltage range from 2 V to 3.6 V, it ensures stable performance across various power conditions.
The PIC24FJ64GA102-I/ML incorporates 10 independent 10-bit ADC channels and 3 analogue comparators, enabling accurate signal acquisition from analog sources. It includes 5 timers and utilizes a RISC-based instruction set architecture for efficient and fast control processing.
With an operating temperature range from -40°C to 85°C, this microcontroller is suitable for use in demanding industrial and commercial environments where extended temperature tolerances are required.
The device does not hold automotive certification and is primarily intended for general embedded control applications such as industrial automation, consumer electronics, and instrumentation.
Program memory type is non-volatile FLASH, allowing for reliable storage and easy reprogramming of application software during development and deployment. Operates at a maximum clock frequency of 32 MHz with 16-bit core.
Provides 64kB FLASH program memory and 8kB RAM. Features 10 x 10-bit ADCs and 3 analog comparators for precise signal processing. Equipped with 5 timers and RISC architecture. Compact 28-pin QFN surface mount package (6 x 6 x 0.95 mm).
Wide operating voltage 2 V to 3.6 V and temperature range -40°C to 85°C. Suitable for industrial and embedded system applications. Program memory is FLASH type for easy code updates. Explore a wide range of Microcontrollers and embedded solutions at EnvMart to support your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features a program memory size of 64kB, which is of FLASH type for easy code updates.
The operating voltage range for this microcontroller is from 2 V to 3.6 V.
It includes 10 independent 10-bit analog-to-digital converters (ADCs) for precise signal processing.
The QFN package measures 6 mm by 6 mm with a height of 0.95 mm.
This microcontroller operates within a temperature range of -40°C to 85°C, suitable for industrial environments.
It is equipped with 5 timers for enhanced control processing.
It utilizes a RISC (Reduced Instruction Set Computing) instruction set architecture for efficient processing.
This microcontroller has a RAM size of 8kB.
The PIC24FJ64GA102-I/ML features a pin count of 28.
No, this model is a non-automotive standard device optimized for general embedded control applications.
The country of origin for this microcontroller is India.
