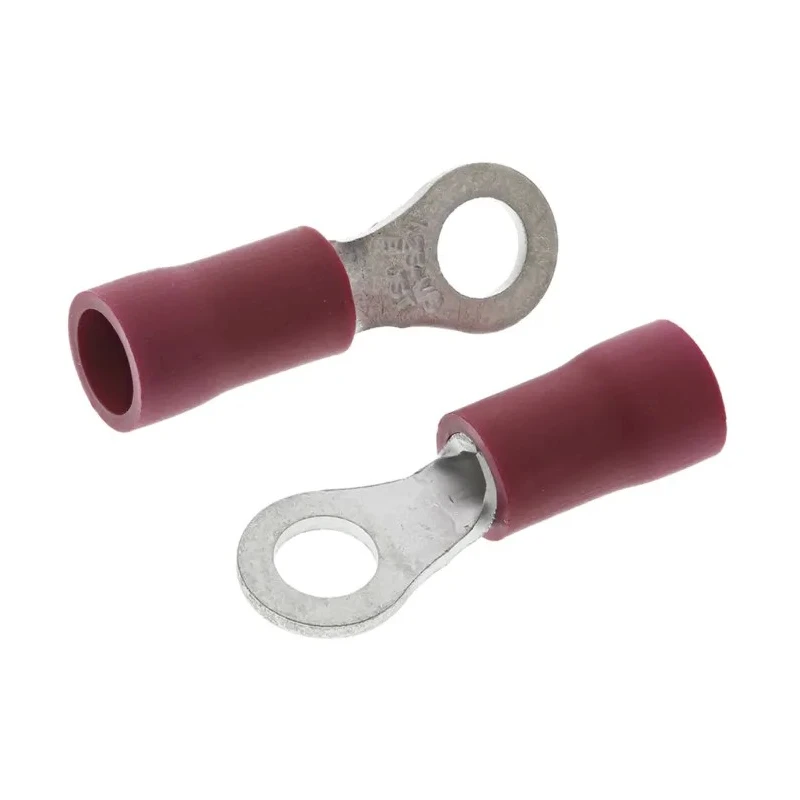

JST FV Insulated Ring Terminal M3 Stud Size with 22 AWG to 16 AWG Wire Size Red FVWS1.25-M3(LF)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Colour | Red |
| THICKNESS | 0.8mm |
| Model | FVWS1.25-M3(LF) |
| Insulation | Insulated |
| Overall Length | 18.6mm |
| Series | FV |
| Insulation Material | Vinyl |
| Standards/Approvals | ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS |
| Minimum Wire Size mm² | 0.25mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 6.6mm |
| Inner Ring Diameter | 3.7mm |
| Stud Size | M3 |
| Standards/ApprovalsANSI/ESD S20.20 | 2021 Electrostatic Control Standard, RoHS |
Key Features
- Constructed from oxygen free copper for excellent electrical conductivity.
- Features vinyl insulation with flared entry design for ease of installation.
- Outer ring diameter of 6.6 mm and inner ring diameter of 3.7 mm.
- Suitable for wire sizes from 22 AWG (0.25 mm²) to 16 AWG (1.65 mm²).
- Overall length of 18.6 mm and thickness of 0.8 mm.
- High temperature resistance up to 105°C for durable operation.
- Red color coding for quick identification of wire gauge.
- Made in Japan ensuring quality manufacturing standards.
Product Description
The JST FVWS1.25-M3(LF) insulated ring terminal is a high-quality electrical connector designed for reliable wire-to-stud connections. It is engineered with oxygen free copper that provides excellent electrical conductivity and resistance to corrosion, ensuring efficient current transfer in electronic and electrical installations.
This terminal features a red vinyl insulation with a flared entry, simplifying wire insertion and crimping operations. Its insulation offers high flame resistance and thermal stability withstanding temperatures up to 105 degrees Celsius, suitable for demanding industrial environments.
With an outer ring diameter of 6.6 mm and inner ring diameter of 3.7 mm, it fits M3 stud sizes perfectly, supporting wire sizes from 22 AWG (0.25 mm²) to 16 AWG (1.65 mm²). The terminal has an overall length of 18.6 mm and a thickness of 0.8 mm, providing durable mechanical strength alongside electrical performance.
This product conforms to ANSI/ESD S20.20:2021 Electrostatic Control Standard and is RoHS compliant, ensuring safe use in electrostatic sensitive applications and adherence to environmental regulations.
Made from oxygen free copper with superior electrical characteristics. Flared vinyl insulation with butted seam design. Suitable for M3 stud and wire sizes 22 AWG to 16 AWG. High temperature resistance and flame retardant properties.
Compliant to ANSI/ESD S20.20:2021 and RoHS directives. Red color for easy identification. Manufactured in Japan for premium quality assurance.
This insulated ring terminal is ideal for use in electronic components assembly, power connectors fabrication, and wiring applications in industrial, commercial, and laboratory settings. For further options, explore the range of ring terminals available at EnvMart to suit various stud and wire size requirements.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated ring terminal supports wire sizes from 22 AWG (0.25 mm²) to 16 AWG (1.65 mm²).
The outer ring diameter is 6.6 mm and the inner ring diameter is 3.7 mm, making it suitable for M3 stud sizes.
The overall length of this terminal is 18.6 mm and its thickness is 0.8 mm.
It is constructed from oxygen free copper, which provides excellent electrical conductivity and corrosion resistance.
It features vinyl insulation with a flared entry design, which simplifies wire insertion and crimping operations.
This model can withstand high temperatures up to 105°C, making it suitable for demanding industrial environments.
It conforms to the ANSI/ESD S20.20:2021 Electrostatic Control Standard and is RoHS compliant.
The terminal is color-coded red for quick identification of the wire gauge.
It is ideal for use in electronic components assembly, power connectors fabrication, and wiring applications in industrial, commercial, and laboratory settings.
The flared vinyl insulation design helps in easy wire insertion and ensures a secure crimping connection.
This terminal is manufactured in Japan, ensuring quality manufacturing standards.
The butted seam design in the insulation enhances the mechanical strength and reliability of the connection.
