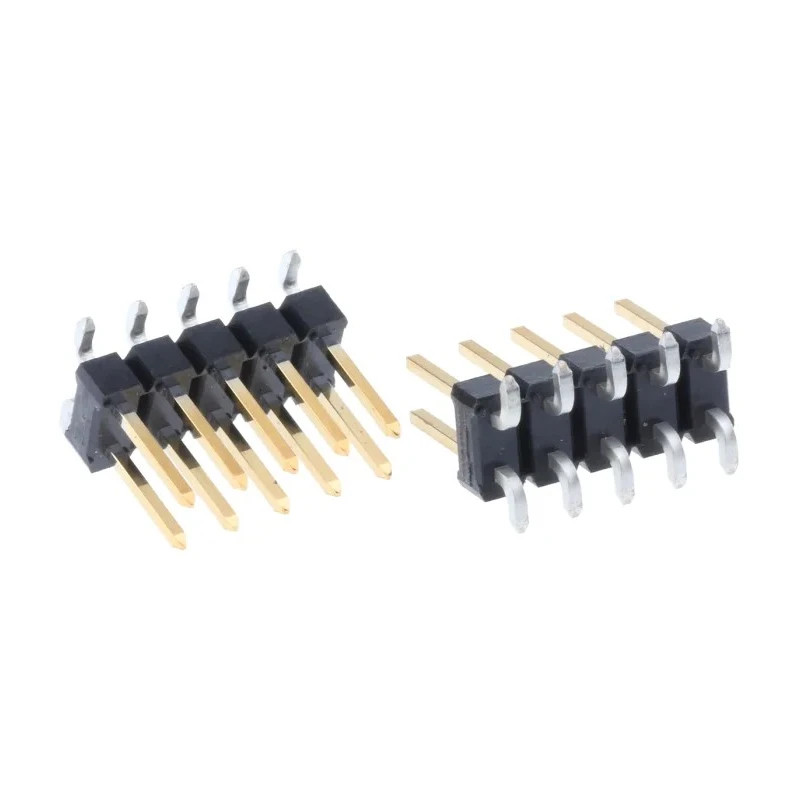

Amphenol Communications Solutions Bergstik Series Straight Surface Pin Header 10 Contacts 2.54 mm Pitch 2 Row 95278-101-10LF

Amphenol Communications Solutions 95278-101-10LF Bergstik Series straight surface pin header is designed for industrial and commercial electronic applications requiring reliable electrical connections. This pin header features 10 contacts arranged in 2 rows with a 2.54 mm pitch, suitable for surface mounting on PCBs. The housing material is a high temperature thermoplastic compatible with reflow solder processes, ensuring excellent mechanical strength and thermal stability.

The contacts are made from phosphor bronze with gold duplex plating, offering cost-effective conductivity and corrosion resistance. Rated for 3 amps current and 1.5 kV voltage, it meets demanding power and signal transmission requirements. Operating temperatures range from -65°C to 125°C, making it suitable for harsh environments.

The unshrouded male contacts with a mating pin length of 5.9 mm provide compatibility with a wide range of female connectors including Dubox, Quickie IDC receptacles, and PV series crimp housings. The design includes stand-offs to eliminate solder contamination, enhancing solder joint quality and reliability.

The Bergstik 2.54 mm PCB Pin Header can be easily cut to length for custom PCB designs, offering flexibility in electronic manufacturing and assembly. It is ideal for board-to-board and wire-to-board interconnections in equipment used across telecommunications, industrial control, instrumentation, and other electronic sectors.

Manufactured in France, this component ensures compliance with high-quality standards and provides an economic solution for versatile PCB connector needs. Constructed with high temperature thermoplastic housing compatible with reflow soldering.

Phosphor bronze contact material with cost-effective gold duplex plating for enhanced conductivity. Supports a current rating of 3A and voltage rating up to 1.5kV for robust electrical performance. Unshrouded straight male contacts with 5.9 mm mating pin length provide versatile connector system options.

Operating temperature range from -65°C to 125°C ensures durability in demanding environments. Can be cut to length to customize for specific PCB applications. Stand-offs on housing allow removal of solder contamination enhancing solder joint quality.

Ideal for use in board-to-board and wire-to-board electronic equipment and devices. Manufactured in France ensuring adherence to high-quality standards.
